BE1000-1 Beml excavator specs & Dimensions (2019 - 2026)

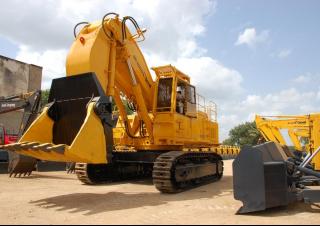

Beml BE1000-1 is a Crawler Excavator manufactured since 2019. It has a weight of 98 tons and a track width of 710 mm. The transpor…

Beml BE1000-1 is a Crawler Excavator manufactured since 2019. It has a weight of 98 tons and a track width of 710 mm. The transport dimensions are 10.715 meters in length, 4.61 meters in width, and 5.77 meters in height. The excavator features a tear-out force of 573.69 kN, a dredging depth of 3.91 meters, and a maximum horizontal reach of 10.95 meters. The bucket capacity ranges from a minimum of 4.5 cubic meters to a maximum of 6.1 cubic meters.

Crawler Excavators Beml BE1000-1

Technical specs - BE1000-1 Beml

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
98 t
Transport length
10.715 m
Transport width
4.61 m
Transport height
5.77 m
Bucket capacity
6.1 m³
Bucket capacity min.
4.5 m³
Bucket capacity max.
6.1 m³
Undercarriage
SL
Track width
710 mm
Max. Reach horizontal
10.95 m
Dredging depth
3.91 m
Tear-out force
573.69 kN
Engine manuf.
Beml
Engine type
BSA6D170EG
Engine power
404 kW
Displacement
23.15 l
No. of cylinders
3
Cylinder bore x stroke
170x170 mm

More technical details, like: boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Beml BE1000-1 FAQ

When was the Beml BE1000-1 manufactured?

The Beml BE1000-1 was first produced in 2019.

How much does the Beml BE1000-1 weigh?

The Beml BE1000-1 weighs 98 tons.

What are the transport dimensions of the Beml BE1000-1 crawler excavator?

The Beml BE1000-1 crawler excavator has a transport length of 10.72 meters, a transport width of 4.61 meters, and a transport height of 5.77 meters.

What are the undercarriage specifications of the Beml BE1000-1?

The Beml BE1000-1 has a standard undercarriage with a track width of 710 mm.

What are the excavation performance specifications of the Beml BE1000-1?

The Beml BE1000-1 has a dredging depth of 3.91 meters and a maximum horizontal reach of 10.95 meters.

What is the tear-out force of the Beml BE1000-1?

The Beml BE1000-1 has a tear-out force of 573.69 kN.

What are the bucket capacity specifications of the Beml BE1000-1 crawler excavator?

The Beml BE1000-1 has a bucket capacity of 6.1 cubic meters, with a maximum capacity of 6.1 cubic meters and a minimum capacity of 4.5 cubic meters.
