195 LC Atlas excavator specs & Dimensions (2024 - 2026)

Weight: 19t – Transport length: 7.9m – Transport width: 2.8m – Transport height: 3m – Bucket capacity: 1.12m³ – Undercarriage: LC…

Weight: 19t – Transport length: 7.9m – Transport width: 2.8m – Transport height: 3m – Bucket capacity: 1.12m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Atlas 195 LC excavator manufactured between 2024 - 2026. Get more in-depth insight with Atlas 195 LC digger specifications. See information, like: Weight: 19t – Transport length: 7.9m – Transport width: 2.8m – Transport height: 3m – Bucket capacity: 1.12m³ – Undercarriage: LC and more.

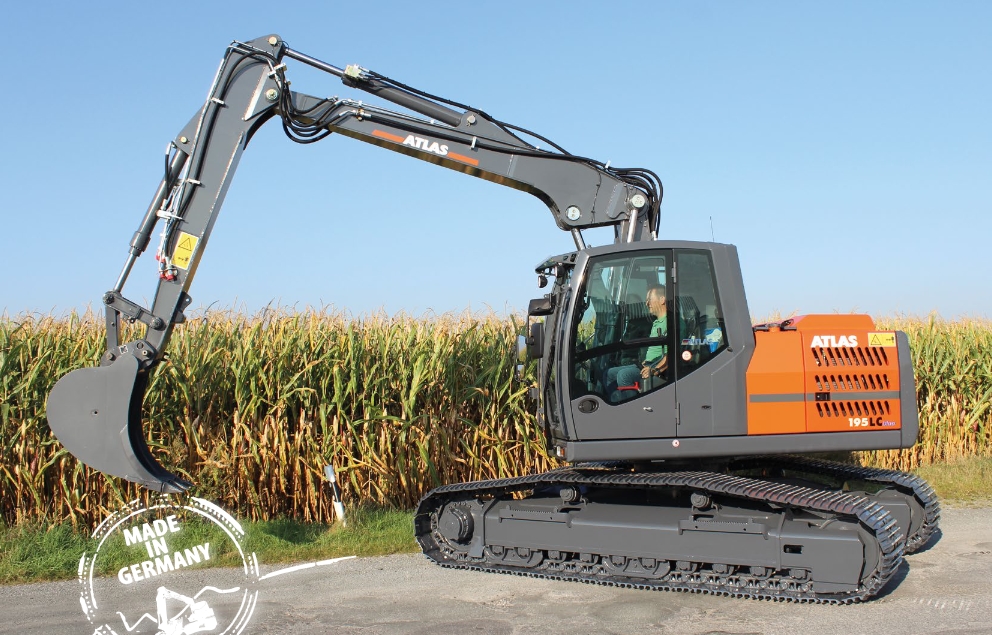

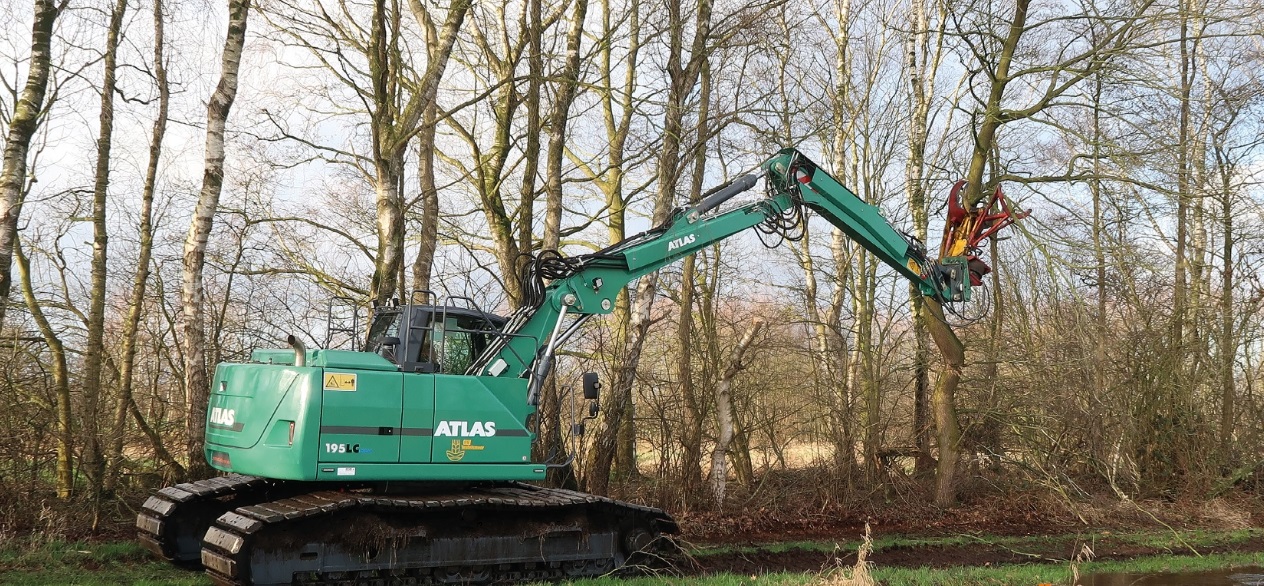

Crawler Excavators Atlas 195 LC
Crawler Excavators Atlas 195 LC
Crawler Excavators Atlas 195 LC
Crawler Excavators Atlas 195 LC

Visit Atlas live at

Technical specs - 195 LC Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19 t
Transport length
7.9 m
Transport width
2.8 m
Transport height
3 m
Bucket capacity
1.12 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
9.75 m
Dredging depth
6.26 m
Tear-out force
72 kN
Bucket width
0.865 m
Engine manuf.
Deutz
Engine type
TCD6.1
Engine power
129 kW
Displacement
6.057 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 195 LC FAQ

When was the Atlas 195 LC manufactured?

The Atlas 195 LC was first produced in 2024.

How much does the Atlas 195 LC weigh?

The Atlas 195 LC weighs 19 tons.

What are the transport dimensions of the Atlas 195 LC crawler excavator?

The Atlas 195 LC crawler excavator has a transport length of 7.9 meters, a transport width of 2.8 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Atlas 195 LC?

The Atlas 195 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Atlas 195 LC?

The Atlas 195 LC has an adjustable boom, a dredging depth of 6.26 meters, and a maximum horizontal reach of 9.75 meters.

What is the tear-out force of the Atlas 195 LC crawler excavator?

The Atlas 195 LC crawler excavator has a tear-out force of 72 kN.

What are the specifications of the primary work tool bucket on the Atlas 195 LC?

The primary work tool bucket of the Atlas 195 LC has a capacity of 1.12 cubic meters and a width of 0.865 meters.

How much is a Atlas 195 LC Crawler excavator (2024u20132025) worth?

The residual value of the Atlas 195 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
