175 LC-SR Atlas excavator specs & Dimensions (2011 - 2021)

Atlas 175 LC-SR is a crawler excavator manufactured from 2011 to 2021. It has a weight of 18.8 tons and a track width of 800 mm. T…

Atlas 175 LC-SR is a crawler excavator manufactured from 2011 to 2021. It has a weight of 18.8 tons and a track width of 800 mm. The transport dimensions are 7.9 meters in length, 3 meters in width, and 3.02 meters in height. The tear-out force is 72 kN. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

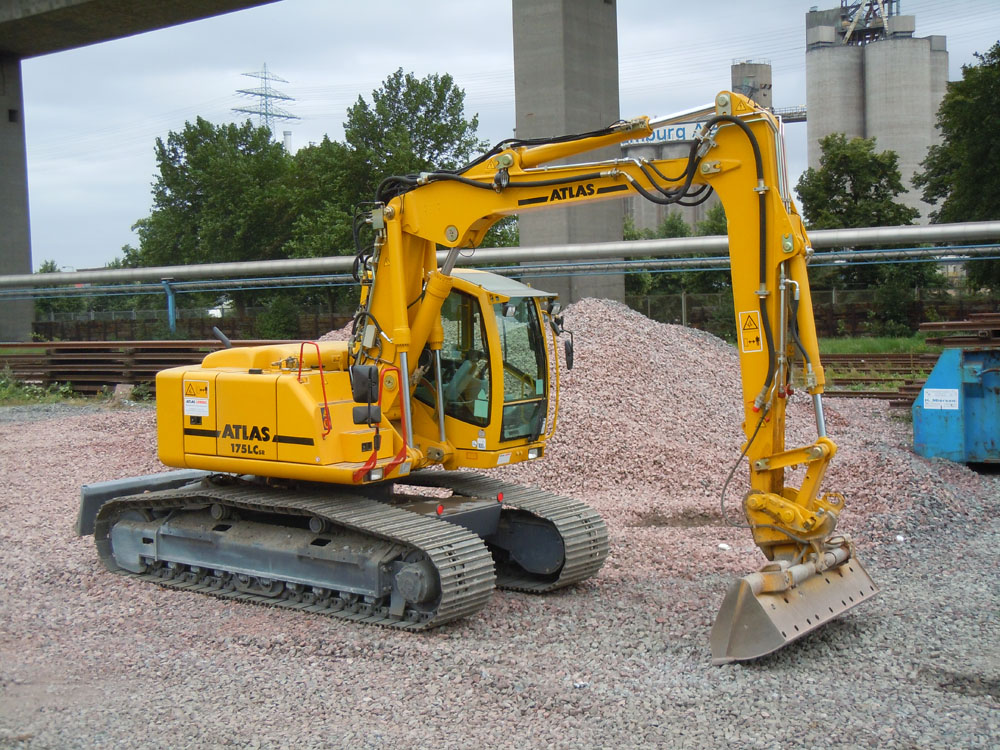

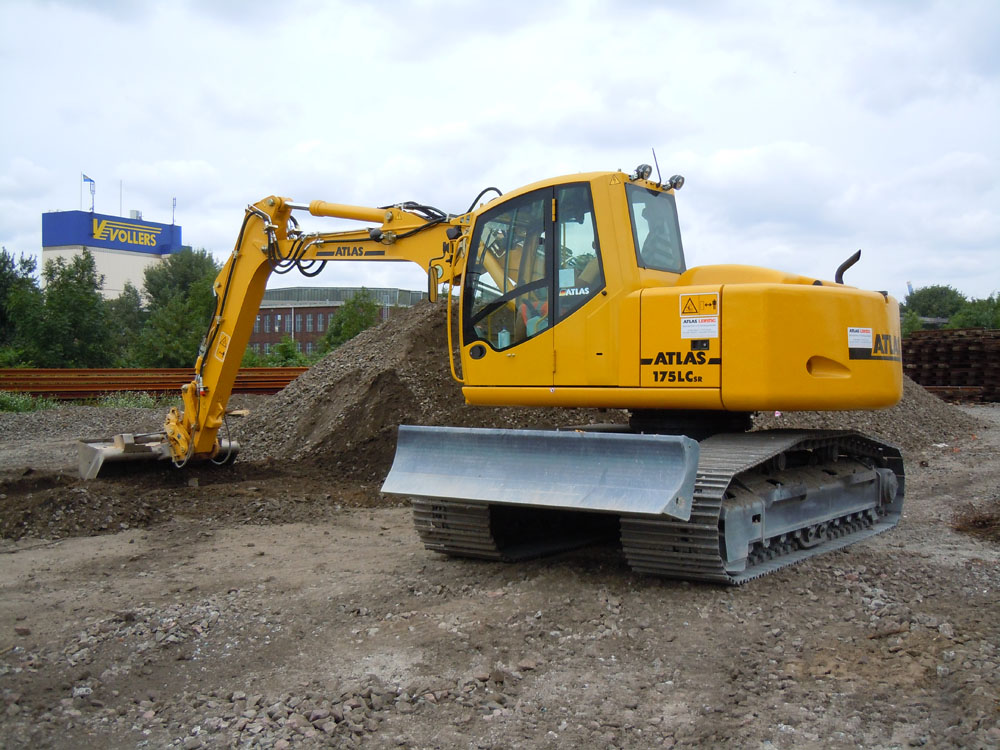

Crawler Excavators Atlas 175 LC-SR
Crawler Excavators Atlas 175 LC-SR
Crawler Excavators Atlas 175 LC-SR
Crawler Excavators Atlas 175 LC-SR

Visit Atlas live at

Technical specs - 175 LC-SR Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.8 t
Transport length
7.9 m
Transport width
3 m
Transport height
3.02 m
Bucket capacity
0.67 m³
Undercarriage
LC
Track width
800 mm
Boom
VA
Max. Reach horizontal
9.3 m
Dredging depth
5.58 m
Tear-out force
72 kN
Bucket width
0.85 m
Engine manuf.
Deutz
Engine type
TCD4.1
Engine power
95 kW
Displacement
4.038 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 175 LC-SR FAQ

When was the Atlas 175 LC-SR manufactured?

The Atlas 175 LC-SR was manufactured from 2011 to 2021.

How much does the Atlas 175 LC-SR weigh?

The Atlas 175 LC-SR weighs 18.8 tons.

What are the transport dimensions of the Atlas 175 LC-SR crawler excavator?

The Atlas 175 LC-SR has transport dimensions of 7.9 meters in length, 3 meters in width, and 3.02 meters in height.

What are the undercarriage specifications of the Atlas 175 LC-SR?

The Atlas 175 LC-SR has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Atlas 175 LC-SR?

The Atlas 175 LC-SR has an adjustable boom, a maximum horizontal reach of 9.3 meters, and a dredging depth of 5.58 meters.

What is the tear-out force of the Atlas 175 LC-SR?

The Atlas 175 LC-SR has a tear-out force of 72 kN.

What are the specifications of the primary work tool bucket on the Atlas 175 LC-SR?

The primary work tool bucket of the Atlas 175 LC-SR has a capacity of 0.67 cubic meters and a width of 0.85 meters.

How much is a Atlas 175 LC-SR Crawler excavator (2011u20132021) worth?

The residual value of the Atlas 175 LC-SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
