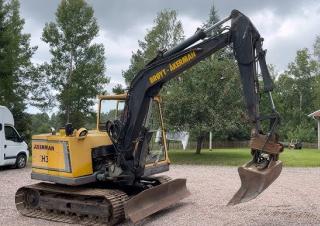

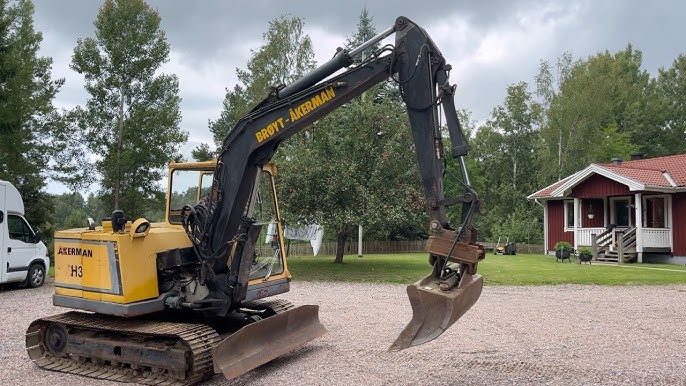

H3B Akerman-Volvo excavator specs & Dimensions (1991 - 1995)

Akerman-Volvo H3B is a crawler excavator manufactured since 1991, with a weight of 8 tons. It features a track width of 500 mm, a …

Akerman-Volvo H3B is a crawler excavator manufactured since 1991, with a weight of 8 tons. It features a track width of 500 mm, a transport length of 5 meters, a transport width of 2 meters, and a transport height of 2 meters. The dredging depth is 4 meters, and the maximum horizontal reach is 7 meters.

Crawler Excavators Akerman-Volvo H3B

Technical specs - H3B Akerman-Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.3 t
Transport length
5.1 m
Transport width
2.3 m
Transport height
2.9 m
Track width
500 mm
Max. Reach horizontal
7.6 m
Dredging depth
4.3 m
Engine manuf.
Volvo Penta
Engine type
TD31ACE
Engine power
49 kW
Displacement
2.4 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Akerman-Volvo H3B FAQ

When was the Akerman-Volvo H3B manufactured?

The Akerman-Volvo H3B was first produced in 1991.

How much does the Akerman-Volvo H3B weigh?

The Akerman-Volvo H3B weighs 8.3 tons.

What are the transport dimensions of the Akerman-Volvo H3B crawler excavator?

The Akerman-Volvo H3B crawler excavator has a transport length of 5.1 meters, a transport width of 2.3 meters, and a transport height of 2.9 meters.

What is the track width of the Akerman-Volvo H3B crawler excavator?

The Akerman-Volvo H3B crawler excavator has a track width of 500 mm.

What are the excavation performance specifications of the Akerman-Volvo H3B?

The Akerman-Volvo H3B has a dredging depth of 4.3 meters and a maximum horizontal reach of 7.6 meters.
