XC770K XCMG XC770K Specifications & Technical Data (2021—2026)

The XCMG XC770K is a skid steer loader manufactured by XCMG since 2021. It has a weight of 3.7 tons and a transport length of 3.75…

The XCMG XC770K is a skid steer loader manufactured by XCMG since 2021. It has a weight of 3.7 tons and a transport length of 3.75 meters. The bucket capacity is 0.6 cubic meters. The transport width is 2 meters and the transport height is 1.96 meters. It has a rated operating capacity of 1250 kilograms.

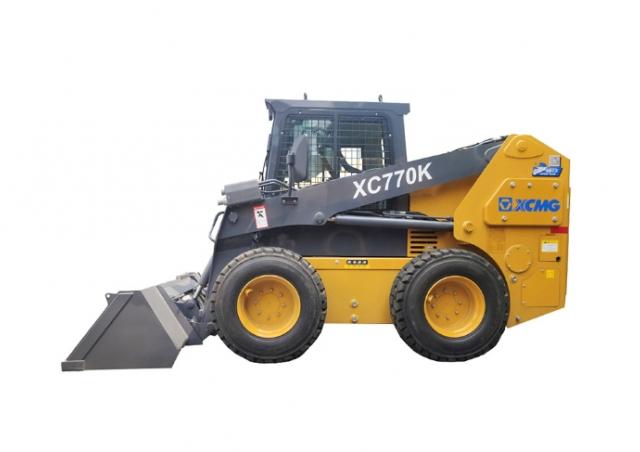

Skid Steer Loaders XCMG XC770K

Visit XCMG live at

Technical specs - XC770K XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.7 t
Rated operating capacity
1250 kg
Standard tyres
12-16.5
Bucket width
2 m
Bucket capacity
0.6 m³
Transport length
3.75 m
Transport width
2 m
Transport height
1.96 m
Travel speed
11 km/h
Max. discharge height
2.45 m
Model series
XC
Engine manuf.
Weichai
Engine type
WP4.1
Engine power
74.9 kW

More technical details, like: track width, driver protection, steering mode, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

XCMG XC770K FAQ

When was the XCMG XC770K skid steer loader first manufactured?

The XCMG XC770K skid steer loader was first produced in 2021.

How much does the XCMG XC770K skid steer loader weigh?

The XCMG XC770K skid steer loader weighs 3.7 tons.

What are the transport dimensions of the XCMG XC770K skid steer loader?

The XCMG XC770K has a transport length of 3.75 meters, a transport width of 2 meters, and a transport height of 1.96 meters.

What is the material handling capacity of the XCMG XC770K skid steer loader?

The XCMG XC770K skid steer loader has a rated operating capacity of 1250 kg.

What is the bucket capacity of the XCMG XC770K skid steer loader?

The XCMG XC770K skid steer loader has a bucket capacity of 0.6 cubic meters.
