60 John Deere Construction 60 Specifications & Technical Data (1978—2021)

The John Deere Construction 60 is a skid steer loader that has been manufactured from 1978 to 2021. It has a weight of 0.942 tons …

The John Deere Construction 60 is a skid steer loader that has been manufactured from 1978 to 2021. It has a weight of 0.942 tons and a transport length of 2.432 meters. The bucket capacity is 0.25 cubic meters with a width of 1.194 meters. The maximum discharge height is 2.419 meters and it has a travel speed of 6.8 km/h. The transport width is 0.902 meters and the transport height is 1.892 meters.

Skid Steer Loaders John Deere Construction 60

Technical specs - 60 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.942 t
Standard tyres
5.70-12
Bucket width
1.194 m
Bucket capacity
0.25 m³
Driver protection
KbR
Transport length
2.432 m
Transport width
0.902 m
Transport height
1.892 m
Travel speed
6.8 km/h
Max. discharge height
2.419 m
Engine manuf.
Kohler
Engine type
KT17
Engine power
12.68 kW
Displacement
0.691 l
Max. torque
40 Nm
No. of cylinders
2

More technical details, like: rated operating capacity, track width, steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

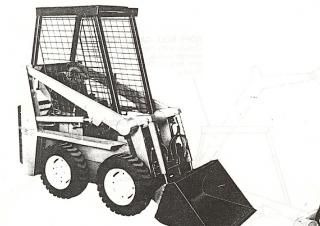

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 60 FAQ

When was the John Deere Construction 60 manufactured?

The John Deere Construction 60 was manufactured from 1978 to 2021.

How much does the John Deere Construction 60 skid steer loader weigh?

The John Deere Construction 60 skid steer loader weighs 0.94 tons.

What are the transport dimensions of the John Deere Construction 60 skid steer loader?

The John Deere Construction 60 skid steer loader has a transport length of 2.43 meters, a transport width of 0.9 meters, and a transport height of 1.89 meters.

What is the travel speed of the John Deere Construction 60 skid steer loader?

The John Deere Construction 60 skid steer loader has a travel speed of 6.8 km/h.

What is the standard tyre size of the John Deere Construction 60 skid steer loader?

The John Deere Construction 60 skid steer loader has standard tyres sized 5.70-12.

What is the maximum discharge height of the John Deere Construction 60?

The John Deere Construction 60 has a maximum discharge height of 2.42 meters.

What are the bucket specifications of the John Deere Construction 60 skid steer loader?

The John Deere Construction 60 skid steer loader has a bucket capacity of 0.25 cubic meters and a bucket width of 1.19 meters.

What operator safety and support features does the John Deere Construction 60 have?

The John Deere Construction 60 is equipped with a cabin that includes ROPS for driver protection.

How much is a John Deere Construction 60 Skid steer loader (1978u20132021) worth?

The residual value of the John Deere Construction 60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
