316GR John Deere Construction 316GR Specifications & Technical Data (2017—2026)

The John Deere Construction 316GR is a skid steer loader manufactured by John Deere Construction since 2017. It has a weight of 2.…

The John Deere Construction 316GR is a skid steer loader manufactured by John Deere Construction since 2017. It has a weight of 2.89 tons and a transport length of 2.63 meters. The maximum discharge height is 2.25 meters, and it has a travel speed of 11 km/h. The transport width is 1.6 meters, and the transport height is 1.96 meters. The lifting force is 21.1 kilonewtons, and the rated operating capacity is 795 kilograms.

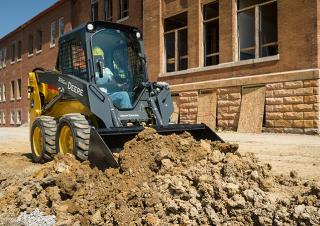

Skid Steer Loaders John Deere Construction 316GR
Skid Steer Loaders John Deere Construction 316GR
Skid Steer Loaders John Deere Construction 316GR
Skid Steer Loaders John Deere Construction 316GR

Technical specs - 316GR John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.89 t
Rated operating capacity
795 kg
Standard tyres
10x16.5
Driver protection
KbR
Transport length
2.63 m
Transport width
1.6 m
Transport height
1.96 m
Travel speed
11 km/h
Max. discharge height
2.25 m
Lifting force
21.1 kN
Model series
G
Engine manuf.
Yanmar
Engine type
4TNV86CHT
Engine power
45.6 kW
Displacement
2.1 l
Revolutions at max torque
1690 rpm
Max. torque
207/1690 Nm
No. of cylinders
4
Emission level
Tier 4f/EU IV

More technical details, like: track width, bucket width, bucket capacity, steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 316GR FAQ

When was the John Deere Construction 316GR manufactured?

The John Deere Construction 316GR was first produced in 2017.

How much does the John Deere Construction 316GR weigh?

The John Deere Construction 316GR weighs 2.89 tons.

What are the transport dimensions of the John Deere Construction 316GR skid steer loader?

The transport dimensions of the John Deere Construction 316GR are 2.63 meters in length, 1.6 meters in width, and 1.96 meters in height.

What is the travel speed of the John Deere Construction 316GR skid steer loader?

The John Deere Construction 316GR has a travel speed of 11 km/h.

What is the standard tyre size of the John Deere Construction 316GR skid steer loader?

The John Deere Construction 316GR skid steer loader has standard tyres sized 10x16.5.

What is the lifting force of the John Deere Construction 316GR skid steer loader, given that no other power ratings are provided?

The John Deere Construction 316GR skid steer loader has a lifting force of 21.1 kN. No other power ratings are provided in the available data.

What is the material handling capacity of the John Deere Construction 316GR skid steer loader?

The John Deere Construction 316GR has a rated operating capacity of 795 kg and a maximum discharge height of 2.25 meters.

What operator safety features does the John Deere Construction 316GR skid steer loader have?

The John Deere Construction 316GR skid steer loader features a cabin with ROPS for driver protection.

How much is a John Deere Construction 316GR Skid steer loader (2017u20132025) worth?

The residual value of the John Deere Construction 316GR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
