242D Caterpillar 242D Specifications & Technical Data (2013—2020)

Model rating
10,00 / 10

The Caterpillar 242D is a skid steer loader manufactured from 2013 to 2020. It has a weight of 3.17 tons and a transport length of…

The Caterpillar 242D is a skid steer loader manufactured from 2013 to 2020. It has a weight of 3.17 tons and a transport length of 3.49 meters. The bucket capacity is 0.36 cubic meters with a width of 1.52 meters. The maximum discharge height is 2.28 meters. The transport width is 1.68 meters and the transport height is 2.11 meters. It has a lifting force of 22.38 kilonewtons and a rated operating capacity of 975 kilograms.

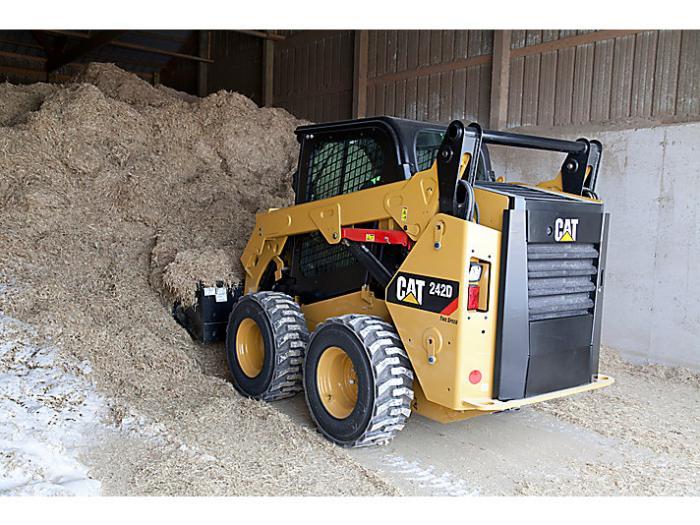

Skid Steer Loaders Caterpillar 242D
Skid Steer Loaders Caterpillar 242D
Skid Steer Loaders Caterpillar 242D
Skid Steer Loaders Caterpillar 242D

Technical specs - 242D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.17 t
Rated operating capacity
975 kg
Standard tyres
12x16.5
Bucket width
1.52 m
Bucket capacity
0.36 m³
Driver protection
Ü
Steering mode
AL
Transport length
3.49 m
Transport width
1.68 m
Transport height
2.11 m
Travel speed
18.5 km/h
Max. discharge height
2.28 m
Lifting force
22.38 kN
Engine manuf.
Caterpillar
Engine type
C3.3B DIT
Engine power
54.6 kW
Displacement
3.3 l
Max. torque
257 Nm
Cylinder bore x stroke
94x120 mm
Emission level
Tier 4 f

More technical details, like: track width, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, platform, security system available...

More technical details, like: track width, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, platform, security system available, engine manufacturer, engine model, emission rating, aspiration, engine output - net, engine output - gross, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - bucket, pump type, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 242D FAQ

When was the Caterpillar 242D manufactured?

The Caterpillar 242D was manufactured from 2013 to 2020.

How much does the Caterpillar 242D skid steer loader weigh?

The Caterpillar 242D skid steer loader weighs 3.17 tons.

What are the transport dimensions of the Caterpillar 242D skid steer loader?

The Caterpillar 242D skid steer loader has a transport length of 3.49 meters, a transport width of 1.68 meters, and a transport height of 2.11 meters.

What is the travel speed of the Caterpillar 242D skid steer loader?

The Caterpillar 242D skid steer loader has a travel speed of 18.5 km/h.

What are the undercarriage specifications of the Caterpillar 242D skid steer loader?

The Caterpillar 242D skid steer loader is equipped with standard tyres sized 12x16.5.

What is the steering mode of the Caterpillar 242D skid steer loader?

The Caterpillar 242D skid steer loader features all-wheel steering.

What is the lifting force of the Caterpillar 242D skid steer loader, and is there any power rating data available?

The Caterpillar 242D skid steer loader has a lifting force of 22.38 kN. No power rating data is available for this model.

What is the material handling capacity of the Caterpillar 242D skid steer loader?

The Caterpillar 242D skid steer loader has a rated operating capacity of 975 kilograms and a maximum discharge height of 2.28 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 242D skid steer loader?

The primary work tool bucket of the Caterpillar 242D has a capacity of 0.36 cubic meters and a width of 1.52 meters.

What operator safety and support features does the Caterpillar 242D have?

The Caterpillar 242D is equipped with a roll-over bar for driver protection.
