TSR 50 Terex TSR 50 Specifications & Technical Data (2011—2017)

The Terex TSR 50 is a skid steer loader manufactured by Terex from 2011 to 2017. It has a weight of 2.94 tons and a transport leng…

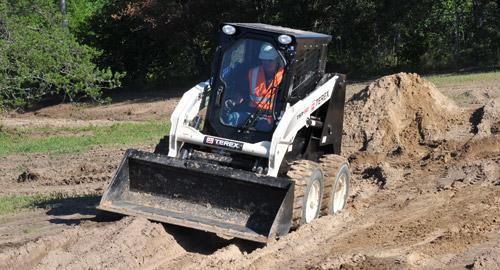

The Terex TSR 50 is a skid steer loader manufactured by Terex from 2011 to 2017. It has a weight of 2.94 tons and a transport length of 3.47 meters. The bucket width is 1.52 meters, and it has a maximum discharge height of 2.21 meters. The transport width is 1.68 meters, and the transport height is 1.96 meters. The rated operating capacity of this construction machine is 680 kilograms.

Skid Steer Loaders Terex TSR 50
Skid Steer Loaders Terex TSR 50
Skid Steer Loaders Terex TSR 50
Skid Steer Loaders Terex TSR 50
Skid Steer Loaders Terex TSR 50
Skid Steer Loaders Terex TSR 50

Technical specs - TSR 50 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.94 t
Rated operating capacity
680 kg
Standard tyres
10x16.5
Bucket width
1.52 m
Transport length
3.47 m
Transport width
1.68 m
Transport height
1.96 m
Travel speed
11.9 km/h
Max. discharge height
2.21 m
Model series
TSR
Engine manuf.
Perkins
Engine type
404D-22
Engine power
36.3 kW
Displacement
2.2 l
Revolutions at max torque
2800 rpm
No. of cylinders
4
Emission level
IIIA

More technical details, like: track width, bucket capacity, driver protection, steering mode, lifting force, dimension lxwxh, max. torque, cylinder bore x stroke, lift geometry, access, engine manufacturer, engine model...

More technical details, like: track width, bucket capacity, driver protection, steering mode, lifting force, dimension lxwxh, max. torque, cylinder bore x stroke, lift geometry, access, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, hydraulic power, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Terex TSR 50 FAQ

When was the Terex TSR 50 manufactured?

The Terex TSR 50 was manufactured from 2011 to 2017.

How much does the Terex TSR 50 skid steer loader weigh?

The Terex TSR 50 skid steer loader weighs 2.94 tons.

What are the transport dimensions of the Terex TSR 50 skid steer loader?

The Terex TSR 50 has a transport length of 3.47 meters, a transport width of 1.68 meters, and a transport height of 1.96 meters.

What is the travel speed of the Terex TSR 50 skid steer loader?

The Terex TSR 50 has a travel speed of 11.9 km/h.

What is the standard tyre size of the Terex TSR 50 skid steer loader's undercarriage?

The standard tyre size of the Terex TSR 50 skid steer loader's undercarriage is 10x16.5.

What is the material handling capacity of the Terex TSR 50 skid steer loader?

The Terex TSR 50 skid steer loader has a rated operating capacity of 680 kilograms.

What is the bucket width of the Terex TSR 50 skid steer loader?

The bucket width of the Terex TSR 50 skid steer loader is 1.52 meters.

How much is a Terex TSR 50 Skid steer loader (2011u20132017) worth?

The residual value of the Terex TSR 50 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
