TL 12 V2 Takeuchi TL 12 V2 Specifications & Technical Data (2016—2026)

The Takeuchi TL 12 V2 is a skid steer loader manufactured since 2016. It has a weight of 5.91 tons and a transport length of 3.2 m…

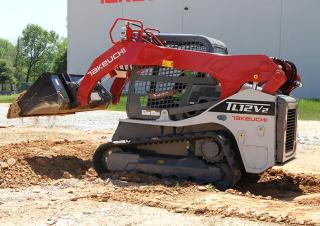

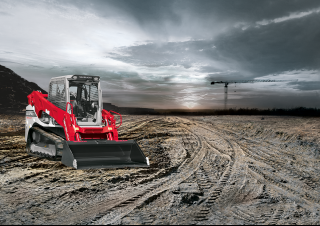

The Takeuchi TL 12 V2 is a skid steer loader manufactured since 2016. It has a weight of 5.91 tons and a transport length of 3.2 meters. The bucket capacity is 0.59 cubic meters with a width of 2 meters. The maximum discharge height is 4.33 meters and it has a travel speed of 11 km/h. The transport width is 1.96 meters and the transport height is 2.33 meters. The track width is 450 mm. The rated operating capacity is 1865 kg. It is equipped with a diesel particulate filter.

Skid Steer Loaders Takeuchi TL 12 V2
Skid Steer Loaders Takeuchi TL 12 V2
Skid Steer Loaders Takeuchi TL 12 V2
Skid Steer Loaders Takeuchi TL 12 V2
Skid Steer Loaders Takeuchi TL 12 V2
Skid Steer Loaders Takeuchi TL 12 V2

Technical specs - TL 12 V2 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.98 t
Rated operating capacity
1865 kg
Track width
450 mm
Bucket width
2 m
Bucket capacity
0.59 m³
Driver protection
KbR
Transport length
3.2 m
Transport width
1.96 m
Transport height
2.33 m
Travel speed
11 km/h
Max. discharge height
4.33 m
Model series
TL
Engine manuf.
Kubota
Engine type
V3800CR
Engine power
78.2 kW
Displacement
3.8 l
Revolutions at max torque
1500 rpm
Max. torque
379 Nm
Emission level
Tier 4/stage IV

More technical details, like: standard tyres, steering mode, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke, undercarriage type, lift geometry, access, suspension seat, telematics available, platform...

More technical details, like: standard tyres, steering mode, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke, undercarriage type, lift geometry, access, suspension seat, telematics available, platform, security system available, engine manufacturer, engine model, emission rating, number of cylinders, after treatment system, after treatment system 2, after treatment system 3, aspiration, rated speed, engine output - gross, rated speed - torque, torque, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
Yes
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Takeuchi TL 12 V2 FAQ

When was the Takeuchi TL 12 V2 manufactured?

The Takeuchi TL 12 V2 was first produced in 2016.

How much does the Takeuchi TL 12 V2 skid steer loader weigh?

The Takeuchi TL 12 V2 skid steer loader weighs 5.98 tons.

What are the transport dimensions of the Takeuchi TL 12 V2 skid steer loader?

The Takeuchi TL 12 V2 has a transport length of 3.2 meters, a transport width of 1.96 meters, and a transport height of 2.33 meters.

What is the travel speed of the Takeuchi TL 12 V2 skid steer loader?

The Takeuchi TL 12 V2 has a travel speed of 11 km/h.

What is the track width of the Takeuchi TL 12 V2 skid steer loader?

The Takeuchi TL 12 V2 skid steer loader has a track width of 450 mm.

What is the material handling capacity of the Takeuchi TL 12 V2 skid steer loader?

The Takeuchi TL 12 V2 has a rated operating capacity of 1865 kg and a maximum discharge height of 4.33 meters.

What are the specifications of the primary work tool bucket on the Takeuchi TL 12 V2?

The primary work tool bucket of the Takeuchi TL 12 V2 has a capacity of 0.59 cubic meters and a width of 2 meters.

What operator safety features does the Takeuchi TL 12 V2 have?

The Takeuchi TL 12 V2 has driver protection in the form of a cabin with ROPS.

How much is a Takeuchi TL 12 V2 Skid steer loader (2016u20132025) worth?

The residual value of the Takeuchi TL 12 V2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
