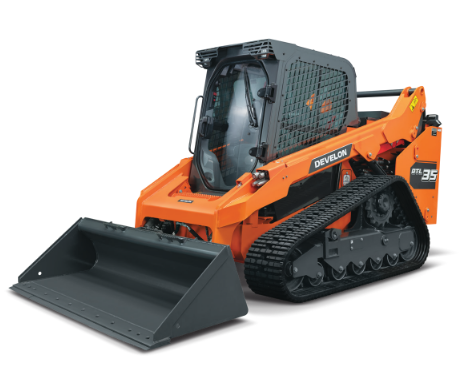

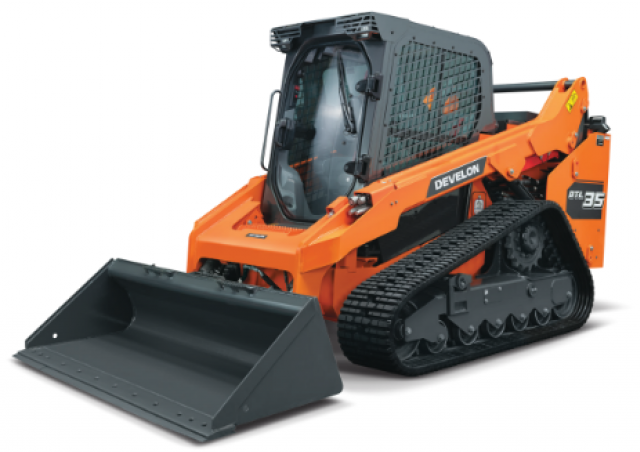

DTL35 Develon DTL35 Specifications & Technical Data (2024—2026)

Weight: 5.799t – Rated operating capacity: 1.727kg – Track width: 400mm – Bucket width: 2.032m – Driver protection: Kb – Transport length: 3.372m

Skid Steer Loaders Develon DTL35

Visit Develon live at

Technical specs - DTL35 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.799 t
Rated operating capacity
1.727 kg
Track width
400 mm
Bucket width
2.032 m
Driver protection
Kb
Transport length
3.372 m
Transport width
1.951 m
Transport height
2.133 m
Travel speed
14.8 km/h
Max. discharge height
2.457 m
Model series
DTL
Engine manuf.
Develon
Engine type
D34
Engine power
86 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
460 Nm
No. of cylinders
4
Cylinder bore x stroke
98x113 mm
Emission level
Tier 4f

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
