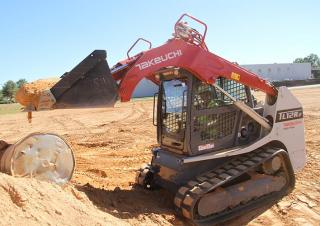

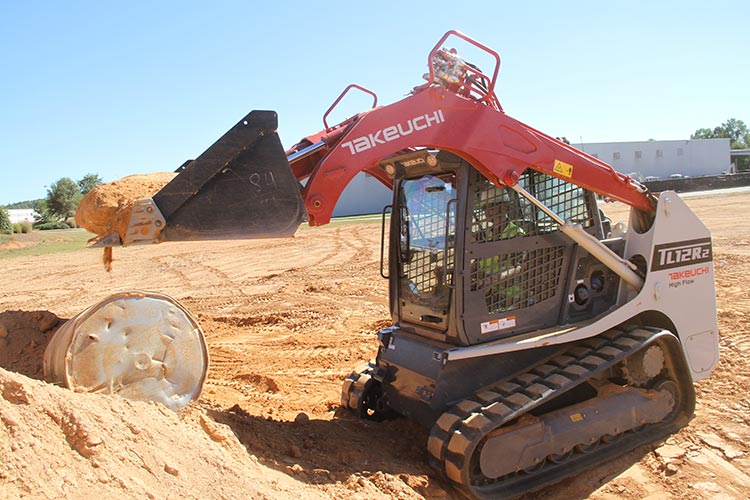

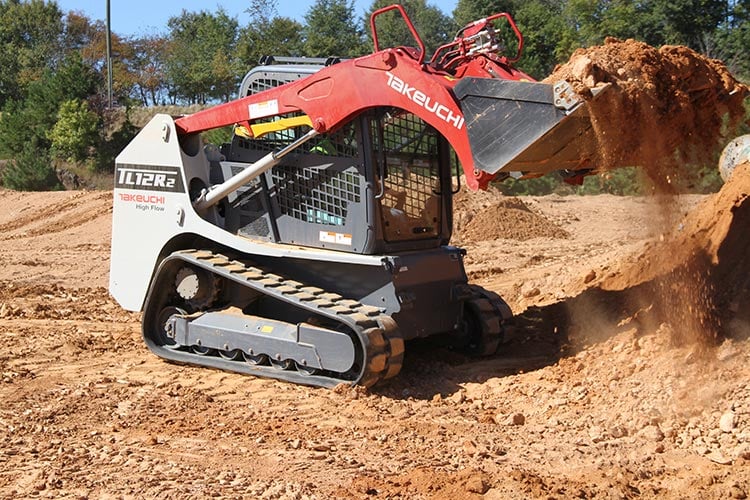

    Technical specs - TL 12 R2 Takeuchi

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 5.58 t
    Rated operating capacity 1350 kg
    Track width 450 mm
    Bucket width 2.03 m
    Driver protection Kb
    Transport length 4.045 m
    Transport width 1.96 m
    Transport height 2.33 m
    Travel speed 11.8 km/h
    Max. discharge height 3.3 m
    Engine manuf. Kubota
    Engine type V3800T-IF4B-Turbo Intercooled
    Displacement 3.8 l
    Revolutions at max torque 1500 rpm
    Max. torque 379 Nm
    Emission level Tier 4/stage IV
    Standard tyres ###
    Bucket capacity ###
    Steering mode ###
    Lifting force ###
    Dimension lxwxh ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###

    Basic model with ROPS cabin and std. shovel with teeth

    TL 12 R2 Takeuchi - Special equipment

    • Diesel particulate filter
    • LPG motor
    • Burglar proof system
