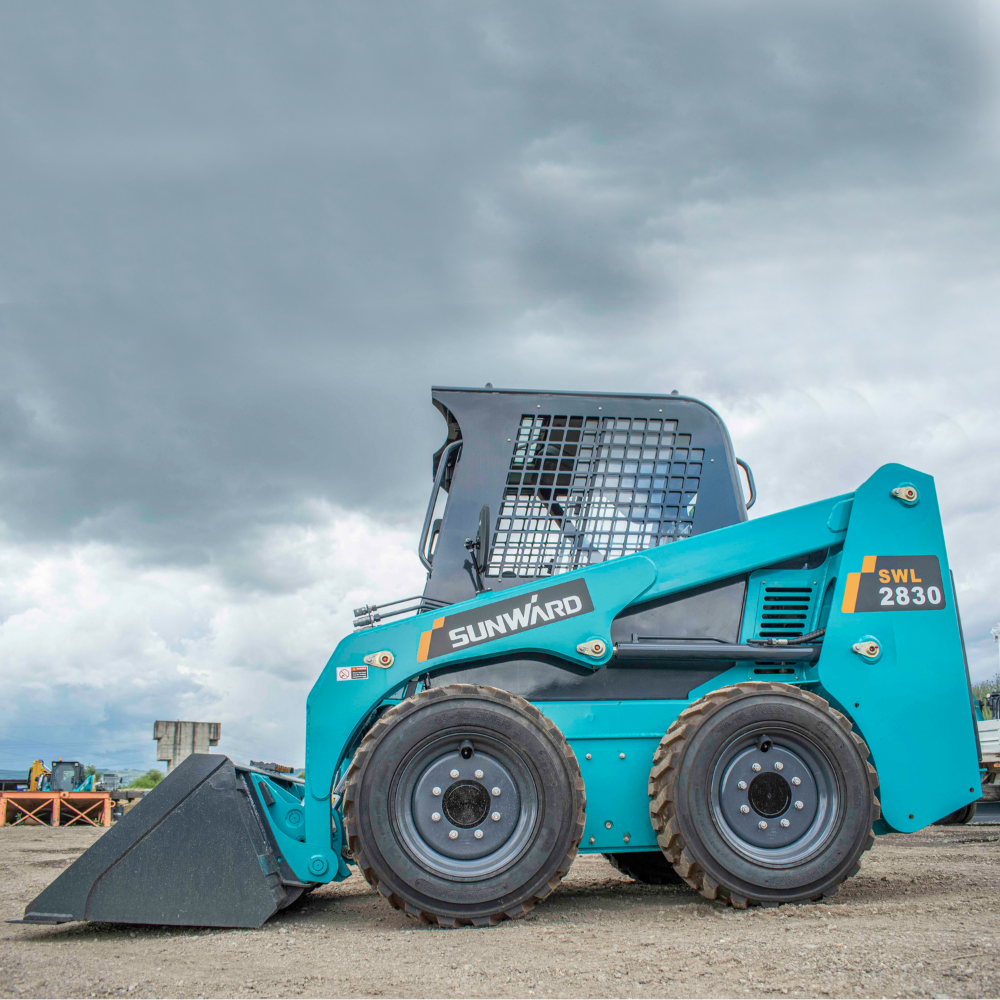

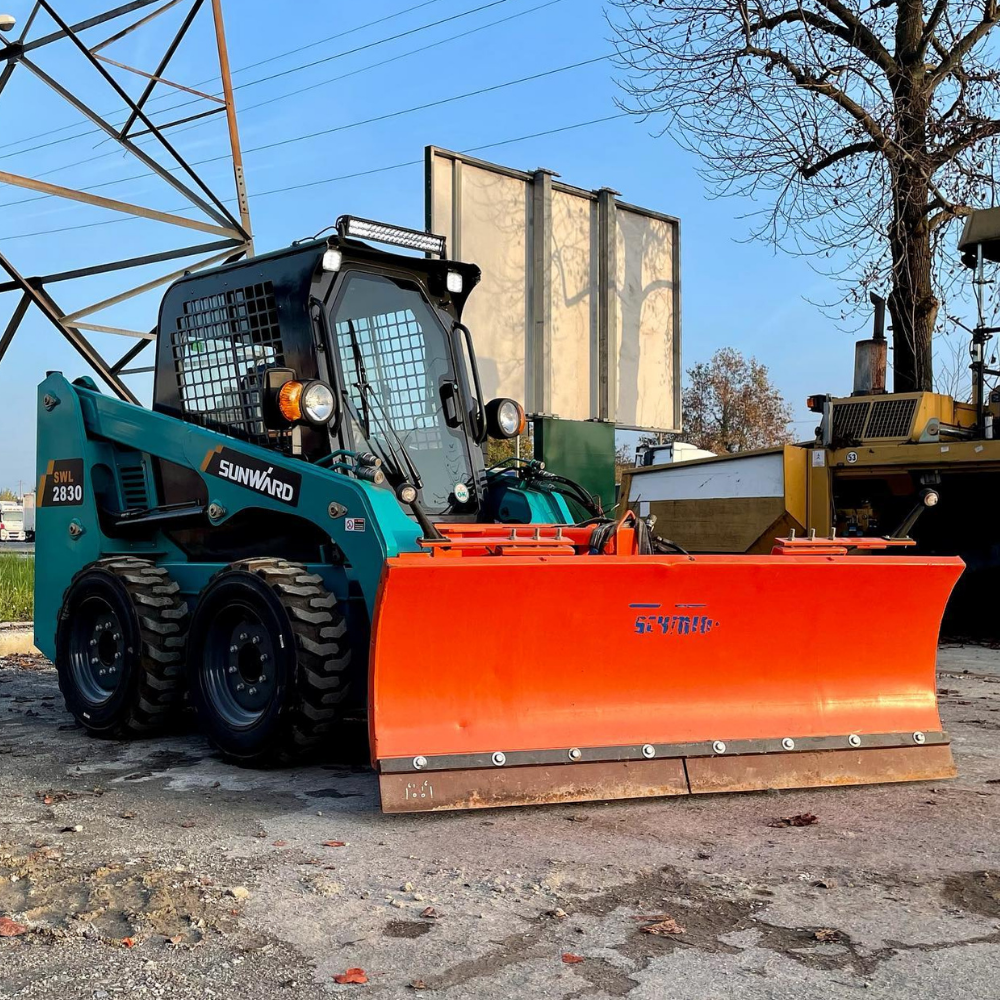

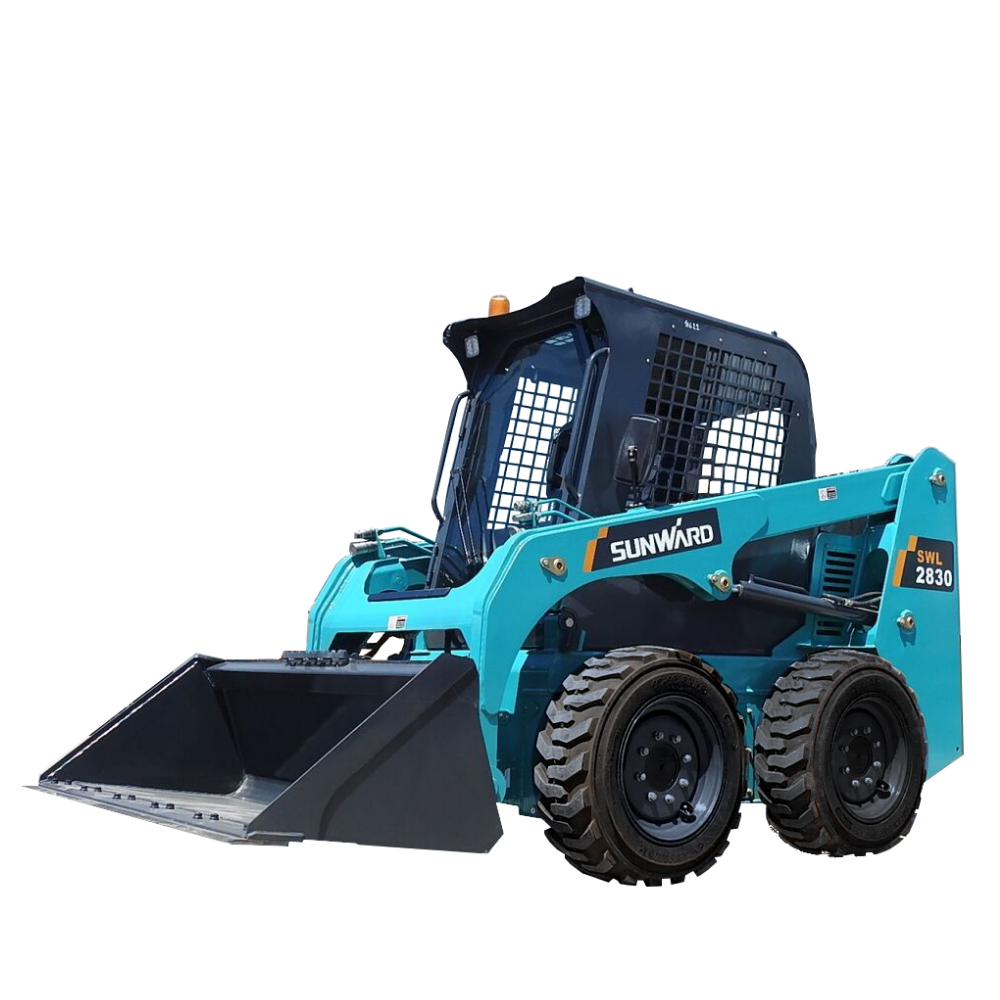

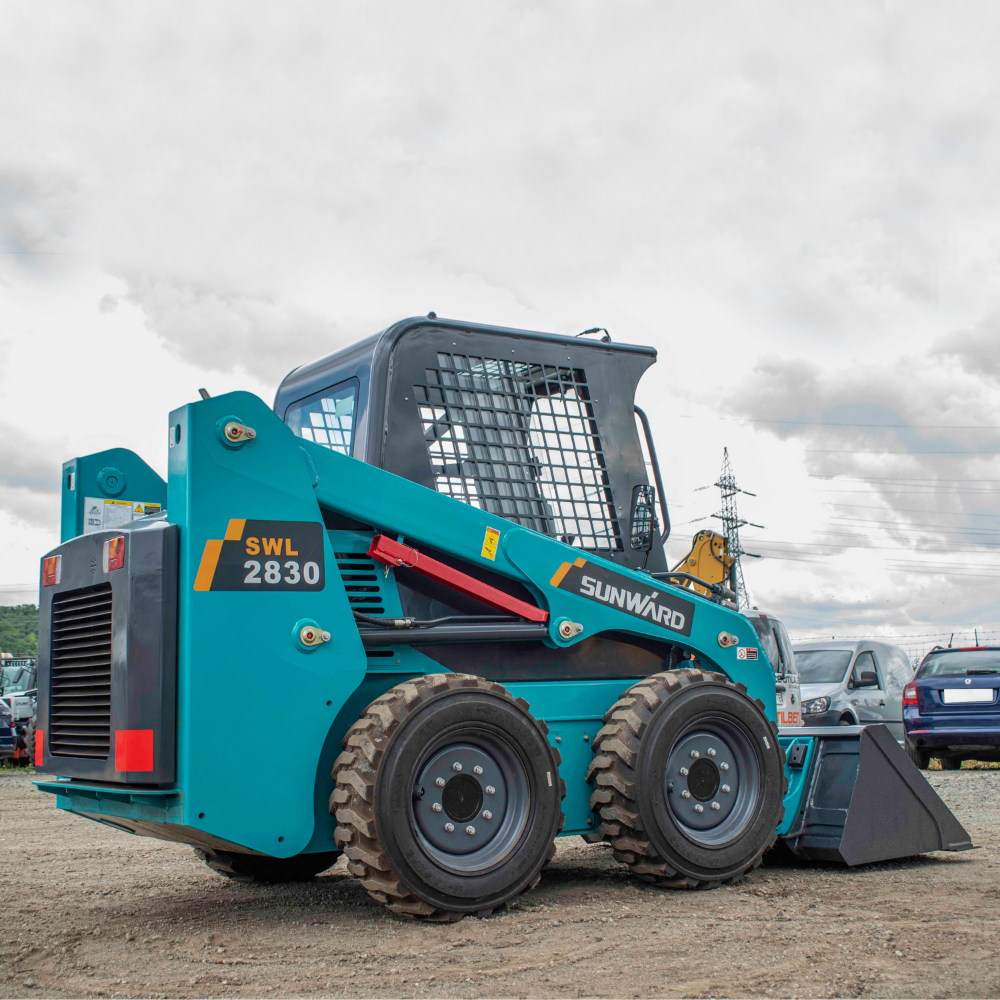

Sunward SWL2830
- Weight:
- 2.83 t
- Rated operating capacity:
- 750 kg
- Bucket width:
- 1.6 m
- Driver protection:
- Kb
SWL2830 Sunward SWL2830 Specifications & Technical Data (2026—2026)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Technical specs - SWL2830 Sunward
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.83 t
- Rated operating capacity
- 750 kg
- Bucket width
- 1.6 m
- Driver protection
- Kb
- Steering mode
- PL
- Transport length
- 3.307 m
- Transport width
- 1.6 m
- Transport height
- 2.014 m
- Travel speed
- 13 km/h
- Max. discharge height
- 2.32 m
- Model series
- SWL
- Engine manuf.
- Kubota
- Engine type
- V2403-CR-TE4B
- Engine power
- 47.9 kW
- Revolutions at max torque
- 2700 rpm
- Max. torque
- 198,5/1600 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: track width, standard tyres, bucket capacity, lifting force, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
