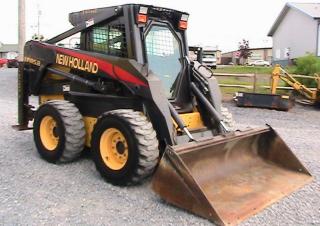

LS 185 B New Holland LS 185 B Specifications & Technical Data (2006—2007)

The New Holland LS 185 B is a skid steer loader manufactured by New Holland from 2006 to 2007. It has a weight of 3.22 tons and a …

The New Holland LS 185 B is a skid steer loader manufactured by New Holland from 2006 to 2007. It has a weight of 3.22 tons and a transport length of 3.52 meters. The bucket capacity is 0.6 cubic meters, with a maximum discharge height of 2.5 meters. It has a travel speed of 18 km/h, with a transport width of 1.83 meters and a transport height of 1.98 meters. The lifting force is 26.8 kilonewtons, and the rated operating capacity is 1133 kilograms.

Skid Steer Loaders New Holland LS 185 B

Technical specs - LS 185 B New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.22 t
Rated operating capacity
1133 kg
Bucket capacity
0.6 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.52 m
Transport width
1.83 m
Transport height
1.98 m
Travel speed
18 km/h
Max. discharge height
2.5 m
Lifting force
26.8 kN
Model series
LS
Engine manuf.
CNH
Engine type
F4CE0354A
Engine power
79 kW

More technical details, like: track width, standard tyres, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access...

More technical details, like: track width, standard tyres, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

New Holland LS 185 B FAQ

When was the New Holland LS 185 B manufactured?

The New Holland LS 185 B was manufactured from 2006 to 2007.

How much does the New Holland LS 185 B weigh?

The New Holland LS 185 B weighs 3.22 tons.

What are the transport dimensions of the New Holland LS 185 B skid steer loader?

The New Holland LS 185 B has a transport length of 3.52 meters, a transport width of 1.83 meters, and a transport height of 1.98 meters.

What is the travel speed of the New Holland LS 185 B skid steer loader?

The New Holland LS 185 B has a travel speed of 18 km/h.

What is the steering mode of the New Holland LS 185 B skid steer loader?

The New Holland LS 185 B skid steer loader has tank steering.

What is the power rating of the New Holland LS 185 B skid steer loader?

The power rating of the New Holland LS 185 B skid steer loader is not provided in the available data.

What is the material handling capacity of the New Holland LS 185 B skid steer loader?

The New Holland LS 185 B has a rated operating capacity of 1133 kg and a maximum discharge height of 2.5 meters.

What is the bucket capacity of the New Holland LS 185 B skid steer loader?

The bucket capacity of the New Holland LS 185 B skid steer loader is 0.6 cubic meters.

What operator safety and support features does the New Holland LS 185 B have?

The New Holland LS 185 B is equipped with a cabin that includes ROPS for driver protection.
