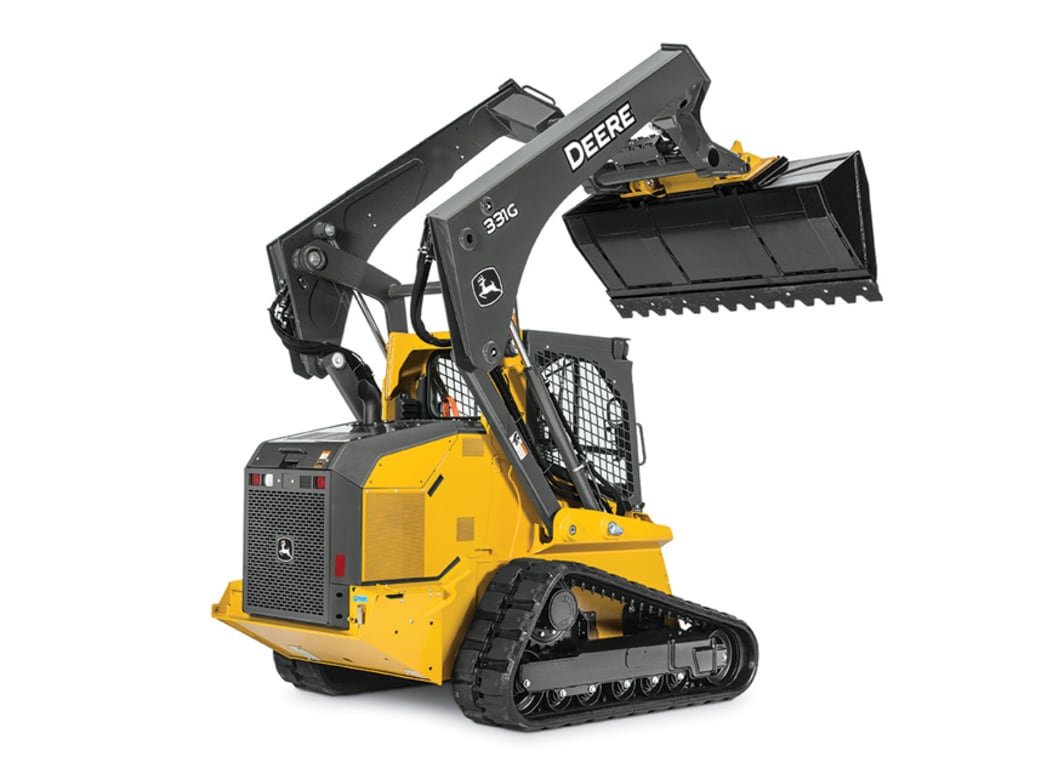

331G John Deere Construction 331G Specifications & Technical Data (2015—2026)

The John Deere Construction 331G is a skid steer loader manufactured by John Deere Construction since 2015. It has a weight of 5.4…

The John Deere Construction 331G is a skid steer loader manufactured by John Deere Construction since 2015. It has a weight of 5.4 tons and a transport length of 3.1 meters. The maximum discharge height is 2.69 meters, and it has a travel speed of 12.6 km/h. The transport width is 2 meters, and the transport height is 2.2 meters. The lifting force is 31.1 kilonewtons, and the track width is 400 millimeters. The rated operating capacity is 1407 kilograms.

Skid Steer Loaders John Deere Construction 331G

Technical specs - 331G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.4 t
Rated operating capacity
1407 kg
Track width
400 mm
Driver protection
KbR
Transport length
3.1 m
Transport width
2 m
Transport height
2.2 m
Travel speed
12.6 km/h
Max. discharge height
2.69 m
Lifting force
31.1 kN
Model series
G
Engine manuf.
Yanmar
Engine type
4TNV94CHT
Engine power
66 kW
Displacement
3.1 l
Revolutions at max torque
1700 rpm
Max. torque
382/1700 Nm
No. of cylinders
4
Emission level
Tier 4i/EU IIIA

More technical details, like: standard tyres, bucket width, bucket capacity, steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 331G FAQ

When was the John Deere Construction 331G manufactured?

The John Deere Construction 331G was first produced in 2015.

How much does the John Deere Construction 331G skid steer loader weigh?

The John Deere Construction 331G skid steer loader weighs 5.4 tons.

What are the transport dimensions of the John Deere Construction 331G skid steer loader?

The John Deere Construction 331G has a transport length of 3.1 meters, a transport width of 2 meters, and a transport height of 2.2 meters.

What is the travel speed of the John Deere Construction 331G skid steer loader?

The John Deere Construction 331G has a travel speed of 12.6 km/h.

What is the track width of the John Deere Construction 331G skid steer loader?

The John Deere Construction 331G skid steer loader has a track width of 400 mm.

What are the power ratings of the John Deere Construction 331G skid steer loader?

The source data does not provide power rating information for the John Deere Construction 331G skid steer loader.

What is the material handling capacity of the John Deere Construction 331G skid steer loader?

The John Deere Construction 331G skid steer loader has a rated operating capacity of 1407 kg and a maximum discharge height of 2.69 meters.

What operator safety and support features does the John Deere Construction 331G have?

The John Deere Construction 331G is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.
