328D John Deere Construction 328D Specifications & Technical Data (2009—2013)

The John Deere Construction 328D is a skid steer loader manufactured from 2009 to 2013. It has a weight of 3.814 tons and a transp…

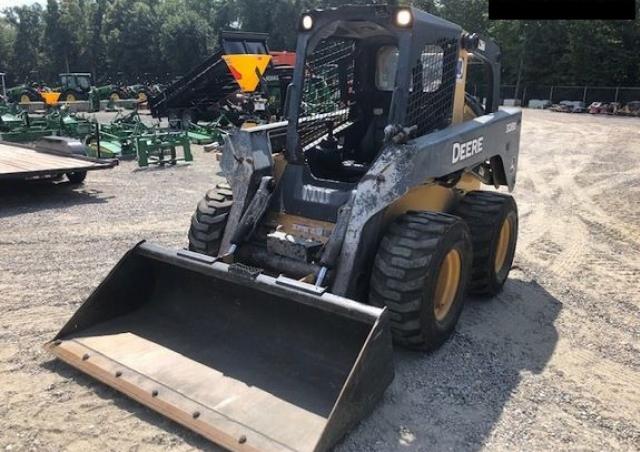

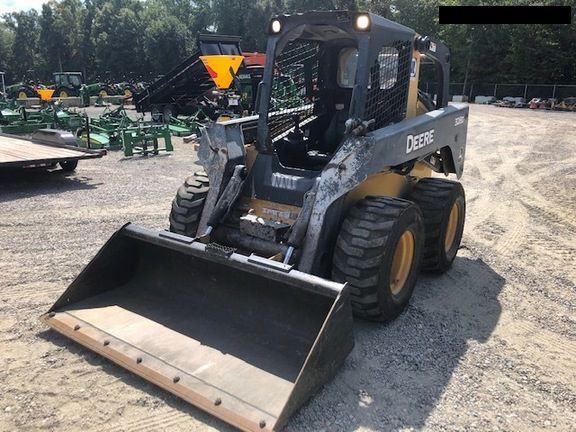

The John Deere Construction 328D is a skid steer loader manufactured from 2009 to 2013. It has a weight of 3.814 tons and a transport length of 3.6 meters. The maximum discharge height is 3.22 meters and it can travel at a speed of 19.3 km/h. The transport width is 1.95 meters and the transport height is 2.15 meters.

Skid Steer Loaders John Deere Construction 328D

Technical specs - 328D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.814 t
Standard tyres
14x17.5 12 PR
Driver protection
KbR
Transport length
3.6 m
Transport width
1.95 m
Transport height
2.15 m
Travel speed
19.3 km/h
Max. discharge height
3.22 m
Model series
D
Engine manuf.
John Deere
Engine type
E5030HT
Engine power
59.6 kW
Displacement
3 l
Max. torque
300 Nm
No. of cylinders
5
Emission level
Tier 4 i

More technical details, like: rated operating capacity, track width, bucket width, bucket capacity, steering mode, lifting force, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

John Deere Construction 328D FAQ

When was the John Deere Construction 328D manufactured?

The John Deere Construction 328D was manufactured from 2009 to 2013.

How much does the John Deere Construction 328D skid steer loader weigh?

The John Deere Construction 328D skid steer loader weighs 3.81 tons.

What are the transport dimensions of the John Deere Construction 328D skid steer loader?

The John Deere Construction 328D has a transport length of 3.6 meters, a transport width of 1.95 meters, and a transport height of 2.15 meters.

What is the travel speed of the John Deere Construction 328D skid steer loader?

The John Deere Construction 328D skid steer loader has a travel speed of 19.3 km/h.

What are the undercarriage tyre specifications of the John Deere Construction 328D skid steer loader?

The John Deere Construction 328D skid steer loader is equipped with standard tyres sized 14x17.5 12 PR.

What is the maximum discharge height of the John Deere Construction 328D?

The John Deere Construction 328D has a maximum discharge height of 3.22 meters.

What operator safety and support features does the John Deere Construction 328D skid steer loader have?

The John Deere Construction 328D skid steer loader features a cabin with ROPS for driver protection.
