320E John Deere Construction 320E Specifications & Technical Data (2014—2017)

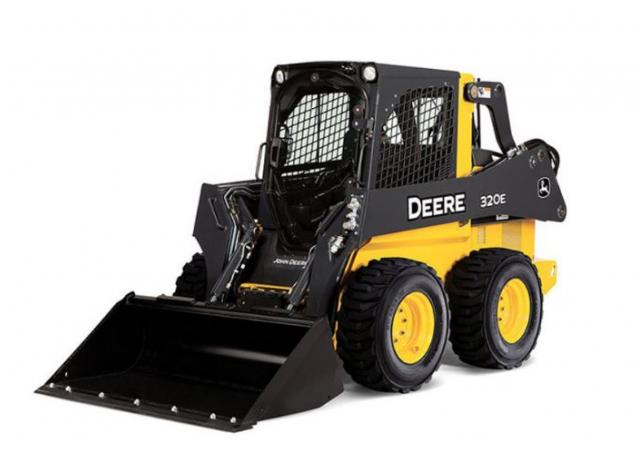

The John Deere Construction 320E is a skid steer loader manufactured by John Deere Construction from 2014 to 2017. It has a weight…

The John Deere Construction 320E is a skid steer loader manufactured by John Deere Construction from 2014 to 2017. It has a weight of 3.246 tons and a transport length of 2.85 meters. The maximum discharge height is 2.46 meters, and it has a travel speed of 17.9 km/h. The transport width is 1.76 meters, and the transport height is 2.02 meters. The rated operating capacity is 1067 kilograms, and it is equipped with a diesel particulate filter.

Skid Steer Loaders John Deere Construction 320E

Technical specs - 320E John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.246 t
Rated operating capacity
1067 kg
Transport length
2.85 m
Transport width
1.76 m
Transport height
2.02 m
Travel speed
17.9 km/h
Max. discharge height
2.46 m
Engine manuf.
Yanmar
Engine type
4TNV98C
Engine power
49.4 kW
Displacement
3.319 l
Revolutions at max torque
2500 rpm
Max. torque
241/1625 Nm
No. of cylinders
4
Emission level
Tier 4f/EU IV

More technical details, like: track width, standard tyres, bucket width, bucket capacity, driver protection, steering mode, lifting force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
Yes
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 320E FAQ

When was the John Deere Construction 320E manufactured?

The John Deere Construction 320E was manufactured from 2014 to 2017.

How much does the John Deere Construction 320E skid steer loader weigh?

The John Deere Construction 320E skid steer loader weighs 3.25 tons.

What are the transport dimensions of the John Deere Construction 320E skid steer loader?

The John Deere Construction 320E has a transport length of 2.85 meters, a transport width of 1.76 meters, and a transport height of 2.02 meters.

What is the travel speed of the John Deere Construction 320E skid steer loader?

The John Deere Construction 320E has a travel speed of 17.9 km/h.

What is the material handling capacity of the John Deere Construction 320E skid steer loader?

The John Deere Construction 320E has a rated operating capacity of 1067 kg and a maximum discharge height of 2.46 meters.
