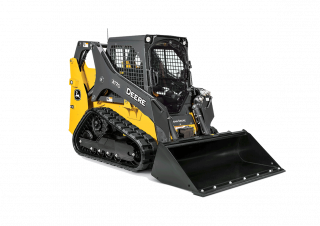

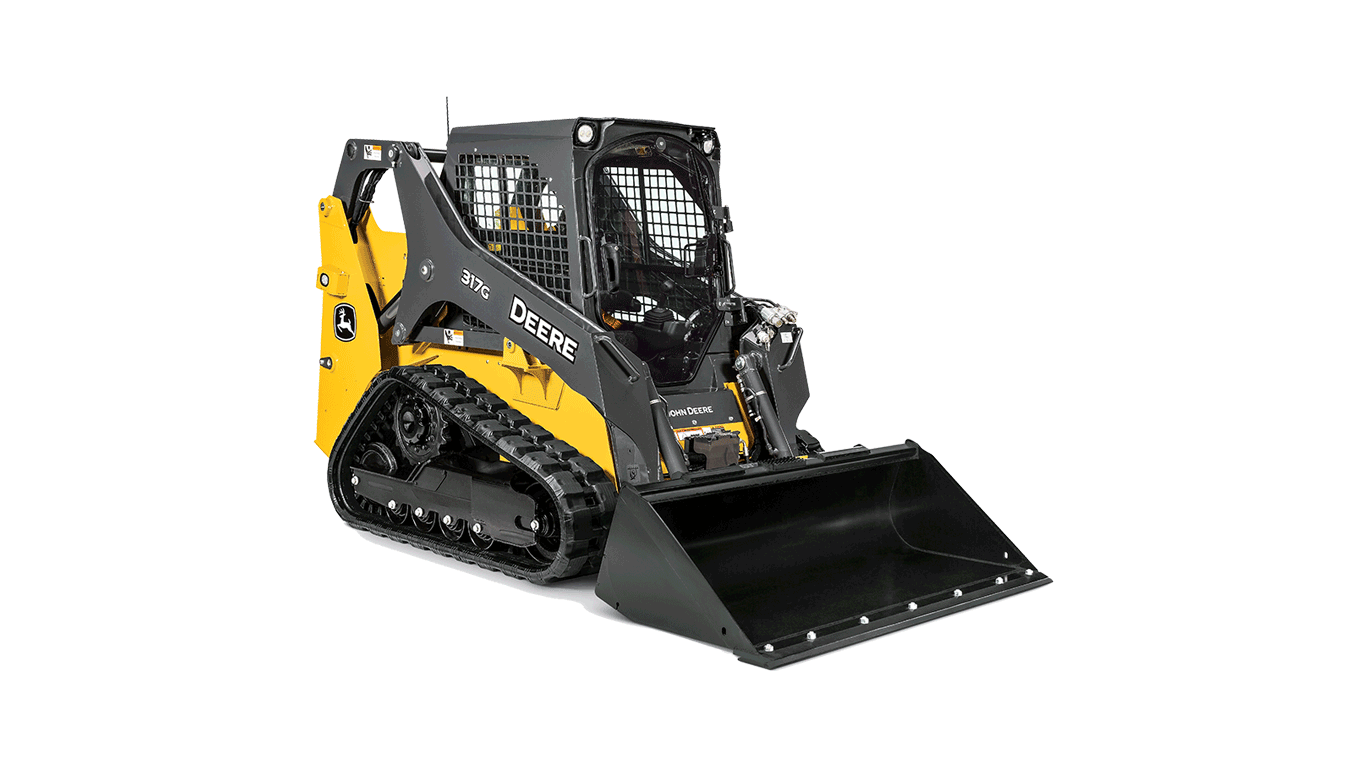

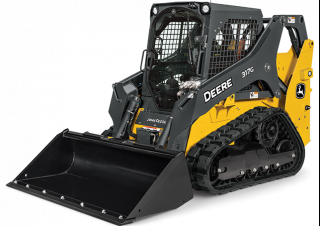

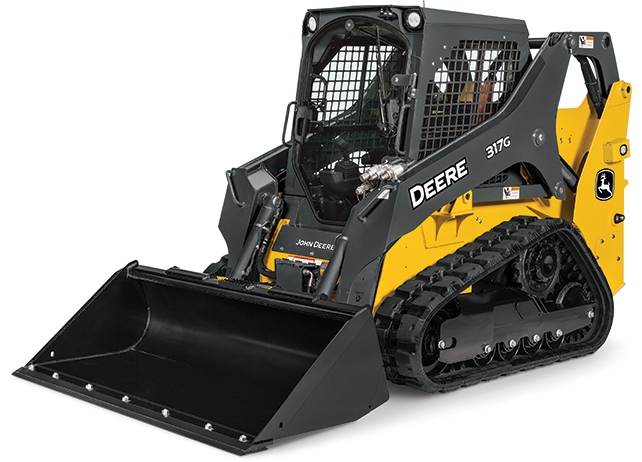

317G John Deere Construction 317G Specifications & Technical Data (2017—2026)
.png)
.png)
Technical specs - 317G John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.72 t
- Rated operating capacity
- 1022 kg
- Track width
- 320 mm
- Driver protection
- KbR
- Transport length
- 2.63 m
- Transport width
- 1.65 m
- Transport height
- 1.99 m
- Travel speed
- 11.3 km/h
- Max. discharge height
- 2.43 m
- Lifting force
- 22.2 kN
- Model series
- G
- Engine manuf.
- Yanmar
- Engine type
- 4TNV86CHT
- Engine power
- 45.6 kW
- Displacement
- 2.1 l
- Revolutions at max torque
- 1690 rpm
- Max. torque
- 207/1690 Nm
- No. of cylinders
- 4
- Emission level
- Tier 4f/EU IV
More technical details, like: standard tyres, bucket width, bucket capacity, steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
