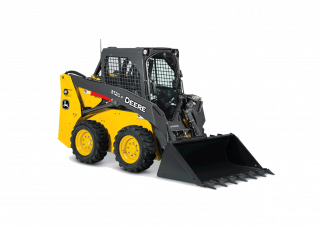

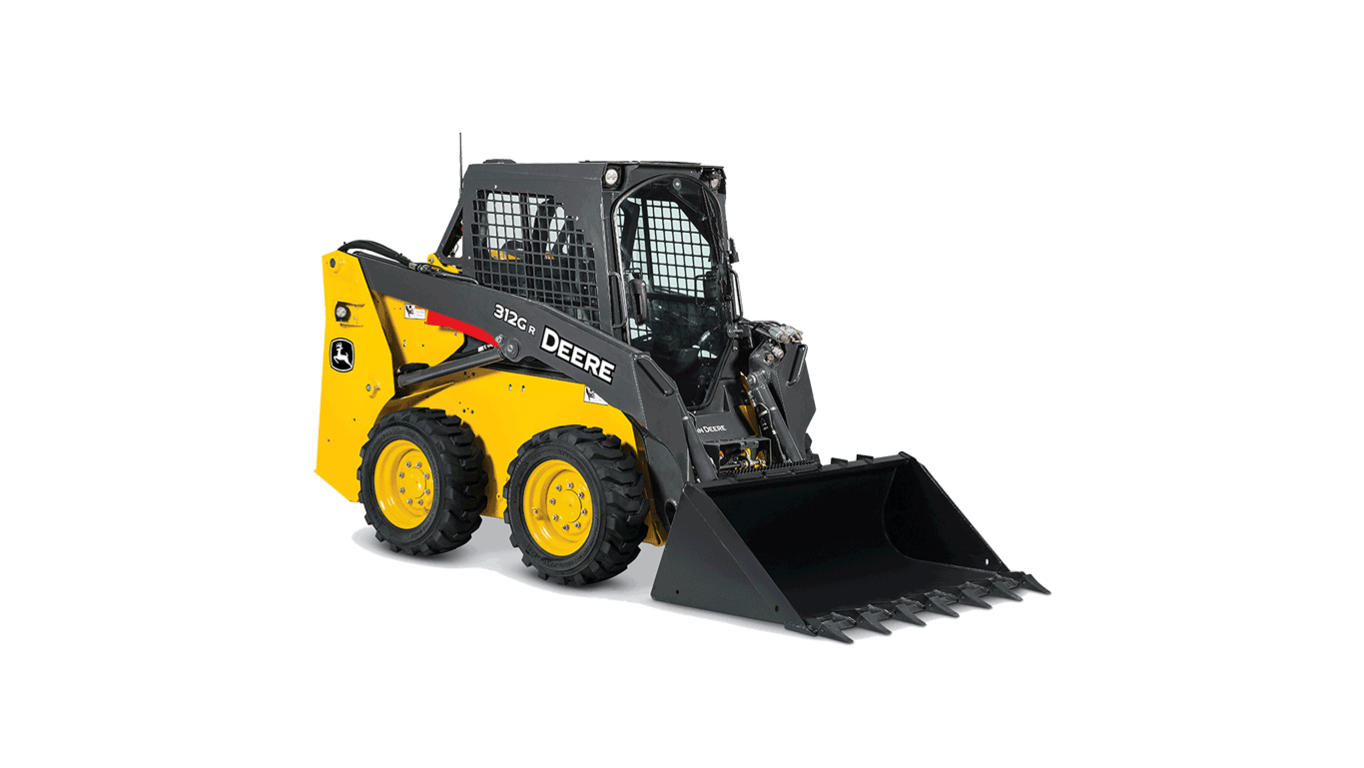

312GR John Deere Construction 312GR Specifications & Technical Data (2017—2022)

The John Deere Construction 312GR is a skid steer loader manufactured by John Deere Construction from 2017 to 2022. It has a weigh…

The John Deere Construction 312GR is a skid steer loader manufactured by John Deere Construction from 2017 to 2022. It has a weight of 2.72 tons and a transport length of 2.63 meters. The maximum discharge height is 2.25 meters, and it has a travel speed of 10.8 km/h. The transport width is 1.6 meters, and the transport height is 1.96 meters. The lifting force is 20 kilonewtons, and the rated operating capacity is 704 kilograms.

Skid Steer Loaders John Deere Construction 312GR

Technical specs - 312GR John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.72 t
Rated operating capacity
704 kg
Standard tyres
10x16.5
Driver protection
KbR
Transport length
2.63 m
Transport width
1.6 m
Transport height
1.96 m
Travel speed
10.8 km/h
Max. discharge height
2.25 m
Lifting force
20 kN
Model series
G
Engine manuf.
Yanmar
Engine type
4TNV86CT
Engine power
35.8 kW
Displacement
2.1 l
Revolutions at max torque
2600 rpm
Max. torque
168/1690 Nm
No. of cylinders
4
Emission level
Tier 4f/EU IV

More technical details, like: track width, bucket width, bucket capacity, steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 312GR FAQ

When was the John Deere Construction 312GR manufactured?

The John Deere Construction 312GR was manufactured from 2017 to 2022.

How much does the John Deere Construction 312GR skid steer loader weigh?

The John Deere Construction 312GR skid steer loader weighs 2.72 tons.

What are the transport dimensions of the John Deere Construction 312GR skid steer loader?

The John Deere Construction 312GR has a transport length of 2.63 meters, a transport width of 1.6 meters, and a transport height of 1.96 meters.

What is the travel speed of the John Deere Construction 312GR skid steer loader?

The John Deere Construction 312GR has a travel speed of 10.8 km/h.

What is the standard tyre size of the John Deere Construction 312GR skid steer loader?

The standard tyre size of the John Deere Construction 312GR skid steer loader is 10x16.5.

What are the power ratings of the John Deere Construction 312GR skid steer loader?

The available data does not provide power ratings for the John Deere Construction 312GR skid steer loader.

What is the material handling capacity of the John Deere Construction 312GR skid steer loader?

The John Deere Construction 312GR has a rated operating capacity of 704 kg and a maximum discharge height of 2.25 meters.

What operator safety and support features does the John Deere Construction 312GR have?

The John Deere Construction 312GR is equipped with a cabin that includes ROPS for driver protection.
