135 JCB 135 Specifications & Technical Data (2013—2017)

Model rating
8,50 / 10

The JCB 135 Skid Steer Loader, manufactured from 2013 to 2017, has a weight of 2.79 tons and a transport length of 3.49 meters. It…

The JCB 135 Skid Steer Loader, manufactured from 2013 to 2017, has a weight of 2.79 tons and a transport length of 3.49 meters. It features a bucket width of 1.52 meters and a maximum discharge height of 2.26 meters. With a travel speed of 12 km/h, it has a transport width and height of 1.52 meters and 1.98 meters respectively. The loader has a rated operating capacity of 612 kilograms.

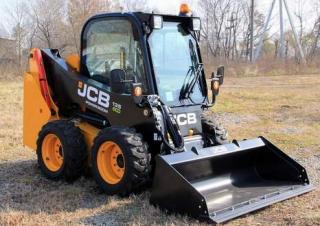

Skid Steer Loaders JCB 135

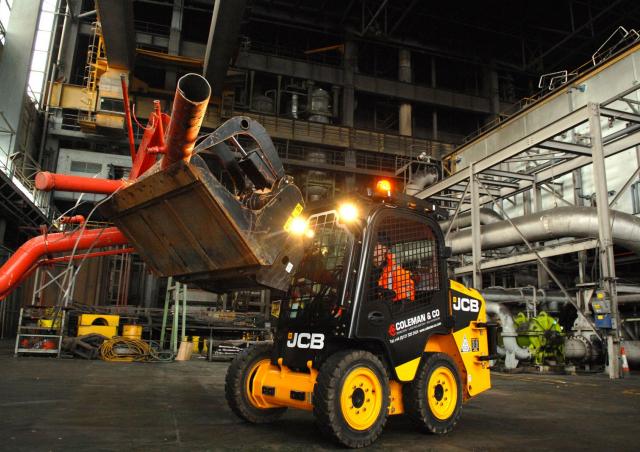

Skid Steer Loaders JCB 135
Skid Steer Loaders JCB 135
Skid Steer Loaders JCB 135

Visit JCB live at

Technical specs - 135 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.79 t
Rated operating capacity
612 kg
Standard tyres
10x16.5-8 PR
Bucket width
1.52 m
Driver protection
KbR
Steering mode
AL
Transport length
3.49 m
Transport width
1.52 m
Transport height
1.98 m
Travel speed
12 km/h
Max. discharge height
2.26 m
Engine manuf.
Kohler
Engine type
KDI1903TCR
Engine power
36 kW
Dimension lxwxh
598.3x530x726 mm
Displacement
1.861 l
Max. torque
170/1500 Nm
No. of cylinders
3
Cylinder bore x stroke
88x102 mm

More technical details, like: track width, bucket capacity, lifting force, model series, revolutions at max torque, emission level, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available...

More technical details, like: track width, bucket capacity, lifting force, model series, revolutions at max torque, emission level, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, transmission type, drive chain rating [ansi], tyre size, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

JCB 135 FAQ

When was the JCB 135 skid steer loader manufactured?

The JCB 135 skid steer loader was manufactured from 2013 to 2017.

How much does the JCB 135 skid steer loader weigh?

The JCB 135 skid steer loader weighs 2.79 tons.

What are the transport dimensions of the JCB 135 skid steer loader?

The JCB 135 skid steer loader has a transport length of 3.49 meters, a transport width of 1.52 meters, and a transport height of 1.98 meters.

What is the travel speed of the JCB 135 skid steer loader?

The JCB 135 skid steer loader has a travel speed of 12 km/h.

What are the standard tyre specifications of the JCB 135 skid steer loader?

The JCB 135 skid steer loader has standard tyres sized 10x16.5-8 PR.

What is the steering mode of the JCB 135 skid steer loader?

The JCB 135 skid steer loader features an all-wheel steering mode.

What is the material handling capacity of the JCB 135 skid steer loader?

The JCB 135 skid steer loader has a rated operating capacity of 612 kg and a maximum discharge height of 2.26 meters.

What is the bucket width of the JCB 135 skid steer loader?

The bucket width of the JCB 135 skid steer loader is 1.52 meters.

What operator safety features does the JCB 135 skid steer loader have?

The JCB 135 skid steer loader features a cabin with ROPS for driver protection.

How much is a JCB 135 Skid steer loader (2013u20132017) worth?

The residual value of the JCB 135 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
