KL 75 Hanomag KL 75 Specifications & Technical Data (1989—1992)

The Hanomag KL 75 is a skid steer loader manufactured by Hanomag from 1989 to 1992. It has a weight of 2.85 tons and a bucket capa…

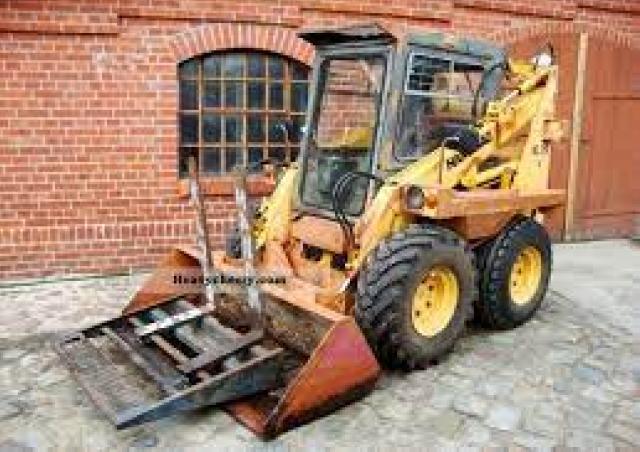

The Hanomag KL 75 is a skid steer loader manufactured by Hanomag from 1989 to 1992. It has a weight of 2.85 tons and a bucket capacity of 0.32 cubic meters. The travel speed of this construction machine is 12 km/h, and it has a rated operating capacity of 600 kilograms.

Skid Steer Loaders Hanomag KL 75

Technical specs - KL 75 Hanomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.85 t
Rated operating capacity
600 kg
Standard tyres
11.5-15.3
Bucket capacity
0.32 m³
Travel speed
12 km/h
Model series
KL
Engine manuf.
Hanomag
Engine type
D 832
Engine power
35 kW

More technical details, like: track width, bucket width, driver protection, steering mode, transport length, transport width, transport height, max. discharge height, lifting force, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: track width, bucket width, driver protection, steering mode, transport length, transport width, transport height, max. discharge height, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Hanomag KL 75 FAQ

When was the Hanomag KL 75 manufactured?

The Hanomag KL 75 was manufactured from 1989 to 1992.

How much does the Hanomag KL 75 skid steer loader weigh?

The Hanomag KL 75 skid steer loader weighs 2.85 tons.

What is the travel speed of the Hanomag KL 75 skid steer loader?

The Hanomag KL 75 has a travel speed of 12 km/h.

What are the undercarriage tyre specifications of the Hanomag KL 75 skid steer loader?

The Hanomag KL 75 skid steer loader is equipped with standard tyres sized 11.5-15.3.

What is the material handling capacity of the Hanomag KL 75 skid steer loader?

The Hanomag KL 75 skid steer loader has a rated operating capacity of 600 kilograms.

What is the bucket capacity of the Hanomag KL 75 skid steer loader?

The Hanomag KL 75 skid steer loader has a bucket capacity of 0.32 cubic meters.

How much is a Hanomag KL 75 Skid steer loader (1989u20131992) worth?

The residual value of the Hanomag KL 75 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
