VT230 Gehl VT230 Specifications & Technical Data (2026—2026)

Weight: 4.169t – Rated operating capacity: 1043kg – Bucket width: 1.778m – Driver protection: KbR – Transport width: 1.753m – Transport height: 2.057m

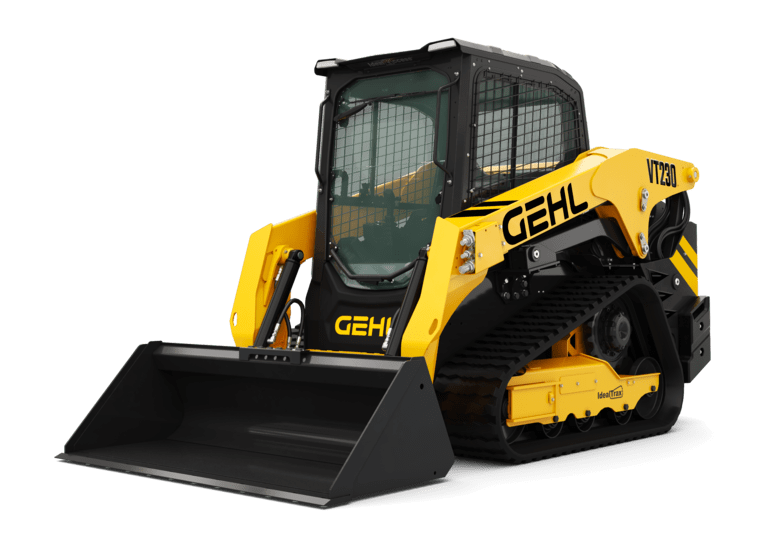

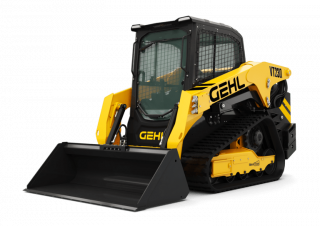

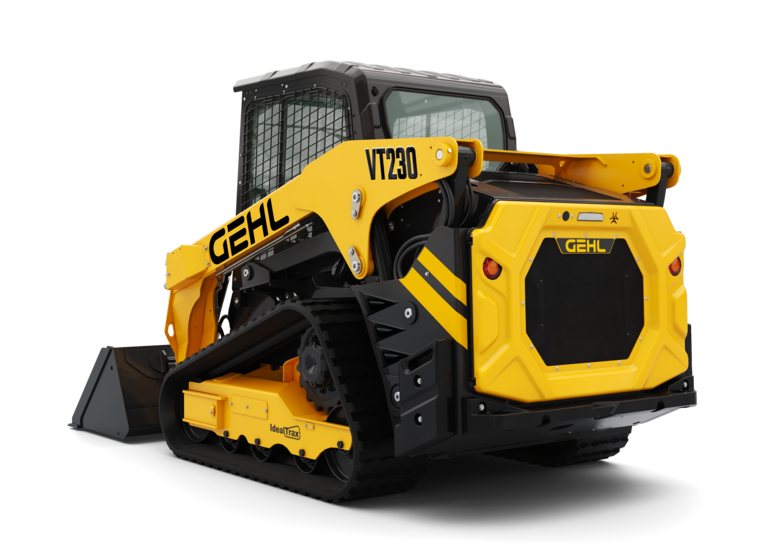

Skid Steer Loaders Gehl VT230
Skid Steer Loaders Gehl VT230
Skid Steer Loaders Gehl VT230
Skid Steer Loaders Gehl VT230

Technical specs - VT230 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.169 t
Rated operating capacity
1043 kg
Bucket width
1.778 m
Driver protection
KbR
Transport width
1.753 m
Transport height
2.057 m
Model series
VT
Engine manuf.
Yanmar
Engine type
4TNV98CT-XNGL
Engine power
52.33 kW
Revolutions at max torque
1800 rpm
Max. torque
294.2 Nm
No. of cylinders
4

More technical details, like: track width, standard tyres, bucket capacity, steering mode, transport length, travel speed, max. discharge height, lifting force, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
