901 s Wacker Neuson 901 s Specifications & Technical Data (2008—2010)

Model rating
6,50 / 10

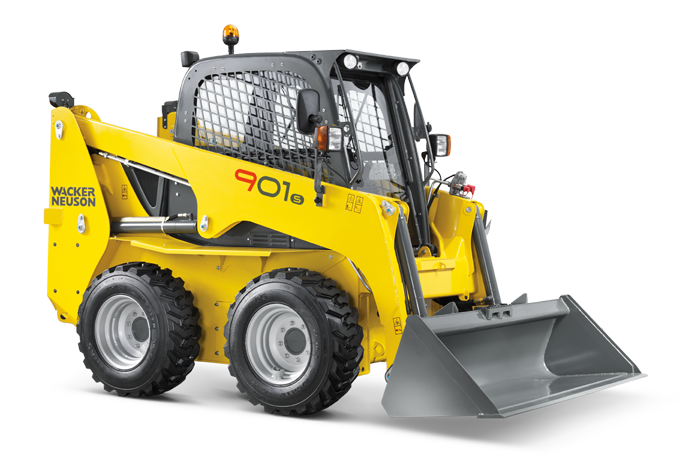

The Wacker Neuson 901 s is a skid steer loader manufactured by Wacker Neuson from 2008 to 2010. It has a weight of 3.4 tons and a …

The Wacker Neuson 901 s is a skid steer loader manufactured by Wacker Neuson from 2008 to 2010. It has a weight of 3.4 tons and a transport length of 3.535 meters. The bucket capacity is 0.45 cubic meters, with a bucket width of 1.9 meters. The maximum discharge height is 2.37 meters. The transport width is 2.055 meters, and the transport height is 1.815 meters. The rated operating capacity is 907 kilograms.

Skid Steer Loaders Wacker Neuson 901 s

Visit Wacker Neuson live at

Technical specs - 901 s Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.4 t
Rated operating capacity
907 kg
Standard tyres
12x16.5
Bucket width
1.9 m
Bucket capacity
0.45 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.54 m
Transport width
2.06 m
Transport height
1.82 m
Travel speed
18 km/h
Max. discharge height
2.37 m
Engine manuf.
Deutz
Engine type
D2011
Engine power
50 kW
Displacement
3.619 l
Revolutions at max torque
2600 rpm

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model...

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, pump type, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Wacker Neuson 901 s FAQ

When was the Wacker Neuson 901 s manufactured?

The Wacker Neuson 901 s was manufactured from 2008 to 2010.

How much does the Wacker Neuson 901 s weigh?

The Wacker Neuson 901 s weighs 3.4 tons.

What are the transport dimensions of the Wacker Neuson 901 s skid steer loader?

The Wacker Neuson 901 s has a transport length of 3.54 meters, a transport width of 2.06 meters, and a transport height of 1.82 meters.

What is the travel speed of the Wacker Neuson 901 s skid steer loader?

The Wacker Neuson 901 s has a travel speed of 18 km/h.

What is the standard tyre size of the Wacker Neuson 901 s skid steer loader?

The Wacker Neuson 901 s skid steer loader has standard tyres sized 12x16.5.

What is the steering mode of the Wacker Neuson 901 s?

The Wacker Neuson 901 s has a steering mode of tank steering.

What is the material handling capacity of the Wacker Neuson 901 s skid steer loader?

The Wacker Neuson 901 s has a rated operating capacity of 907 kg and a maximum discharge height of 2.37 meters.

What are the specifications of the primary work tool bucket on the Wacker Neuson 901 s skid steer loader?

The primary work tool bucket of the Wacker Neuson 901 s has a capacity of 0.45 cubic meters and a width of 1.9 meters.

What operator safety and support features does the Wacker Neuson 901 s have?

The Wacker Neuson 901 s is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Wacker Neuson 901 s Skid steer loader (2008u20132010) worth?

The residual value of the Wacker Neuson 901 s depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
6,50 / 10
Quotation mark

Wacker Neuson 901 s user from Australia

Good solid machine. No problems or issues with it after several years of work.
