SL 6640 SXT Dual Gehl SL 6640 SXT Dual Specifications & Technical Data (2004—2007)

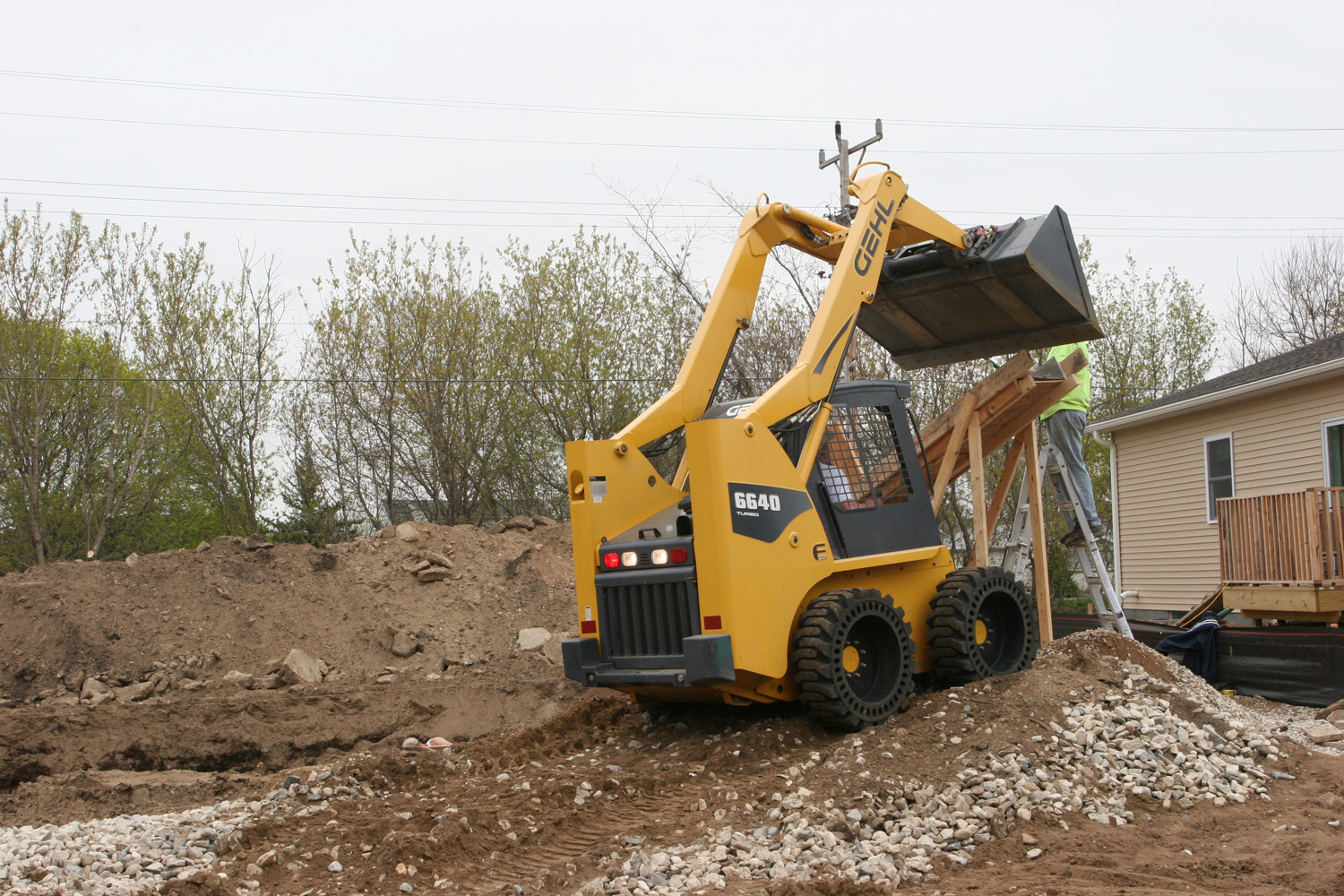

The Gehl SL 6640 SXT Dual is a skid steer loader manufactured by Gehl from 2004 to 2007. It has a weight of 3.53 tons and a transp…

The Gehl SL 6640 SXT Dual is a skid steer loader manufactured by Gehl from 2004 to 2007. It has a weight of 3.53 tons and a transport length of 3.6 meters. The bucket capacity is 0.45 cubic meters, and the transport width is 1.7 meters. The transport height is 2.06 meters. It has a rated operating capacity of 1179 kilograms.

Skid Steer Loaders Gehl SL 6640 SXT Dual

Technical specs - SL 6640 SXT Dual Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.53 t
Rated operating capacity
1179 kg
Standard tyres
14.00X17.5
Bucket capacity
0.45 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.6 m
Transport width
1.7 m
Transport height
2.06 m
Travel speed
13.5 km/h
Model series
SL
Engine manuf.
Deutz
Engine type
BF4M2011
Engine power
60 kW

More technical details, like: track width, bucket width, max. discharge height, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry...

More technical details, like: track width, bucket width, max. discharge height, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, breakout - bucket, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Gehl SL 6640 SXT Dual FAQ

When was the Gehl SL 6640 SXT Dual manufactured?

The Gehl SL 6640 SXT Dual was manufactured from 2004 to 2007.

How much does the Gehl SL 6640 SXT Dual skid steer loader weigh?

The Gehl SL 6640 SXT Dual skid steer loader weighs 3.53 tons.

What are the transport dimensions of the Gehl SL 6640 SXT Dual skid steer loader?

The Gehl SL 6640 SXT Dual has a transport length of 3.6 meters, a transport width of 1.7 meters, and a transport height of 2.06 meters.

What is the travel speed of the Gehl SL 6640 SXT Dual skid steer loader?

The Gehl SL 6640 SXT Dual has a travel speed of 13.5 km/h.

What are the undercarriage specifications of the Gehl SL 6640 SXT Dual skid steer loader?

The Gehl SL 6640 SXT Dual skid steer loader is equipped with standard tyres sized 14.00X17.5.

What is the steering mode of the Gehl SL 6640 SXT Dual skid steer loader?

The Gehl SL 6640 SXT Dual skid steer loader has tank steering.

What is the rated operating capacity of the Gehl SL 6640 SXT Dual skid steer loader?

The Gehl SL 6640 SXT Dual skid steer loader has a rated operating capacity of 1179 kg.

What is the bucket capacity of the Gehl SL 6640 SXT Dual skid steer loader?

The Gehl SL 6640 SXT Dual skid steer loader has a bucket capacity of 0.45 cubic meters.

What operator safety and support features does the Gehl SL 6640 SXT Dual have?

The Gehl SL 6640 SXT Dual is equipped with a cabin that includes ROPS for driver protection.
