RT195 Gehl RT195 Specifications & Technical Data (2026—2026)

Weight: 3.81t – Rated operating capacity: 1264kg – Bucket width: 1.778m – Driver protection: KbR – Transport width: 1.746m – Model series: RT

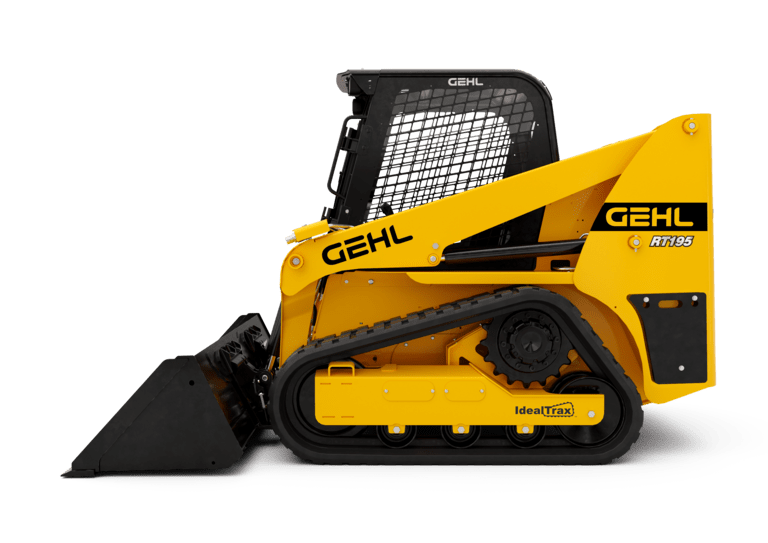

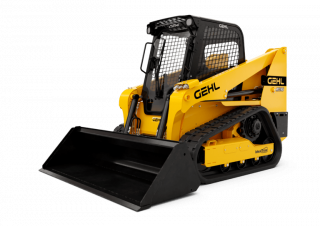

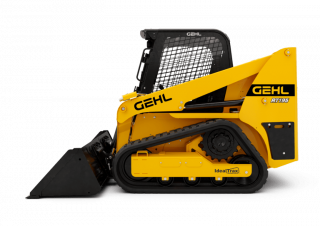

Skid Steer Loaders Gehl RT195
Skid Steer Loaders Gehl RT195
Skid Steer Loaders Gehl RT195
Skid Steer Loaders Gehl RT195

Technical specs - RT195 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.81 t
Rated operating capacity
1264 kg
Bucket width
1.778 m
Driver protection
KbR
Transport width
1.746 m
Model series
RT
Engine manuf.
Yanmar
Engine type
4TNV98C-NMS2V
Engine power
51 kW
Revolutions at max torque
2500 rpm
Max. torque
241 Nm
No. of cylinders
4

More technical details, like: track width, standard tyres, bucket capacity, steering mode, transport length, transport height, travel speed, max. discharge height, lifting force, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
