RT165 Gehl RT165 Specifications & Technical Data (2026—2026)

Weight: 3.638t – Rated operating capacity: 748kg – Track width: 400mm – Bucket width: 1.778m – Driver protection: KbR – Transport length: 2.393m

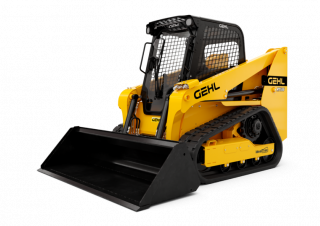

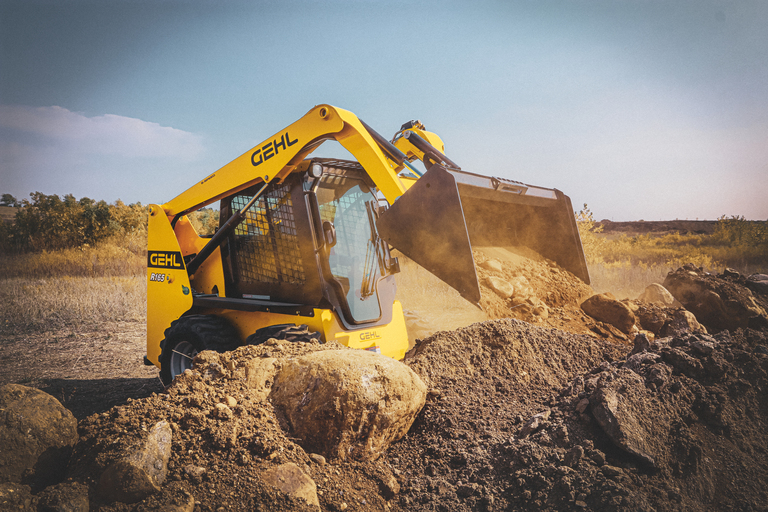

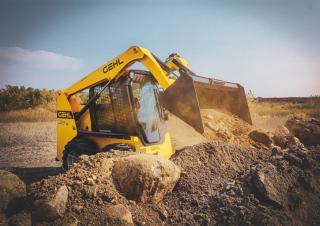

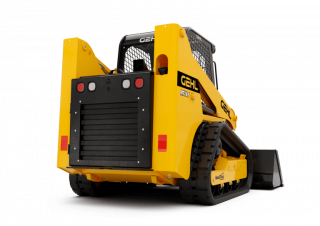

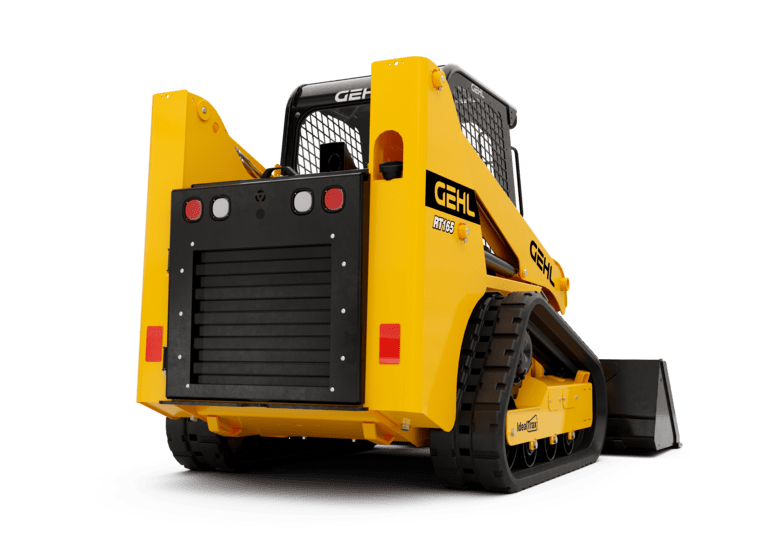

Skid Steer Loaders Gehl RT165
Skid Steer Loaders Gehl RT165
Skid Steer Loaders Gehl RT165
Skid Steer Loaders Gehl RT165
Skid Steer Loaders Gehl RT165
Skid Steer Loaders Gehl RT165

Technical specs - RT165 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.638 t
Rated operating capacity
748 kg
Track width
400 mm
Bucket width
1.778 m
Driver protection
KbR
Transport length
2.393 m
Transport width
1.753 m
Transport height
1.939 m
Travel speed
10.5 km/h
Max. discharge height
2.329 m
Model series
RT
Engine manuf.
Yanmar
Engine type
4TNV98C-NMS2V
Engine power
51.7 kW
No. of cylinders
4

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
