460 Doosan 460 Specifications & Technical Data (2004—2011)

The Doosan 460 is a skid steer loader manufactured by Doosan from 2004 to 2011. It has a weight of 3.07 tons and a transport lengt…

The Doosan 460 is a skid steer loader manufactured by Doosan from 2004 to 2011. It has a weight of 3.07 tons and a transport length of 3.2 meters. The bucket capacity is 0.44 cubic meters, with a bucket width of 1.778 meters. The maximum discharge height is 0.694 meters, and it has a travel speed of 11 km/h. The transport width is 1.77 meters, and the transport height is 2.03 meters. The rated operating capacity is 1085 kilograms.

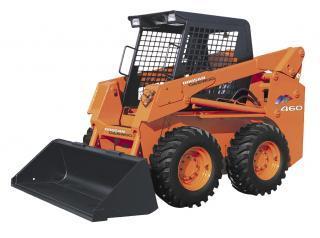

Skid Steer Loaders Doosan 460

Technical specs - 460 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.07 t
Rated operating capacity
1085 kg
Standard tyres
12.0-16.5 8PR
Bucket width
1.778 m
Bucket capacity
0.44 m³
Driver protection
Kb
Transport length
3.2 m
Transport width
1.77 m
Transport height
2.03 m
Travel speed
11 km/h
Max. discharge height
0.694 m
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
48 kW
Displacement
3.26 l
Revolutions at max torque
1600 rpm

More technical details, like: track width, steering mode, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer...

More technical details, like: track width, steering mode, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Doosan 460 FAQ

When was the Doosan 460 skid steer loader manufactured?

The Doosan 460 skid steer loader was manufactured from 2004 to 2011.

How much does the Doosan 460 skid steer loader weigh?

The Doosan 460 skid steer loader weighs 3.07 tons.

What are the transport dimensions of the Doosan 460 skid steer loader?

The Doosan 460 skid steer loader has a transport length of 3.2 meters, a transport width of 1.77 meters, and a transport height of 2.03 meters.

What is the travel speed of the Doosan 460 skid steer loader?

The Doosan 460 skid steer loader has a travel speed of 11 km/h.

What are the undercarriage specifications of the Doosan 460 skid steer loader?

The Doosan 460 skid steer loader comes with standard tyres sized 12.0-16.5 8PR.

What is the material handling capacity of the Doosan 460 skid steer loader?

The Doosan 460 skid steer loader has a rated operating capacity of 1085 kg and a maximum discharge height of 0.69 meters.

What are the bucket specifications of the Doosan 460 skid steer loader?

The Doosan 460 skid steer loader has a bucket capacity of 0.44 cubic meters and a bucket width of 1.78 meters.

What operator safety features does the Doosan 460 skid steer loader have?

The Doosan 460 skid steer loader has a cabin for driver protection.
