299D2 XHP Caterpillar 299D2 XHP Specifications & Technical Data (2013—2017)

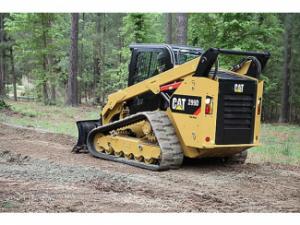

The Caterpillar 299D2 XHP is a skid steer loader manufactured by Caterpillar from 2013 to 2017. It has a weight of 5.11 tons and a…

The Caterpillar 299D2 XHP is a skid steer loader manufactured by Caterpillar from 2013 to 2017. It has a weight of 5.11 tons and a transport length of 3.93 meters. The bucket capacity is 0.63 cubic meters with a width of 2.13 meters. The maximum discharge height is 2.4 meters and it has a travel speed of 13.5 km/h. The transport width is 1.98 meters and the transport height is 2.12 meters. The track width is 450 mm and it has a rated operating capacity of 2087 kg.

Skid Steer Loaders Caterpillar 299D2 XHP
Skid Steer Loaders Caterpillar 299D2 XHP
Skid Steer Loaders Caterpillar 299D2 XHP
Skid Steer Loaders Caterpillar 299D2 XHP

Technical specs - 299D2 XHP Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.11 t
Rated operating capacity
2087 kg
Track width
450 mm
Bucket width
2.13 m
Bucket capacity
0.63 m³
Driver protection
Ü
Transport length
3.93 m
Transport width
1.98 m
Transport height
2.12 m
Travel speed
13.5 km/h
Max. discharge height
2.4 m
Model series
XHP
Engine manuf.
Caterpillar
Engine type
C3.3B DIT
Engine power
73 kW
Displacement
3.8 l
Cylinder bore x stroke
100x120 mm
Emission level
Tier 4 f

More technical details, like: standard tyres, steering mode, lifting force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, undercarriage type, lift geometry, access, suspension seat, telematics available...

More technical details, like: standard tyres, steering mode, lifting force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, undercarriage type, lift geometry, access, suspension seat, telematics available, platform, security system available, engine manufacturer, engine model, emission rating, number of cylinders, aspiration, engine output - net, engine output - gross, rated speed - torque, torque, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 299D2 XHP FAQ

When was the Caterpillar 299D2 XHP manufactured?

The Caterpillar 299D2 XHP was manufactured from 2013 to 2017.

How much does the Caterpillar 299D2 XHP weigh?

The Caterpillar 299D2 XHP weighs 5.11 tons.

What are the transport dimensions of the Caterpillar 299D2 XHP skid steer loader?

The Caterpillar 299D2 XHP has a transport length of 3.93 meters, a transport width of 1.98 meters, and a transport height of 2.12 meters.

What is the travel speed of the Caterpillar 299D2 XHP skid steer loader?

The Caterpillar 299D2 XHP skid steer loader has a travel speed of 13.5 km/h.

What is the track width of the Caterpillar 299D2 XHP skid steer loader?

The Caterpillar 299D2 XHP skid steer loader has a track width of 450 mm.

What is the material handling capacity of the Caterpillar 299D2 XHP skid steer loader?

The Caterpillar 299D2 XHP skid steer loader has a rated operating capacity of 2087 kilograms.

What are the specifications of the primary work tool bucket on the Caterpillar 299D2 XHP?

The primary work tool bucket of the Caterpillar 299D2 XHP has a capacity of 0.63 cubic meters and a width of 2.13 meters.

What operator safety feature does the Caterpillar 299D2 XHP have?

The Caterpillar 299D2 XHP is equipped with a roll-over bar for driver protection.

How much is a Caterpillar 299D2 XHP Skid steer loader (2013u20132017) worth?

The residual value of the Caterpillar 299D2 XHP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
