299D2 Caterpillar 299D2 Specifications & Technical Data (2017—2020)

The Caterpillar 299D2 is a skid steer loader manufactured by Caterpillar from 2017 to 2020. It has a weight of 5.47 tons and a tra…

The Caterpillar 299D2 is a skid steer loader manufactured by Caterpillar from 2017 to 2020. It has a weight of 5.47 tons and a transport length of 3.93 meters. The bucket width is 1.98 meters, and the maximum discharge height is 2.4 meters. It has a travel speed of 8.4 km/h, with a transport width of 1.93 meters and a transport height of 2.12 meters. The track width is 400 millimeters, and the rated operating capacity is 2204 kilograms.

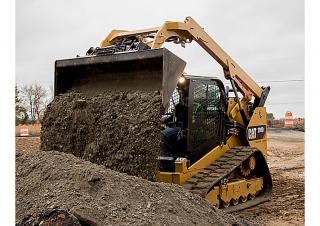

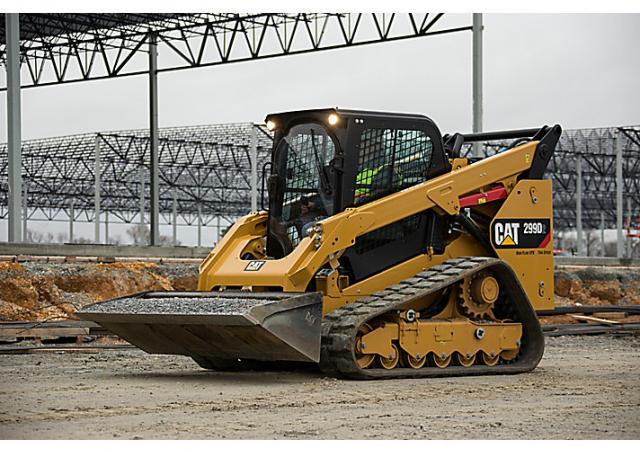

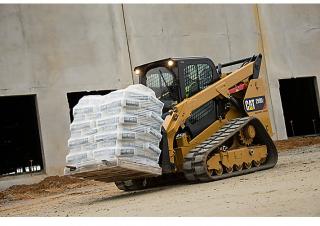

Skid Steer Loaders Caterpillar 299D2
Skid Steer Loaders Caterpillar 299D2
Skid Steer Loaders Caterpillar 299D2
Skid Steer Loaders Caterpillar 299D2
Skid Steer Loaders Caterpillar 299D2
Skid Steer Loaders Caterpillar 299D2
Skid Steer Loaders Caterpillar 299D2
Skid Steer Loaders Caterpillar 299D2

Technical specs - 299D2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.47 t
Rated operating capacity
2204 kg
Track width
400 mm
Bucket width
1.98 m
Driver protection
KbR
Transport length
3.93 m
Transport width
1.93 m
Transport height
2.12 m
Travel speed
8.4 km/h
Max. discharge height
2.4 m
Engine manuf.
Caterpillar
Engine type
C3.8 DIT
Engine power
72 kW
Displacement
3.8 l

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 299D2 FAQ

When was the Caterpillar 299D2 manufactured?

The Caterpillar 299D2 was manufactured from 2017 to 2020.

How much does the Caterpillar 299D2 skid steer loader weigh?

The Caterpillar 299D2 skid steer loader weighs 5.47 tons.

What are the transport dimensions of the Caterpillar 299D2 skid steer loader?

The Caterpillar 299D2 skid steer loader has a transport length of 3.93 meters, a transport width of 1.93 meters, and a transport height of 2.12 meters.

What is the travel speed of the Caterpillar 299D2 skid steer loader?

The Caterpillar 299D2 skid steer loader has a travel speed of 8.4 km/h.

What is the track width of the Caterpillar 299D2 skid steer loader's undercarriage?

The Caterpillar 299D2 skid steer loader has a track width of 400 mm.

What is the material handling capacity of the Caterpillar 299D2 skid steer loader?

The Caterpillar 299D2 skid steer loader has a rated operating capacity of 2204 kg and a maximum discharge height of 2.4 meters.

What is the width of the primary work tool bucket on the Caterpillar 299D2 skid steer loader?

The primary work tool bucket on the Caterpillar 299D2 skid steer loader has a width of 1.98 meters.

What operator safety and support features does the Caterpillar 299D2 have?

The Caterpillar 299D2 is equipped with a cabin featuring ROPS (Roll-Over Protective Structure) for driver protection.
