299C Caterpillar 299C Specifications & Technical Data (2009—2015)

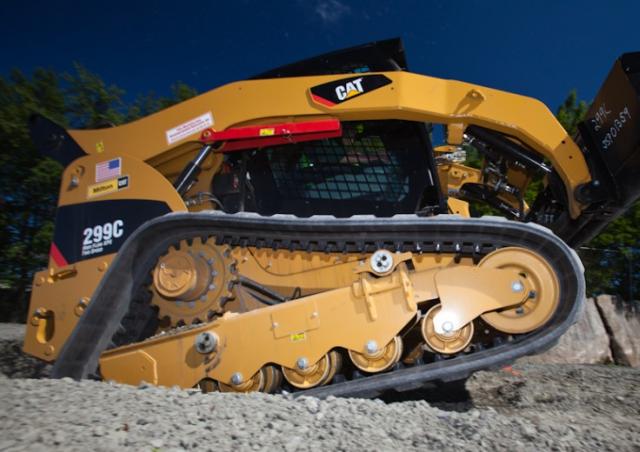

The Caterpillar 299C is a skid steer loader manufactured by Caterpillar from 2009 to 2015. It has a weight of 5.12 tons and a buck…

The Caterpillar 299C is a skid steer loader manufactured by Caterpillar from 2009 to 2015. It has a weight of 5.12 tons and a bucket capacity of 0.63 cubic meters. The bucket width is 2.134 meters, and it has a travel speed of 14 km/h. The track width is 460 mm, and it has a rated operating capacity of 1882 kg.

Skid Steer Loaders Caterpillar 299C

Technical specs - 299C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.12 t
Rated operating capacity
1882 kg
Track width
460 mm
Bucket width
2.134 m
Bucket capacity
0.63 m³
Driver protection
Ü
Steering mode
AL
Travel speed
14 km/h
Engine manuf.
Caterpillar
Engine type
C3.4 T
Engine power
67 kW
Displacement
3.4 l
Revolutions at max torque
2500 rpm

More technical details, like: standard tyres, transport length, transport width, transport height, max. discharge height, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level...

More technical details, like: standard tyres, transport length, transport width, transport height, max. discharge height, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry, access, suspension seat, engine manufacturer, engine model, emission rating, number of cylinders, aspiration, rated speed, engine output - net, engine output - gross, torque, transmission type, drive method, track rollers, length - no bucket, length - with bucket, width - no bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 299C FAQ

When was the Caterpillar 299C manufactured?

The Caterpillar 299C was manufactured from 2009 to 2015.

How much does the Caterpillar 299C skid steer loader weigh?

The Caterpillar 299C skid steer loader weighs 5.12 tons.

What is the travel speed of the Caterpillar 299C skid steer loader?

The Caterpillar 299C skid steer loader has a travel speed of 14 km/h.

What is the track width of the Caterpillar 299C skid steer loader?

The Caterpillar 299C skid steer loader has a track width of 460 mm.

What is the steering mode of the Caterpillar 299C skid steer loader?

The Caterpillar 299C skid steer loader has an all-wheel steering mode.

What is the material handling capacity of the Caterpillar 299C skid steer loader?

The Caterpillar 299C skid steer loader has a rated operating capacity of 1882 kg.

What are the specifications of the primary work tool bucket on the Caterpillar 299C skid steer loader?

The primary work tool bucket of the Caterpillar 299C has a capacity of 0.63 cubic meters and a width of 2.13 meters.

What operator safety features does the Caterpillar 299C skid steer loader have?

The Caterpillar 299C skid steer loader is equipped with a roll-over bar for driver protection.

How much is a Caterpillar 299C Skid steer loader (2009u20132015) worth?

The residual value of the Caterpillar 299C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
