252B Series 3 Caterpillar 252B Series 3 Specifications & Technical Data (2016—2017)

The Caterpillar 252B Series 3 is a skid steer loader manufactured by Caterpillar from 2016 to 2017. It has a weight of 3.56 tons a…

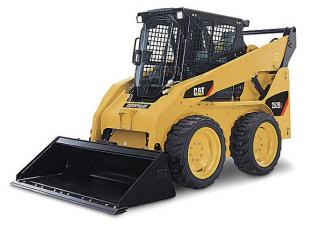

The Caterpillar 252B Series 3 is a skid steer loader manufactured by Caterpillar from 2016 to 2017. It has a weight of 3.56 tons and a transport length of 3.62 meters. The bucket capacity is 0.4 cubic meters, with a bucket width of 1.68 meters. The maximum discharge height is 2.42 meters. The transport width is 1.83 meters, and the transport height is 2.06 meters. The rated operating capacity is 1202 kilograms.

Skid Steer Loaders Caterpillar 252B Series 3

Technical specs - 252B Series 3 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.56 t
Rated operating capacity
1202 kg
Standard tyres
12x16.5
Bucket width
1.68 m
Bucket capacity
0.4 m³
Driver protection
KbR
Steering mode
AL
Transport length
3.62 m
Transport width
1.83 m
Transport height
2.06 m
Travel speed
17.8 km/h
Max. discharge height
2.42 m
Lifting force
24.5 kN
Model series
3
Engine manuf.
Caterpillar
Engine type
C3.4 DIT
Engine power
53 kW
Displacement
3.3 l
Cylinder bore x stroke
94 x 120 mm
Emission level
Tier 4 i. Stage IIIA

More technical details, like: track width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 252B Series 3 FAQ

When was the Caterpillar 252B Series 3 manufactured?

The Caterpillar 252B Series 3 was manufactured from 2016 to 2017.

How much does the Caterpillar 252B Series 3 weigh?

The Caterpillar 252B Series 3 weighs 3.56 tons.

What are the transport dimensions of the Caterpillar 252B Series 3 skid steer loader?

The Caterpillar 252B Series 3 has a transport length of 3.62 meters, a transport width of 1.83 meters, and a transport height of 2.06 meters.

What is the travel speed of the Caterpillar 252B Series 3 skid steer loader?

The Caterpillar 252B Series 3 skid steer loader has a travel speed of 17.8 km/h.

What are the undercarriage specifications of the Caterpillar 252B Series 3 skid steer loader?

The Caterpillar 252B Series 3 skid steer loader comes with standard tyres sized 12x16.5.

What is the steering mode of the Caterpillar 252B Series 3 skid steer loader?

The Caterpillar 252B Series 3 skid steer loader features all-wheel steering.

What is the lifting force of the Caterpillar 252B Series 3 skid steer loader?

The Caterpillar 252B Series 3 skid steer loader has a lifting force of 24.5 kN. No power rating data is provided for this model.

What is the material handling capacity of the Caterpillar 252B Series 3 skid steer loader?

The Caterpillar 252B Series 3 has a rated operating capacity of 1202 kg and a maximum discharge height of 2.42 meters.

What are the specifications of the primary work tool on the Caterpillar 252B Series 3 skid steer loader?

The primary work tool of the Caterpillar 252B Series 3 skid steer loader has a bucket capacity of 0.4 cubic meters and a bucket width of 1.68 meters.

What operator safety and support features does the Caterpillar 252B Series 3 skid steer loader have?

The Caterpillar 252B Series 3 skid steer loader features a cabin with ROPS for driver protection.
