246C Caterpillar 246C Specifications & Technical Data (2007—2016)

The Caterpillar 246C Skid Steer Loader, manufactured from 2007 to 2016, has a weight of 3.348 tons. It has a transport length of 3…

The Caterpillar 246C Skid Steer Loader, manufactured from 2007 to 2016, has a weight of 3.348 tons. It has a transport length of 3.4 meters, a maximum discharge height of 2.43 meters, a transport width of 1.68 meters, and a transport height of 3.69 meters. The rated operating capacity of this construction machine is 975 kilograms.

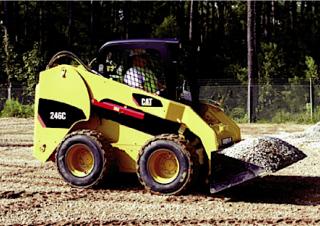

Skid Steer Loaders Caterpillar 246C

Technical specs - 246C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.348 t
Rated operating capacity
975 kg
Standard tyres
12.5/19.3
Transport length
3.4 m
Transport width
1.68 m
Transport height
3.69 m
Max. discharge height
2.43 m
Engine manuf.
Caterpillar
Engine type
3044C DIT
Engine power
57 kW
Displacement
3 l
No. of cylinders
4
Cylinder bore x stroke
94x120 mm
Emission level
Tier 2

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, travel speed, lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 246C FAQ

When was the Caterpillar 246C skid steer loader manufactured?

The Caterpillar 246C skid steer loader was manufactured from 2007 to 2016.

How much does the Caterpillar 246C skid steer loader weigh?

The Caterpillar 246C skid steer loader weighs 3.35 tons.

What are the transport dimensions of the Caterpillar 246C skid steer loader?

The Caterpillar 246C skid steer loader has a transport length of 3.4 meters, a transport width of 1.68 meters, and a transport height of 3.69 meters.

What is the standard tyre size of the Caterpillar 246C skid steer loader's undercarriage?

The Caterpillar 246C skid steer loader has standard tyres sized 12.5/19.3.

What is the material handling capacity of the Caterpillar 246C skid steer loader?

The Caterpillar 246C skid steer loader has a rated operating capacity of 975 kg and a maximum discharge height of 2.43 meters.

How much is a Caterpillar 246C Skid steer loader (2007u20132016) worth?

The residual value of the Caterpillar 246C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
