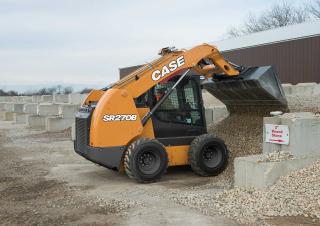

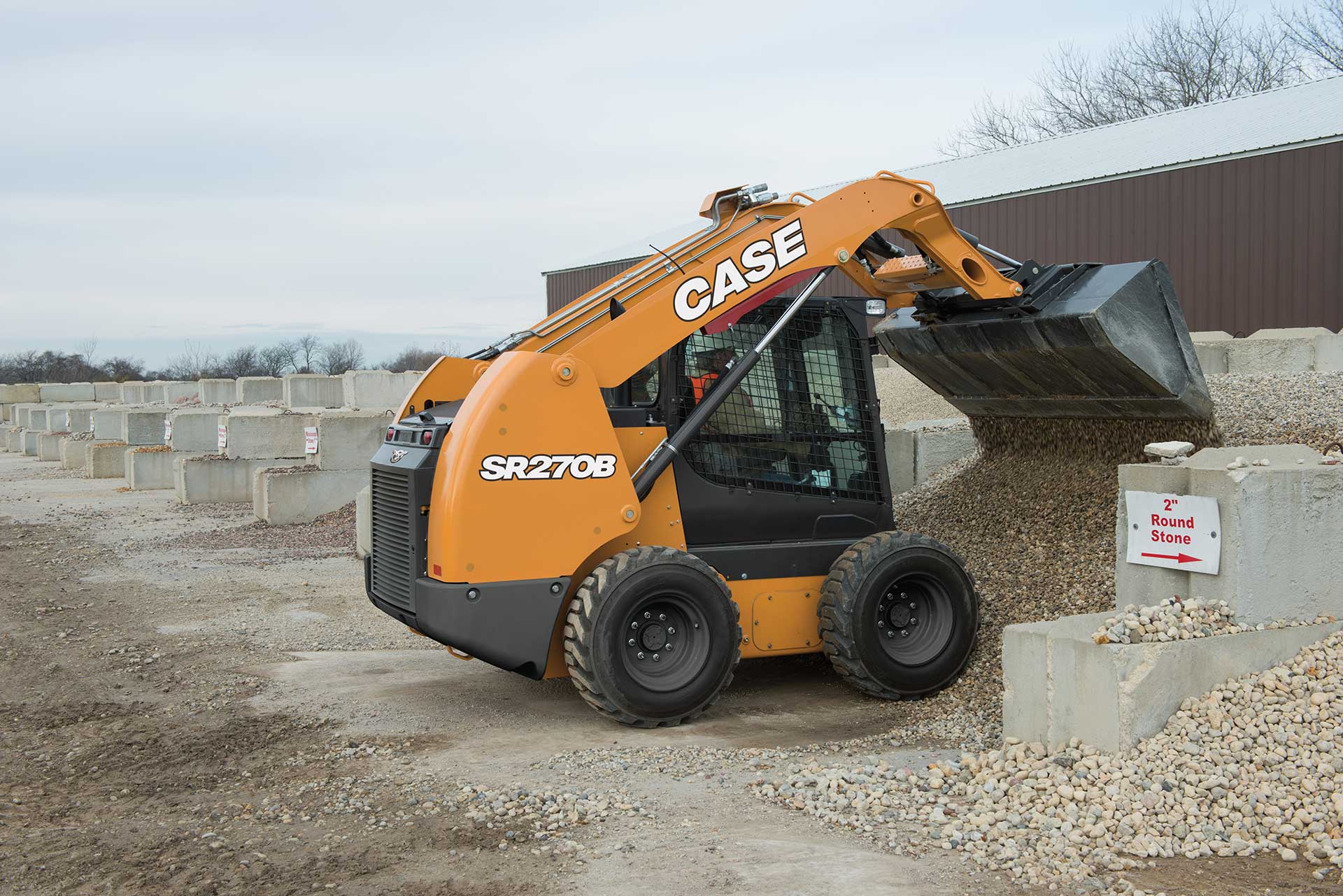

SR270B Case SR270B Specifications & Technical Data (2020—2026)
.jpg)
Technical specs - SR270B Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.68 t
- Rated operating capacity
- 1225 kg
- Standard tyres
- 12.00x16.5 tyres
- Transport length
- 2.98 m
- Transport width
- 1.8 m
- Transport height
- 2 m
- Travel speed
- 11.3 km/h
- Lifting force
- 33.3 kN
- Engine manuf.
- FPT
- Engine type
- F5H
- Engine power
- 67 kW
- Displacement
- 3.4 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 383 Nm
- Emission level
- V
More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, max. discharge height, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
Download datasheets (PDF)
