S550 Bobcat S550 Specifications & Technical Data (2013—2016)

The Bobcat S550 is a skid steer loader manufactured by Bobcat from 2013 to 2016. It has a weight of 2.81 tons and a transport leng…

The Bobcat S550 is a skid steer loader manufactured by Bobcat from 2013 to 2016. It has a weight of 2.81 tons and a transport length of 3.38 meters. The bucket capacity is 0.93 cubic meters with a width of 1.73 meters. The maximum discharge height is 2.2 meters and it has a travel speed of 17.3 km/h. The transport width and height are both 1.73 and 1.97 meters respectively. The rated operating capacity is 896 kilograms.

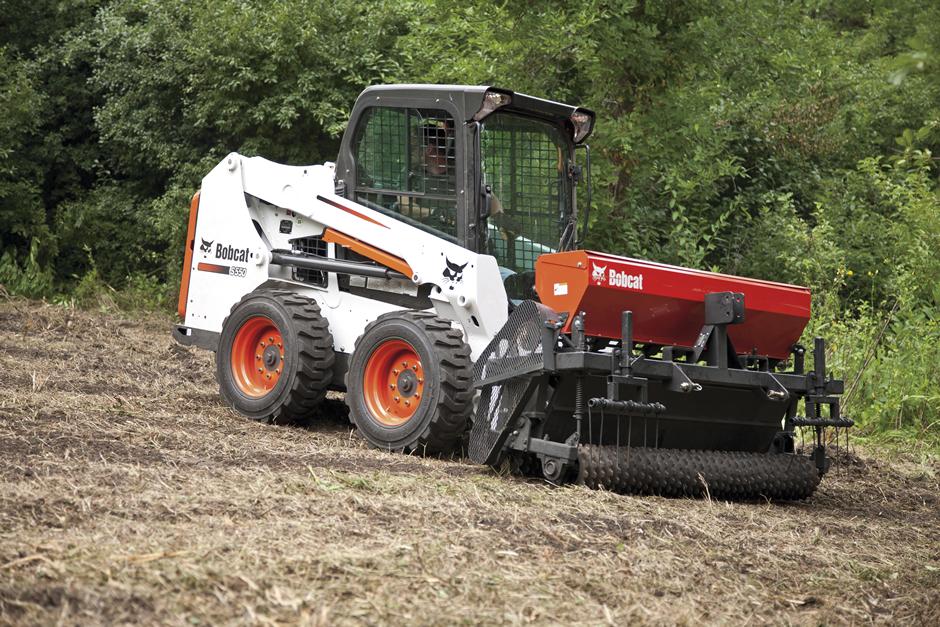

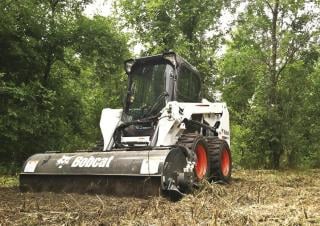

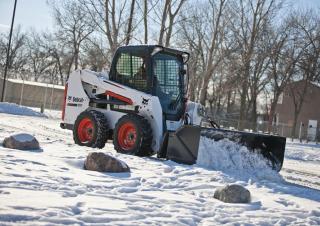

Skid Steer Loaders Bobcat S550
Skid Steer Loaders Bobcat S550
Skid Steer Loaders Bobcat S550
Skid Steer Loaders Bobcat S550
Skid Steer Loaders Bobcat S550
Skid Steer Loaders Bobcat S550
Skid Steer Loaders Bobcat S550
Skid Steer Loaders Bobcat S550

Visit Bobcat live at

Technical specs - S550 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.81 t
Rated operating capacity
896 kg
Standard tyres
10.00-16.5 10 PR
Bucket width
1.73 m
Bucket capacity
0.93 m³
Driver protection
KbR
Transport length
3.38 m
Transport width
1.73 m
Transport height
1.97 m
Travel speed
17.3 km/h
Max. discharge height
2.2 m
Model series
S
Engine manuf.
Kubota
Engine type
V2203-M-DI-E2B-BC-3
Engine power
36.4 kW
Displacement
2.196 l
Revolutions at max torque
1425 rpm
Max. torque
150 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, cylinder bore x stroke, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, engine manufacturer, engine model...

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, cylinder bore x stroke, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat S550 FAQ

When was the Bobcat S550 manufactured?

The Bobcat S550 was manufactured from 2013 to 2016.

How much does the Bobcat S550 weigh?

The Bobcat S550 weighs 2.81 tons.

What are the transport dimensions of the Bobcat S550 skid steer loader?

The Bobcat S550 has a transport length of 3.38 meters, a transport width of 1.73 meters, and a transport height of 1.97 meters.

What is the travel speed of the Bobcat S550 skid steer loader?

The Bobcat S550 has a travel speed of 17.3 km/h.

What are the undercarriage specifications of the Bobcat S550 skid steer loader?

The Bobcat S550 skid steer loader is equipped with standard tyres sized 10.00-16.5 10 PR.

What is the material handling capacity of the Bobcat S550 skid steer loader?

The Bobcat S550 has a rated operating capacity of 896 kg and a maximum discharge height of 2.2 meters.

What are the specifications of the primary work tool bucket on the Bobcat S550?

The primary work tool bucket of the Bobcat S550 has a capacity of 0.93 cubic meters and a width of 1.73 meters.

What operator safety and support features does the Bobcat S550 have?

The Bobcat S550 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat S550 Skid steer loader (2013u20132016) worth?

The residual value of the Bobcat S550 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
