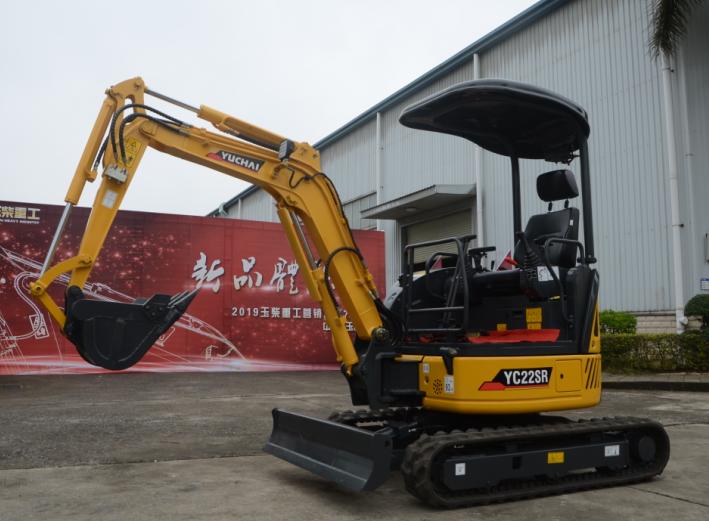

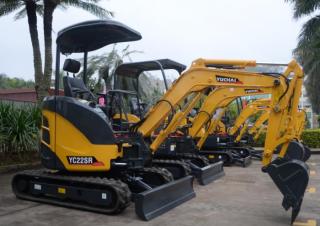

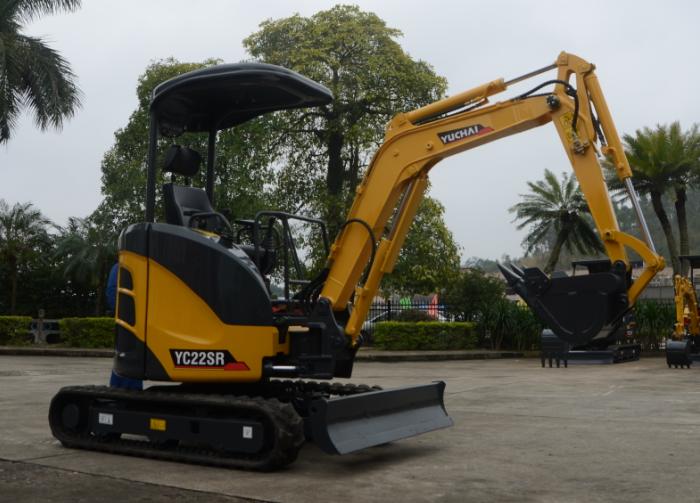

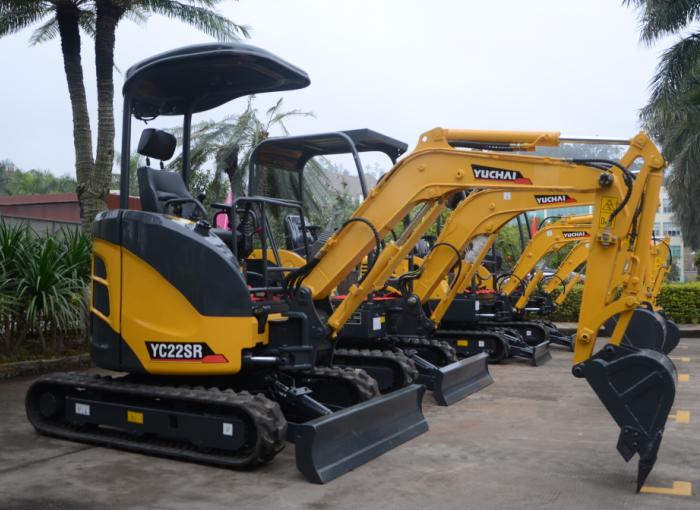

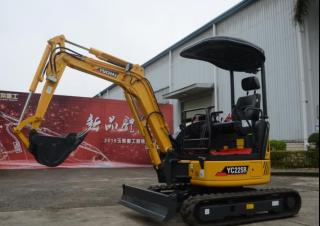

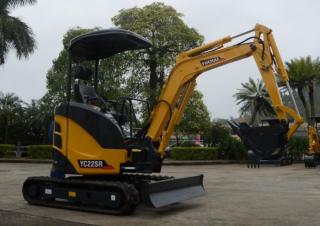

YC22SR Yuchai excavator specs & dimensions (2020 - 2026)

Yuchai YC22SR is a Mini Excavator manufactured since 2020. It has a weight of 2.2 t and a track width of 250 mm. The transport dim…

Yuchai YC22SR is a Mini Excavator manufactured since 2020. It has a weight of 2.2 t and a track width of 250 mm. The transport dimensions are 3.83 m in length, 1.45 m in width, and 2.49 m in height. The machine features a tear-out force of 19.1 kN, a dredging depth of 2.25 m, and a maximum horizontal reach of 4.06 m. The bucket width is 0.49 m with a capacity of 0.07 m³. Special equipment includes a blade and rubber track.

Mini Excavators Yuchai YC22SR
Mini Excavators Yuchai YC22SR
Mini Excavators Yuchai YC22SR
Mini Excavators Yuchai YC22SR
Mini Excavators Yuchai YC22SR
Mini Excavators Yuchai YC22SR

Technical specs - YC22SR Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.2 t
Transport length
3.83 m
Transport width
1.45 m
Transport height
2.49 m
Bucket capacity
0.07 m³
Bucket width
0.49 m
Track width
250 mm
Driver protection
FD
Max. Reach horizontal
4.06 m
Dredging depth
2.25 m
Tear-out force
19.1 kN
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
15.1 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Yuchai YC22SR FAQ

When was the Yuchai YC22SR manufactured?

The Yuchai YC22SR was first produced in 2020.

How much does the Yuchai YC22SR mini excavator weigh?

The Yuchai YC22SR mini excavator weighs 2.2 tons.

What are the transport dimensions of the Yuchai YC22SR mini excavator?

The Yuchai YC22SR has a transport length of 3.83 meters, a transport width of 1.45 meters, and a transport height of 2.49 meters.

What is the track width of the Yuchai YC22SR mini excavator?

The Yuchai YC22SR mini excavator has a track width of 250 mm.

What is the excavation performance of the Yuchai YC22SR mini excavator?

The Yuchai YC22SR mini excavator has a dredging depth of 2.25 meters and a maximum horizontal reach of 4.06 meters.

What are the power ratings of the Yuchai YC22SR mini excavator?

There are no power rating specifications available for the Yuchai YC22SR mini excavator in the provided data.

What are the specifications of the primary work tool bucket on the Yuchai YC22SR mini excavator?

The primary work tool bucket of the Yuchai YC22SR has a capacity of 0.07 cubic meters and a width of 0.49 meters.

What operator safety and support feature does the Yuchai YC22SR have?

The Yuchai YC22SR is equipped with a canopy for driver protection.
