YC08-8 Yuchai excavator specs & dimensions (2017 - 2026)

Yuchai YC08-8 is a mini excavator manufactured since 2017. It has a weight of 1.03 tons and a track width of 180 mm. The transport…

Yuchai YC08-8 is a mini excavator manufactured since 2017. It has a weight of 1.03 tons and a track width of 180 mm. The transport dimensions are 2.8 meters in length, 0.93 meters in width, and 2.3 meters in height. The machine features a tear-out force of 9.3 kN, a dredging depth of 1.415 meters, and a maximum horizontal reach of 2.726 meters. The bucket width is 0.4 meters with a maximum capacity of 0.02 cubic meters. It is equipped with a blade.

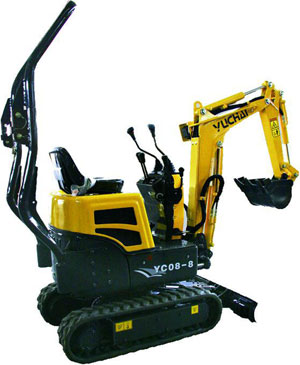

Mini Excavators Yuchai YC08-8

Technical specs - YC08-8 Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.03 t
Transport length
2.8 m
Transport width
0.93 m
Transport height
2.3 m
Bucket capacity max.
0.02 m³
Bucket width
0.4 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
2.726 m
Dredging depth
1.415 m
Tear-out force
9.3 kN
Engine manuf.
Yanmar
Engine type
2TNV70
Engine power
7.5 kW

More technical details, like: bucket capacity, bucket capacity min., standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yuchai YC08-8 FAQ

When was the Yuchai YC08-8 manufactured?

The Yuchai YC08-8 was first produced in 2017.

How much does the Yuchai YC08-8 mini excavator weigh?

The Yuchai YC08-8 mini excavator weighs 1.03 tons.

What are the transport dimensions of the Yuchai YC08-8 mini excavator?

The Yuchai YC08-8 has a transport length of 2.8 meters, a transport width of 0.93 meters, and a transport height of 2.3 meters.

What is the track width of the Yuchai YC08-8 mini excavator's undercarriage?

The Yuchai YC08-8 mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Yuchai YC08-8 mini excavator?

The Yuchai YC08-8 mini excavator has a dredging depth of 1.415 meters and a maximum horizontal reach of 2.726 meters.

What is the tear-out force of the Yuchai YC08-8 mini excavator?

The Yuchai YC08-8 mini excavator has a tear-out force of 9.3 kN.

What are the bucket specifications of the Yuchai YC08-8 mini excavator?

The Yuchai YC08-8 has a maximum bucket capacity of 0.02 cubic meters and a bucket width of 0.4 meters.

What operator safety and support features does the Yuchai YC08-8 have?

The Yuchai YC08-8 is equipped with a roll-over bar for driver protection.
