YTO40B YTO excavator specs & dimensions (2020 - 2026)

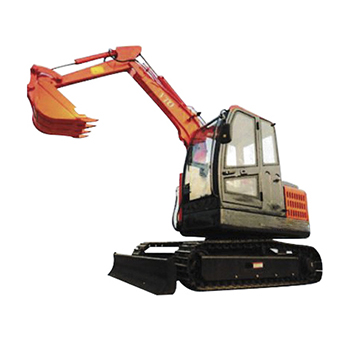

YTO YTO40B is a mini excavator manufactured since 2020. It has a weight of 3.68 tons and a track width of 350 mm. The transport di…

YTO YTO40B is a mini excavator manufactured since 2020. It has a weight of 3.68 tons and a track width of 350 mm. The transport dimensions are 4.75 meters in length, 2 meters in width, and 2.26 meters in height. The machine features a tear-out force of 55.6 kN, a dredging depth of 2.95 meters, and a maximum horizontal reach of 4.73 meters. The bucket capacity ranges from 0.1 m³ to 0.25 m³. Special equipment includes a blade.

Mini Excavators YTO YTO40B

Technical specs - YTO40B YTO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.68 t
Transport length
4.75 m
Transport width
2 m
Transport height
2.26 m
Bucket capacity
0.25 m³
Bucket capacity min.
0.1 m³
Bucket capacity max.
0.25 m³
Track width
350 mm
Max. Reach horizontal
4.73 m
Dredging depth
2.95 m
Tear-out force
55.6 kN
Model series
YT
Engine manuf.
Yanmar
Engine type
4TNV88-B
Engine power
25.2 kW
Max. torque
112 Nm
No. of cylinders
4
Emission level
Euro-Ⅲ-A

More technical details, like: bucket width, standard tyres, driver protection, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

YTO YTO40B FAQ

When was the YTO YTO40B manufactured?

The YTO YTO40B was first produced in 2020.

How much does the YTO YTO40B mini excavator weigh?

The YTO YTO40B mini excavator weighs 3.68 tons.

What are the transport dimensions of the YTO YTO40B mini excavator?

The YTO YTO40B has transport dimensions of 4.75 meters in length, 2 meters in width, and 2.26 meters in height.

What is the track width of the YTO YTO40B mini excavator?

The YTO YTO40B mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the YTO YTO40B mini excavator?

The YTO YTO40B mini excavator has a dredging depth of 2.95 meters and a maximum horizontal reach of 4.73 meters.

What is the tear-out force of the YTO YTO40B mini excavator?

The YTO YTO40B mini excavator has a tear-out force of 55.6 kN.

What are the bucket capacity specifications of the YTO YTO40B mini excavator?

The YTO YTO40B has a bucket capacity of 0.25 cubic meters, with a maximum capacity of 0.25 cubic meters and a minimum capacity of 0.1 cubic meters.
