ViO57-6B Yanmar excavator specs & dimensions (2024 - 2026)

Weight: 5.505t – Transport length: 6.075m – Transport width: 1.99m – Transport height: 2.54m – Track width: 400mm – Driver protect…

Weight: 5.505t – Transport length: 6.075m – Transport width: 1.99m – Transport height: 2.54m – Track width: 400mm – Driver protection: Kb

Check out detailed specifications, information and technical data for Yanmar ViO57-6B excavator manufactured between 2024 - 2026. Get more in-depth insight with Yanmar ViO57-6B digger specifications. See information, like: Weight: 5.505t – Transport length: 6.075m – Transport width: 1.99m – Transport height: 2.54m – Track width: 400mm – Driver protection: Kb and more.

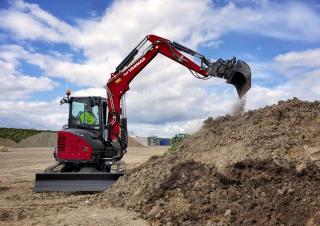

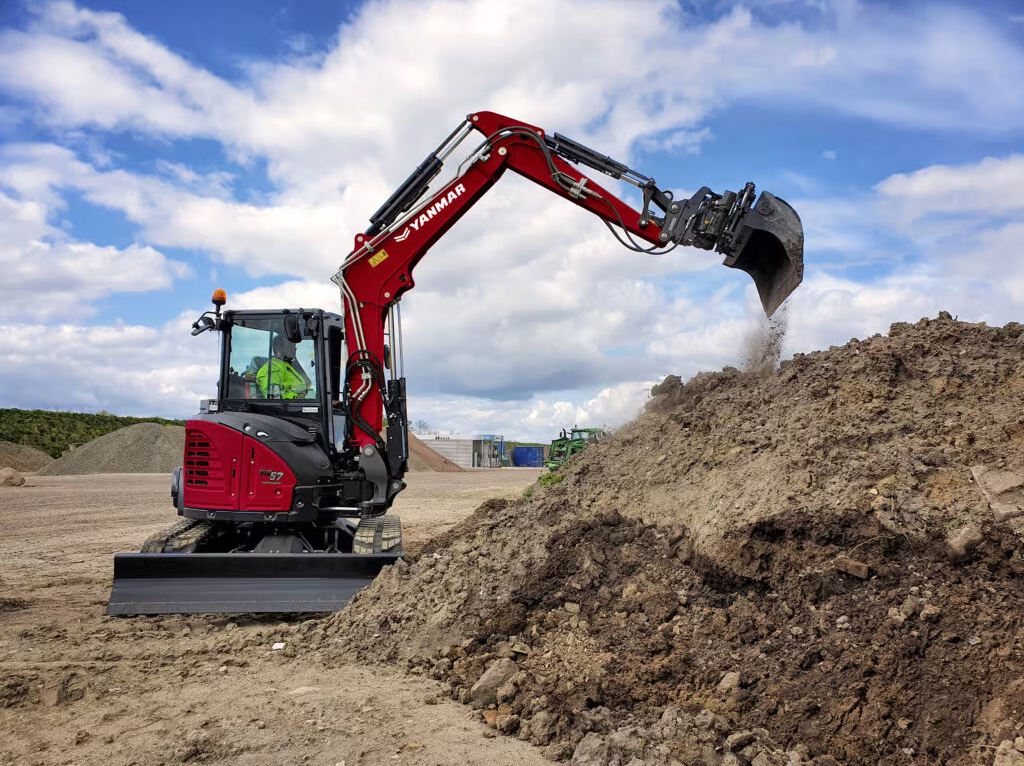

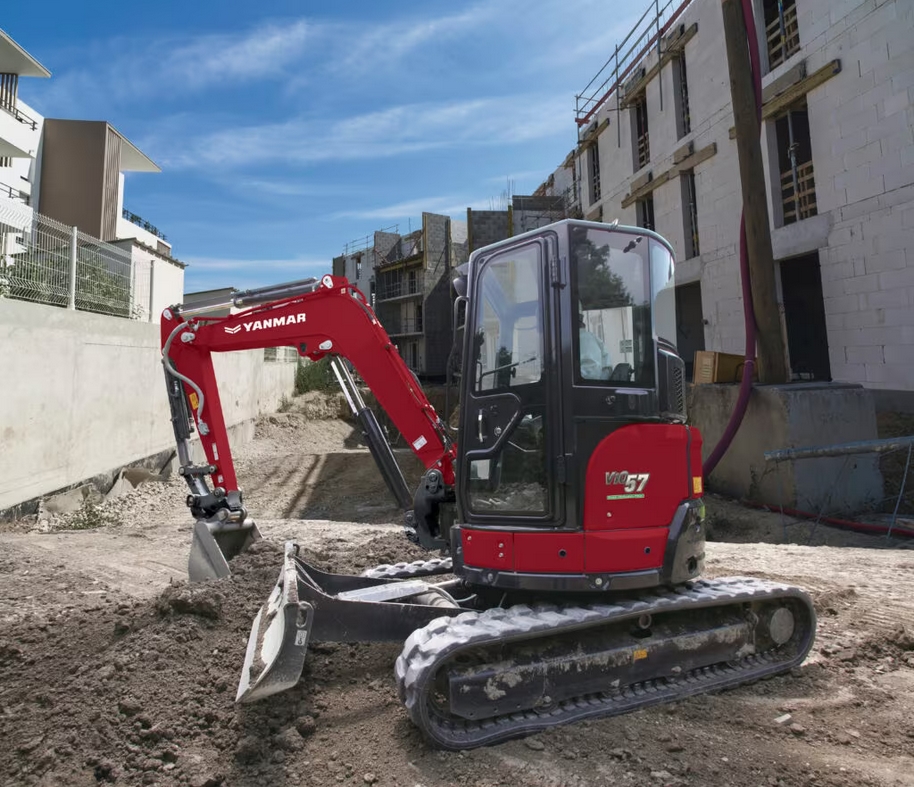

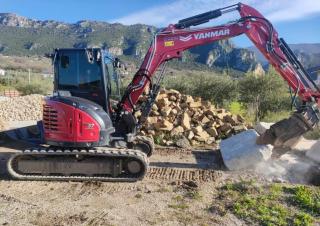

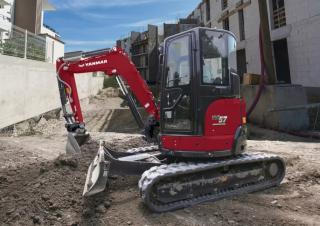

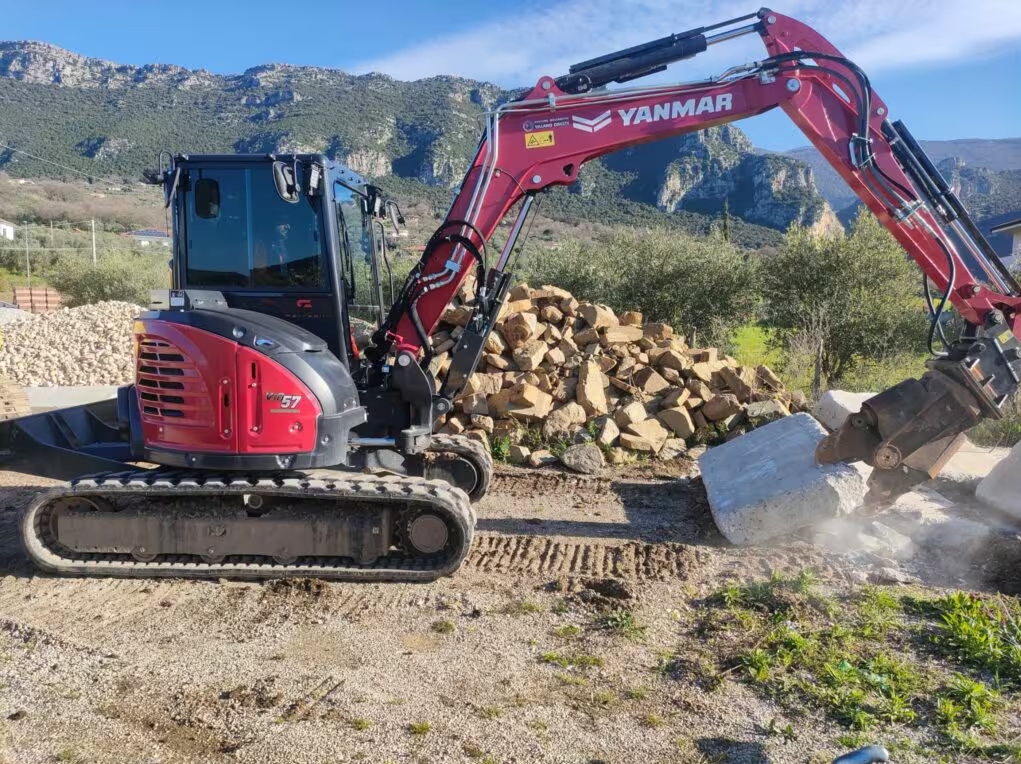

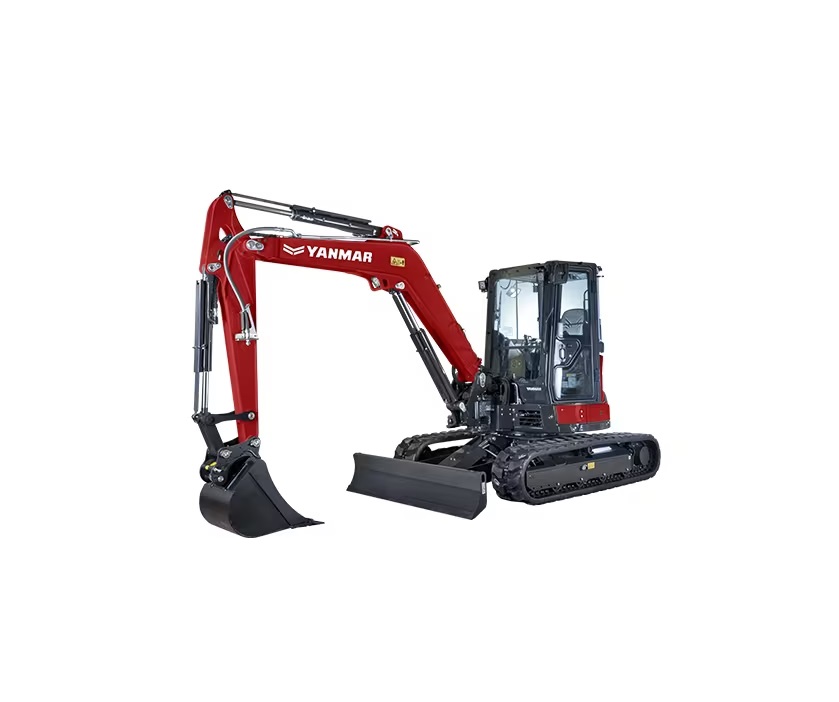

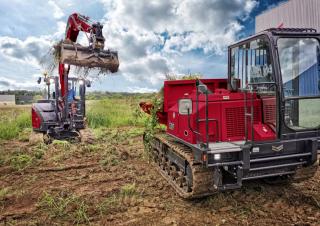

Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B
Mini Excavators Yanmar ViO57-6B

Technical specs - ViO57-6B Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.505 t
Transport length
6.075 m
Transport width
1.99 m
Transport height
2.54 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.91 m
Dredging depth
3.9 m
Tear-out force
41.9 kN
Model series
ViO
Engine manuf.
Yanmar
Engine type
4TNV88C-PBV
Engine power
33.5 kW
Displacement
2.091 l
Revolutions at max torque
2200 rpm
Max. torque
176.6 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar ViO57-6B FAQ

When was the Yanmar ViO 57-6B manufactured?

The Yanmar ViO 57-6B was first produced in 2024.

How much does the Yanmar ViO 57-6B weigh?

The Yanmar ViO 57-6B weighs 5.505 tons.

What are the transport dimensions of the Yanmar ViO 57-6B mini excavator?

The Yanmar ViO 57-6B has a transport length of 6.075 meters, a transport width of 1.99 meters, and a transport height of 2.54 meters.

What is the track width of the Yanmar ViO 57-6B mini excavator?

The Yanmar ViO 57-6B mini excavator has a track width of 400 mm.

What are the dredging depth and maximum horizontal reach of the Yanmar ViO 57-6B mini excavator?

The Yanmar ViO 57-6B has a dredging depth of 3.9 meters and a maximum horizontal reach of 5.91 meters.

What is the tear-out force of the Yanmar ViO 57-6B mini excavator?

The Yanmar ViO 57-6B has a tear-out force of 41.9 kN.

What operator safety and support features does the Yanmar ViO 57-6B have?

The Yanmar ViO 57-6B provides operator protection with a cabin.
