ViO55-6A Yanmar excavator specs & dimensions (2022 - 2026)

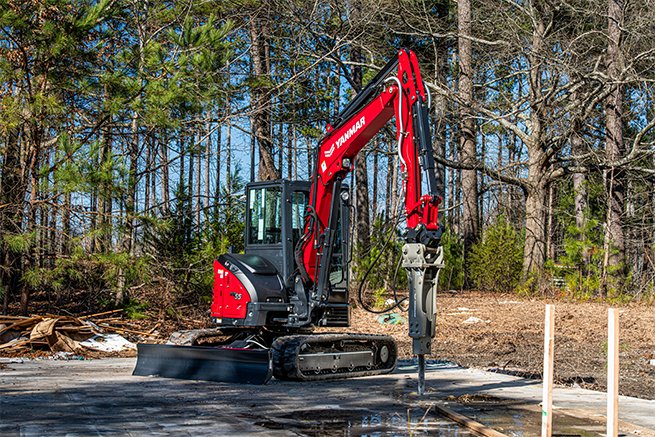

Yanmar ViO55-6A is a mini excavator manufactured since 2022, with a weight of 5.55 tons. It features a track width of 400 mm, a tr…

Yanmar ViO55-6A is a mini excavator manufactured since 2022, with a weight of 5.55 tons. It features a track width of 400 mm, a transport length of 5.58 meters, a transport width of 1.99 meters, and a transport height of 2.54 meters. The machine has a tear-out force of 41.9 kN, a dredging depth of 4.115 meters, and a maximum horizontal reach of 6.14 meters. Special equipment includes a blade, quick hitch hydraulic, and rubber tracks.

Mini Excavators Yanmar ViO55-6A

Technical specs - ViO55-6A Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.55 t
Transport length
5.58 m
Transport width
1.99 m
Transport height
2.54 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.14 m
Dredging depth
4.115 m
Tear-out force
41.9 kN
Engine manuf.
Yanmar
Engine type
4TNV86CT-PBV
Engine power
35.5 kW
Revolutions at max torque
2400 rpm
No. of cylinders
4
Emission level
Tier 4 Final

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar ViO55-6A FAQ

When was the Yanmar ViO55-6A manufactured?

The Yanmar ViO55-6A was first produced in 2022.

How much does the Yanmar ViO55-6A weigh?

The Yanmar ViO55-6A weighs 5.55 tons.

What are the transport dimensions of the Yanmar ViO55-6A mini excavator?

The Yanmar ViO55-6A has a transport length of 5.58 meters, a transport width of 1.99 meters, and a transport height of 2.54 meters.

What is the track width of the Yanmar ViO55-6A mini excavator?

The Yanmar ViO55-6A mini excavator has a track width of 400 mm.

What is the excavation performance of the Yanmar ViO55-6A mini excavator?

The Yanmar ViO55-6A mini excavator has a dredging depth of 4.115 meters and a maximum horizontal reach of 6.14 meters.

What is the tear-out force of the Yanmar ViO55-6A mini excavator?

The Yanmar ViO55-6A has a tear-out force of 41.9 kN.

What operator safety features does the Yanmar ViO55-6A have?

The Yanmar ViO55-6A has driver protection in the form of a cabin.

How much is a Yanmar ViO55-6A Mini excavator (2022u20132025) worth?

The residual value of the Yanmar ViO55-6A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
