VIO 50 Yanmar excavator specs & dimensions (2015 - 2017)

Yanmar VIO 50 is a mini excavator manufactured from 2015 to 2017, with a weight of 4.7 tons. It features a track width of 350 mm, …

Yanmar VIO 50 is a mini excavator manufactured from 2015 to 2017, with a weight of 4.7 tons. It features a track width of 350 mm, a transport length of 5.25 meters, a transport width of 1.97 meters, and a transport height of 2.64 meters. The dredging depth is 3.55 meters, and the maximum horizontal reach is 3.89 meters. Special equipment includes a blade and rubber tracks.

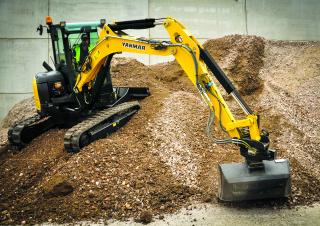

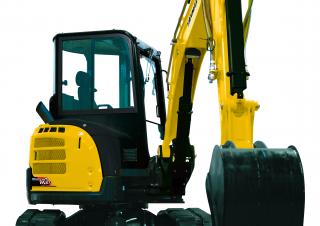

Mini Excavators Yanmar VIO 50
Mini Excavators Yanmar VIO 50
Mini Excavators Yanmar VIO 50
Mini Excavators Yanmar VIO 50

Technical specs - VIO 50 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.7 t
Transport length
5.25 m
Transport width
1.97 m
Transport height
2.64 m
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
3.89 m
Dredging depth
3.55 m
Model series
VIO
Engine manuf.
Yanmar
Engine type
4TNV88
Engine power
30 kW
Displacement
2.189 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Yanmar VIO 50 FAQ

When was the Yanmar VIO 50 manufactured?

The Yanmar VIO 50 was manufactured from 2015 to 2017.

How much does the Yanmar VIO 50 weigh?

The Yanmar VIO 50 weighs 4.7 tons.

What are the transport dimensions of the Yanmar VIO 50 mini excavator?

The Yanmar VIO 50 has a transport length of 5.25 meters, a transport width of 1.97 meters, and a transport height of 2.64 meters.

What is the track width of the Yanmar VIO 50 mini excavator's undercarriage?

The Yanmar VIO 50 mini excavator has a track width of 350 mm.

What are the dredging depth and maximum horizontal reach of the Yanmar VIO 50 mini excavator?

The Yanmar VIO 50 has a dredging depth of 3.55 meters and a maximum horizontal reach of 3.89 meters.

What operator safety and support features does the Yanmar VIO 50 have?

The Yanmar VIO 50 provides operator safety through a protective cabin.
