SV18 Yanmar excavator specs & dimensions (2019 - 2021)

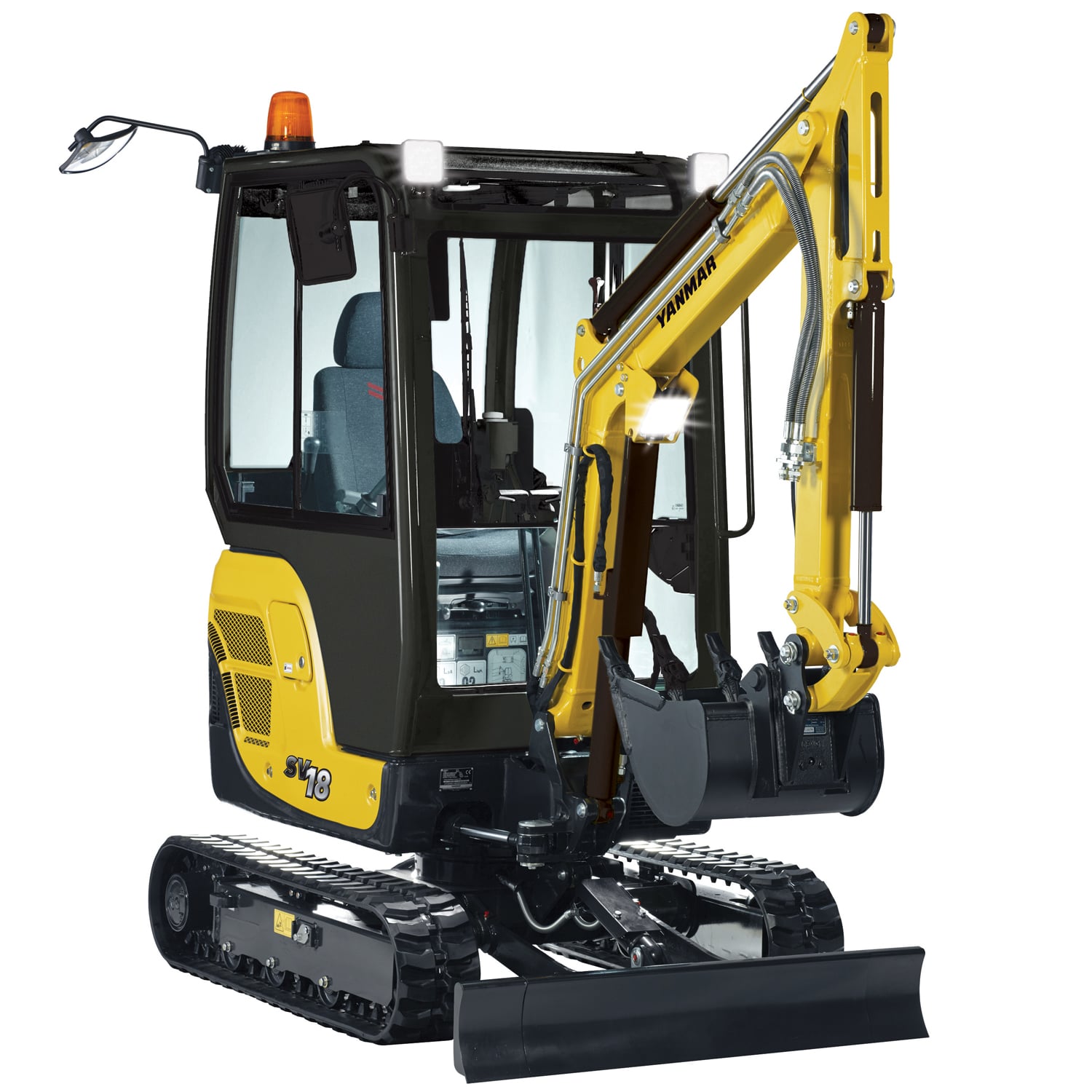

Yanmar SV18 is a mini excavator manufactured from 2019 to 2021, with a weight of 1.97 tons. It features a track width of 230 mm, a…

Yanmar SV18 is a mini excavator manufactured from 2019 to 2021, with a weight of 1.97 tons. It features a track width of 230 mm, a transport length of 3.77 meters, a transport width of 0.98 meters, and a transport height of 2.21 meters. The machine has a tear-out force of 7.4 kN, a dredging depth of 2.58 meters, and a maximum horizontal reach of 3.95 meters. It comes equipped with a blade and rubber tracks.

Mini Excavators Yanmar SV18

Technical specs - SV18 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.97 t
Transport length
3.77 m
Transport width
0.98 m
Transport height
2.21 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.95 m
Dredging depth
2.58 m
Tear-out force
7.4 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
3TNV70-VBA2
Engine power
9.5 kW
Displacement
0.854 l
Revolutions at max torque
1500 rpm
Max. torque
51.4 Nm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV18 FAQ

When was the Yanmar SV18 manufactured?

The Yanmar SV18 was manufactured from 2019 to 2021.

How much does the Yanmar SV18 mini excavator weigh?

The Yanmar SV18 mini excavator weighs 1.97 tons.

What are the transport dimensions of the Yanmar SV18 mini excavator?

The Yanmar SV18 mini excavator has a transport length of 3.77 meters, a transport width of 0.98 meters, and a transport height of 2.21 meters.

What is the track width of the Yanmar SV18 mini excavator?

The Yanmar SV18 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Yanmar SV18 mini excavator?

The Yanmar SV18 mini excavator has a dredging depth of 2.58 meters and a maximum horizontal reach of 3.95 meters.

What is the tear-out force of the Yanmar SV18 mini excavator?

The Yanmar SV18 mini excavator has a tear-out force of 7.4 kN.

What operator safety and support features does the Yanmar SV18 have?

The Yanmar SV18 provides operator safety through a protective cabin.
