SV17VT Yanmar excavator specs & dimensions (2021 - 2026)

Yanmar SV17VT is a mini excavator manufactured since 2021, with a weight of 1.66 tons. It has a track width of 500 mm, a transport…

Yanmar SV17VT is a mini excavator manufactured since 2021, with a weight of 1.66 tons. It has a track width of 500 mm, a transport length of 7.64 meters, a transport width of 1.32 meters, and a transport height of 2.75 meters.

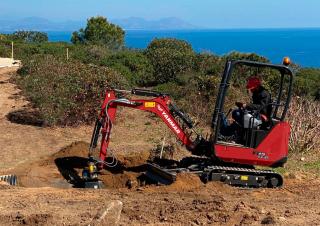

Mini Excavators Yanmar SV17VT
Mini Excavators Yanmar SV17VT
Mini Excavators Yanmar SV17VT
Mini Excavators Yanmar SV17VT

Technical specs - SV17VT Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.7 t
Transport length
4.03 m
Transport width
1.32 m
Transport height
2.32 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
4 m
Dredging depth
2.755 m
Tear-out force
16 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
3TNV70-PBVA
Engine power
11.3 kW
Displacement
0.854 l
Revolutions at max torque
2400 rpm
Max. torque
53.2 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV17VT FAQ

When was the Yanmar SV17VT manufactured?

The Yanmar SV17VT was first produced in 2021.

How much does the Yanmar SV17VT mini excavator weigh?

The Yanmar SV17VT mini excavator weighs 1.7 tons.

What are the transport dimensions of the Yanmar SV17VT mini excavator?

The Yanmar SV17VT has a transport length of 4.03 meters, a transport width of 1.32 meters, and a transport height of 2.32 meters.

What is the track width of the Yanmar SV17VT mini excavator?

The Yanmar SV17VT mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Yanmar SV17VT mini excavator?

The Yanmar SV17VT mini excavator has a dredging depth of 2.755 meters and a maximum horizontal reach of 4 meters.

What is the tear-out force of the Yanmar SV17VT mini excavator?

The source data does not provide power ratings for the Yanmar SV17VT mini excavator, but it has a tear-out force of 16 kN.

What operator safety and support features does the Yanmar SV17VT have?

The Yanmar SV17VT is equipped with a canopy for driver protection.
