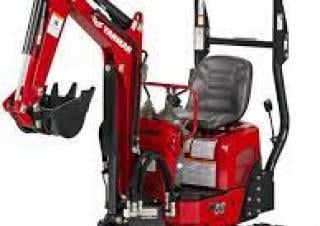

SV08-1D Yanmar excavator specs & dimensions (2021 - 2026)

Yanmar SV08-1D is a mini excavator manufactured since 2021, with a weight of 1.065 tons. It features a track width of 180 mm, a tr…

Yanmar SV08-1D is a mini excavator manufactured since 2021, with a weight of 1.065 tons. It features a track width of 180 mm, a transport length of 2.6 meters, a transport width of 0.84 meters, and a transport height of 2.2 meters. The machine has a tear-out force of 10.5 kN.

SV08-1D

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - SV08-1D Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.065 t

Transport length: 2.6 m

Transport width: 0.84 m

Transport height: 2.2 m

Track width: 180 mm

Driver protection: Ü

Tear-out force: 10.5 kN

Engine manuf.: N/A

Engine type: 402F-05 EG84548R

Engine power: 7.7 kW

No. of cylinders: 2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque...

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

SV08-1D Yanmar Specification for North America (EN)

Yanmar SV08-1D FAQ

When was the Yanmar SV08-1D manufactured?

The Yanmar SV08-1D was first produced in 2021.

How much does the Yanmar SV08-1D weigh?

The Yanmar SV08-1D weighs 1.07 tons.

What are the transport dimensions of the Yanmar SV08-1D mini excavator?

The Yanmar SV08-1D has a transport length of 2.6 meters, a transport width of 0.84 meters, and a transport height of 2.2 meters.

What is the track width of the Yanmar SV08-1D mini excavator?

The Yanmar SV08-1D mini excavator has a track width of 180 mm.

What is the tear-out force of the Yanmar SV08-1D mini excavator?

The Yanmar SV08-1D mini excavator has a tear-out force of 10.5 kN.

What operator safety and support features does the Yanmar SV08-1D have?

The Yanmar SV08-1D is equipped with a roll-over bar for driver protection.

How much is a Yanmar SV08-1D Mini excavator (2021u20132025) worth?

The residual value of the Yanmar SV08-1D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Yanmar SV08-1D overview

Hydraulics

SV08-1D
POWERFUL, EFFICIENT 10.3 HP ANIMAL 4 FINAL DIESEL ENGINE TWO WIGHT CONTROL PATTERS CHANGE STANDARD AUXILIARY HYDRAULIKS WITH PROPORTIONAL CONTROL STRACTABLE UNDERCarriage OPERATOR-Friendly INTUITIVE LEVER CONTROL OPERATOR PEACETIGER Intuitive LEVER CONTROLS COMFORSTABLE, ADJUSTABLE OPERATOR SEAT protected BOOM CYLINDERS AND HYDRAULIC STEPS 5.2 GPM AURXILIARY HYDRAULIKEN

Dimensions and weight

Operating Weight	Rubber track	bs (t)	2	348 (1.07)"
Engine	Type		Water-cooled 2-cylinder diesel
Model		402F-05 EG84548R
Output	HP (kW)/rpm	10.3 (7.7) / 2	800"
Performance	Max Digging Force	Bucket / Arm"	Ibs (kN)	2	360 (10.5) / 1	390 (6.2)"
Traveling Speed	MPH (km / h)	1.12 (1.B)
Swing Speed	RPM	8.4
Boom Swing Angle	(L/ R)"	degrees	45""/90"""
Ground Contact Pressure (Rubber Track)	PSI (kPa)	4.15 (28.4)
Hydraulic System	Pump Capacity	GPM (L / min)	5.2 (19.7)
Main Relief Set Pressure	PSI (MPa)	2	625 (18.1) x 2"
Blade Dimensions	Width x height	ft-in (mm)	2'3"" / 2'9"" x 7"" (680 / 840 x 180)"
Fuel tank capacity	Gals (L)	2.6 (10)

Tables

h:in (mm)		CAPACITY OVER DOWN lbs (kg)		lbs (kg)	lbs (kg)
,MAX,"6´7˝ (2,000)	4´11˝ (1,500)",MIN,MAX,"6´7˝ (2,000)	4´11˝ (1,500)",MIN,MAX,"6´7˝ (2,000)	4´11˝ (1,500)",MIN
6´7˝	(2	000)"	485(220)				419(190)				353(160)
4´11˝	(1	500)"	485(220)	485(220)	595(270)		331(150)	375(170)	529(240)		265(120)	331(150)	441(200)
3´3˝	(500)	507(230)	573(260)	772(350)	1	080(490)"	287(130)	375(170)	617(280)	838(380)	243(110)	309(140)	507(230)	662(300)
1´8˝,(500),529(240),662(300),"1,036(470)	1,301(590)",287(130),375(170),573(260),706(320),221(100),287(130),463(210),573(260)
Ground,(0),529(240),706(320),"1,058(480)	1,389(630)",309(140),375(170),573(260),750(340),243(110),287(130),463(210),595(270)
-1´8˝	(-500)	573(260)	617(280)	948(430)		375(170)	353(160)	595(270)		287(130)	287(130)	463(210)
-3´3˝	(-1	000)"	507(230)				507(230)				463(210)

Model		SV08-1D
Output Specification	PSI (MPa)	GPM (L / min)
2	400RPM"
Combined Flow, Double Actions	2,625 (18.1)",5.2 (19.7)
