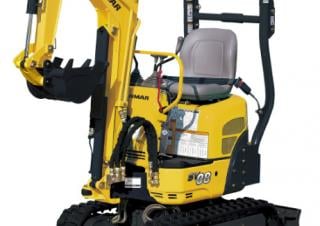

SV08-1A Yanmar excavator specs & dimensions (2019 - 2021)

Yanmar SV08-1A is a mini excavator manufactured from 2019 to 2021. It has a weight of 1.03 tons and a track width of 180 mm. The t…

Yanmar SV08-1A is a mini excavator manufactured from 2019 to 2021. It has a weight of 1.03 tons and a track width of 180 mm. The transport dimensions are 2.6 meters in length, 0.68 meters in width, and 2.2 meters in height. The machine features a tear-out force of 10.5 kN, a dredging depth of 1.5 meters, and a maximum horizontal reach of 5.89 meters. The bucket capacity is 0.02 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Yanmar SV08-1A

Technical specs - SV08-1A Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.03 t
Transport length
2.6 m
Transport width
0.68 m
Transport height
2.2 m
Bucket capacity max.
0.02 m³
Track width
180 mm
Driver protection
FD
Max. Reach horizontal
5.89 m
Dredging depth
1.5 m
Tear-out force
10.5 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
2TE67L-BV3
Engine power
7.7 kW

More technical details, like: bucket capacity, bucket capacity min., bucket width, standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV08-1A FAQ

When was the Yanmar SV08-1A manufactured?

The Yanmar SV08-1A was manufactured from 2019 to 2021.

What is the weight of the Yanmar SV08-1A mini excavator?

The Yanmar SV08-1A mini excavator weighs 1.03 tons.

What are the transport dimensions of the Yanmar SV08-1A mini excavator?

The Yanmar SV08-1A has a transport length of 2.6 meters, a transport width of 0.68 meters, and a transport height of 2.2 meters.

What is the track width of the Yanmar SV08-1A mini excavator?

The Yanmar SV08-1A mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Yanmar SV08-1A mini excavator?

The Yanmar SV08-1A mini excavator has a dredging depth of 1.5 meters and a maximum horizontal reach of 5.89 meters.

What is the tear-out force of the Yanmar SV08-1A mini excavator?

The Yanmar SV08-1A mini excavator has a tear-out force of 10.5 kN.

What is the maximum bucket capacity of the Yanmar SV08-1A mini excavator?

The maximum bucket capacity of the Yanmar SV08-1A mini excavator is 0.02 cubic meters.

What operator safety and support features does the Yanmar SV08-1A have?

The Yanmar SV08-1A provides operator protection with a canopy.

How much is a Yanmar SV08-1A Mini excavator (2019u20132021) worth?

The residual value of the Yanmar SV08-1A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Yanmar SV08-1A overview

Dimensions and weight

ModelSV08-1A
TypeVariable track gauge type
Operating WeightOperating masskg〈lbs〉1035〈2282〉
Machine mass(without implement)kg〈lbs〉675〈1488〉
EngineType-Vertical two cylinder water-cooled diesel engine
Model-2TE67L-BV3
Rated outputkW/rpm〈hp〉7.7〈10.3〉 / 2400
PerformanceBucket capacity standard (ISO heaped)"cu.m〈cu.ft〉0.022〈0.777〉
Max Digging ForcekN〈lbf〉10.5 〈2360〉
Traveling Speedkm/h〈MPH〉1.8〈1.2〉
Swing Speedrpm8.4
Boom Swing Angle (L / R)"degrees45º / 90º
Ground Contact PressureAverage ground pressure standard crawler"kPa〈PSI〉28.8〈4.18〉
Hydraulic SystemPump CapacityL/min〈GPM〉9.8〈2.59〉× 2 (Gear pump)
Main Relief Set PressureMPa〈PSI〉18.1〈2625〉 × 2
UndercarriageTrack Type-Rubber
Blade DimensionsWidth x Heightmm〈ft-in〉680 / 840 × 180〈2'3"" / 2'9"" × 7""〉"
Fuel tank capacityL〈Gals〉9.7〈2.6〉

Tables

ABCDEFGH-JKLMN0PQRS
SV08-1A,"1500 <4'11"">1620 <5'4"">1260 <4'2"">2730 <8'11"">2600 <8'6"">",1220 <4'>,2750 (9),"1950 (6'5"">1180 <3'10"">2200 <7'3"">180 (7"">680 -840 (2'3""-2'9"">180 <7"">130 <5"">230-310 (9""-1'>540 <1'9"">330 <1'1"">140-220 <6""-9"">725 (2'5"")"
ModelSV08-1A
SpecificationOutputMPa L / min
2400RPM
Combined Flow Double Actions"18.1 <2625>19.6 <5.2)
