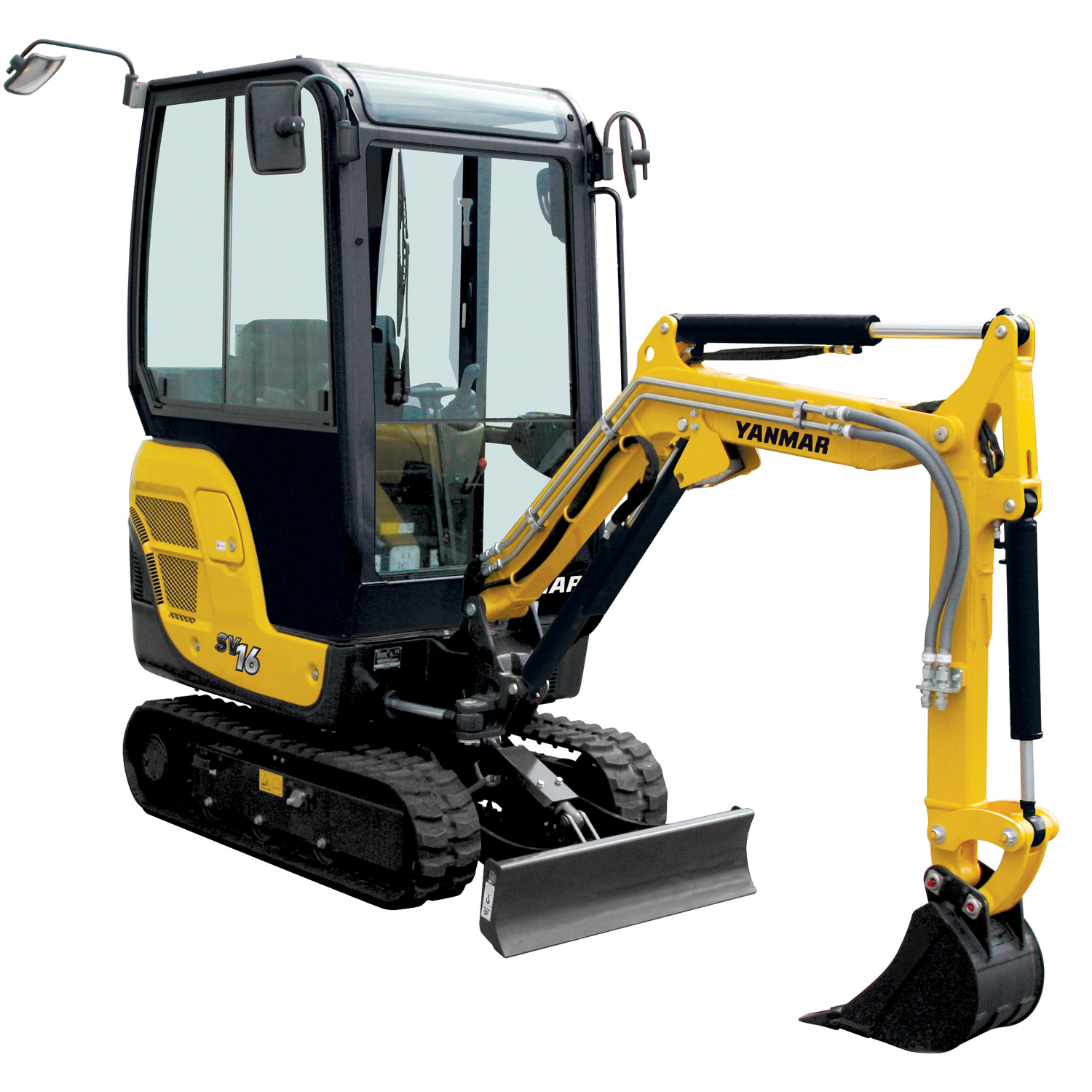

SV 16 PR 02 Yanmar excavator specs & dimensions (2014 - 2021)

BEST COMPONENTS
design and performance of components for heavy-duty jobsites and a long service life.
COMFORT
The SV16 cab interior architecture has been studied to improve operator position and facilitate its work, particularly on the long and demanding construction sites.

Designed to combine high power and cleaner emissions, the YANMAR TNV engine meets European Commission (EC) emission standards with its sophisticated injection system.

Rear and side covers, panel under the seat and removable floor The rear and side covers, panel underneath the seat and removable floor provide direct access to service points reducing maintenance time allowing direct access to servicing points for reduction of maintenance times and costs.The flexible blade cylinder consists of two parts for quick replacement in price.
SAFETY AND DURABILITY
Handrail safety levers - Seat belt – Hammer for evacuation 3 Mirrors– Horn 4 anchor points (2 on undercarriage, 2 on blade)‐ Blade cylinder supply hose in two parts—Complete protection of cylinders (blade, boom and arm) − Hoses protected by abrasion resistant and projection resistant sleeves · cationic treatment of steel parts • Lockable engine hood and drop door of the fuel tank.

COMPACTNESS
Designed to deliver excellent performance in a compact design, the SV16 combines power, ease and stability to make your work day easier and more productive.
EASE OF USE
Ideally located, the second gear control knob (located on the blade lever) and the control levers offer exceptional movement precision. A proportional control auxiliary line allows for perfect mastery of accessories.
Flow-Sharing closed-center hydraulic system
The SV16 hydraulic circuit is characterised by the proportional distribution of flow rates. This system guarantees precision, flexibility, performance and perfect simultaneity of movements. It allows the operator to perform all movements with an excellent power, regardless of the flow rate or load. Joysticks are very easy to handle and make machine operation even easier.
[ ACCESSORIES ]
Yanmar gives you the accessories that meet your needs and comply with safety standards applicable in your country: mechanical quick hitch, hydraulic quick hitch, digging bucket, swing shovel, backhoe bucket, hydraulic hammer...

COMFORT
3TNV70-XBVA2 Yanmar diesele Meets EN Standards ] Indirect Injection • Water Separator• LUDV Hydraulic Circuit: fl ow Sharing ■ 1 Auxiliary circuit with proportional control· 2nd speed · Hydraulic oil indicator ● 1 integrated LED light LCD interface 8th heater 7. Fabric covered, adjustable and refoldable seat.
EQUIPMENT AND PERFORMANCE
Special paintLength arm (+ 200 mm) - potentiometer on 3rd circuit Quick Couplers Bio oil 2 LED front lights on cab 1 LED rear light + fl ashing LED beacon An LED lighting system

Large comfortable cabin
The interior of the SV16 cab is very spacious for maximum freedom of movement. The large legroom allows the operator to work comfortably over long hours.
Excellent air circulation
The SV16 is equipped as standard with a comfortable seat with multiple adjustment options. The SV16 features a heater that can work in extreme weather conditions at pleasant temperature. Ventilation vents are placed to ensure an even temperature inside the cab, ensuring perfect window escape.
DIGITAL INTERFACE
The SV16 is equipped with a digital interface, which informs the operator in real time about the status of its machine. Perfectly integrated into the right-hand console, the 3.3 screen provides excellent visibility. The interface delivers useful information to the customer through LED lamps or references to important elements such as fuel consumption, fuel gauge, coolant temperature indicator etc. The interface assists the customer during maintenance intervals and for programming such interventions. It also functions as a diagnostic tool in case of malfunction by sending an error code and info symbol to the display.
AND SAFE WORK
The SV16 is equipped with 3 rear and side view mirrors. The operator can control the working range as well as the area around the machine without moving from his seat. To be able to work efficiently and accurately in darkness, the SV16 comes with a standard LED light located in the lower part of the boom where it's protected from shocks. LED technology provides powerful light while reducing energy consumption increasing battery life. Optionally one lamp and 3 additional LED lamps can be added.

The use of a ROPS structure for the cab guarantees operator safety in an overstroke. The canopy and cabin also comply with FOPS1 standards (concerning structures protecting against falling objects) and TOPS (tip on protective structures).
SECURITY
Because you are more effective in a safe environment, operator and employee safety around the machine is one of our priorities.
SAFETY AND DURABILITY
Safety valves for lifting anti-theft (button/keypad)
