EZ38 Wacker Neuson excavator specs & dimensions (2014 - 2018)

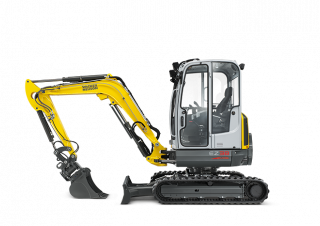

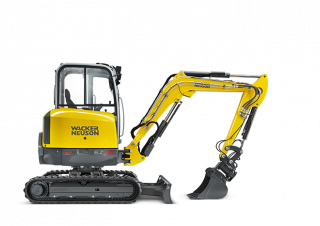

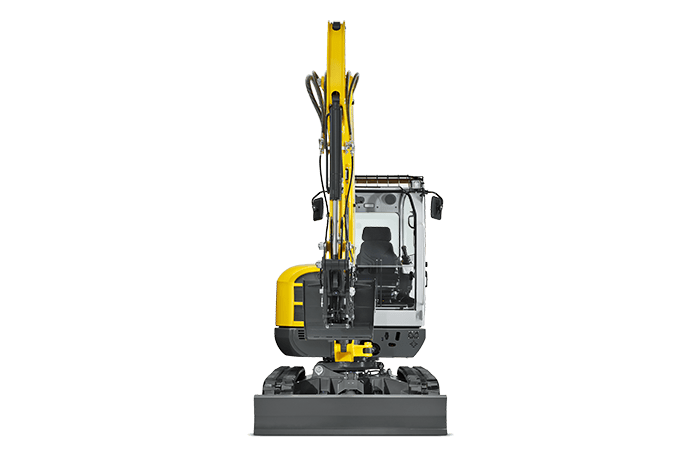

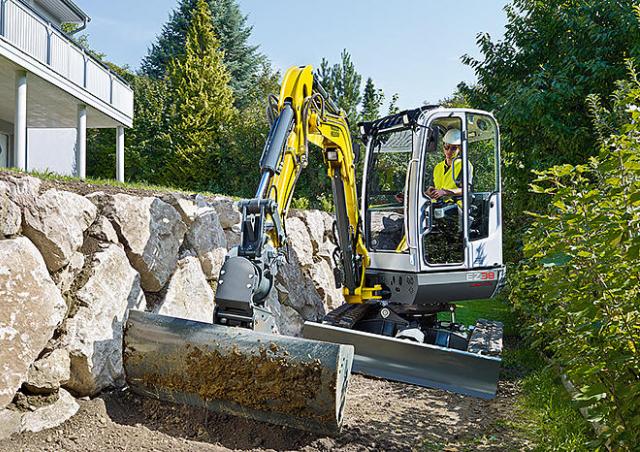

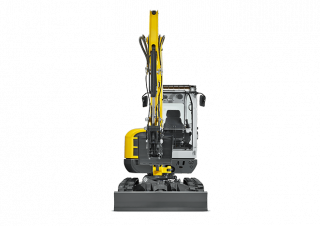

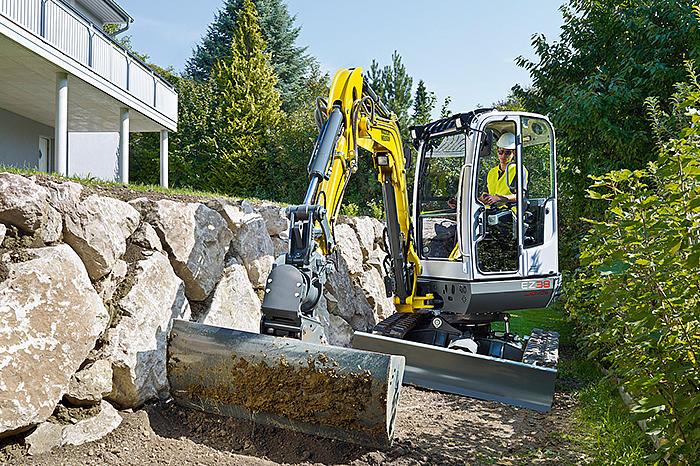

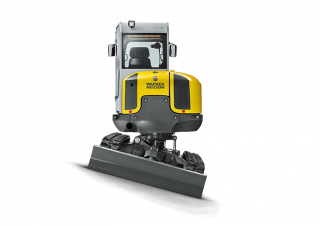

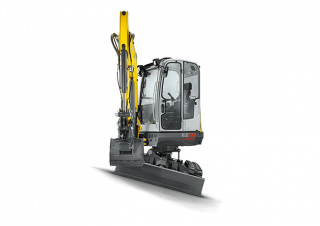

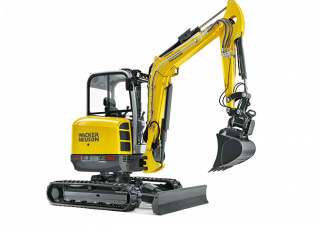

Wacker Neuson EZ38 is a mini excavator manufactured from 2014 to 2018. It has a weight of 4.1 tons and a track width of 300 mm. Th…

Wacker Neuson EZ38 is a mini excavator manufactured from 2014 to 2018. It has a weight of 4.1 tons and a track width of 300 mm. The transport dimensions are 4.8 meters in length, 1.74 meters in width, and 2.5 meters in height. The bucket width is 0.7 meters, and it is equipped with a blade.

Visit Wacker Neuson live at

EZ38

Years of manufacture: 2014—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - EZ38 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.1 t

Transport length: 4.8 m

Transport width: 1.74 m

Transport height: 2.5 m

Bucket width: 0.7 m

Track width: 300 mm

Driver protection: FD

Max. Reach horizontal: 5.19 m

Dredging depth: 3.11 m

Tear-out force: 23.3 kN

Model series: EZ

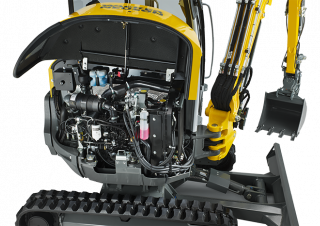

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 21 kW

Displacement: 1.642 l

Revolutions at max torque: 2400 rpm

No. of cylinders: 3

Emission level: Tier 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson EZ38 FAQ

When was the Wacker Neuson EZ38 manufactured?

The Wacker Neuson EZ38 was manufactured from 2014 to 2018.

How much does the Wacker Neuson EZ38 weigh?

The Wacker Neuson EZ38 weighs 4.1 tons.

What are the transport dimensions of the Wacker Neuson EZ38 mini excavator?

The Wacker Neuson EZ38 has a transport length of 4.8 meters, a transport width of 1.74 meters, and a transport height of 2.5 meters.

What are the undercarriage specifications of the Wacker Neuson EZ38 mini excavator?

The Wacker Neuson EZ38 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Wacker Neuson EZ38?

The Wacker Neuson EZ38 has a dredging depth of 3.11 meters and a maximum horizontal reach of 5.19 meters.

What is the tear-out force of the Wacker Neuson EZ38 mini excavator?

The Wacker Neuson EZ38 mini excavator has a tear-out force of 23.3 kN.

What is the bucket width of the Wacker Neuson EZ38 mini excavator?

The Wacker Neuson EZ38 mini excavator has a bucket width of 0.7 meters.

What operator safety and support features does the Wacker Neuson EZ38 have?

The Wacker Neuson EZ38 is equipped with a canopy for driver protection.

How much is a Wacker Neuson EZ38 Mini excavator (2014u20132018) worth?

The residual value of the Wacker Neuson EZ38 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson EZ38 overview

Dimensions and weight

Hydraulic system
Duty pump	Double variable- & two-gear pump
Flow rate	40 l/min
Operating pressure for working and traction hydraulics	240 bar
Operating pressure Slewing gear	210 bar
Hydraulic oil tank	38.5 l
Undercarriage
Travel speed max.	4.3 km/h
Chain width	300 mm
Ground clearance	280 mm
Dozer Blade
Width	1	740 mm"
Height	345 mm
Stroke max.	above ground"	387 mm

			VDS
A,Height,"2,500 mm	2,568 mm"
B	Width of the cabin	990 mm	990 mm
B,Width of the revolving superstructure,"1,600 mm	1,600 mm"
B,Width of the undercarriage,"1,740 mm	1,740 mm"
C,Transport length (short dipper arm),"4,799 mm	4,747 mm"
C,Transport length (long dipper arm),"4,823 mm	4,792 mm"
D,Digging depth max. Max. (short dipper arm),"3,107 mm	3,034 mm"
D,Digging depth max. Max. (long dipper arm),"3,357 mm	3,284 mm"
E,Insertion depth Max. vertical (short dipper arm),"2,385 mm	2,311 mm"

E,Insertion depth Max. vertical (long dipper arm),"2,625 mm	2,551 mm"
F,Insertion height Max. (short dipper arm),"4,529 mm	4,597 mm"
F,Insertion height Max. (long dipper arm),"4,658 mm	4,727 mm"
G,Dump height max. Max. (short dipper arm),"3,317 mm	3,387 mm"
G,Dump height max. Max. (long dipper arm),"3,446 mm	3,516 mm"
H,Digging radius max. Max. (short dipper arm),"5,300 mm	5,297 mm"
H,Digging radius max. Max. (long dipper arm),"5,535 mm	5,532 mm"
I,Range Max. ground coverage (short dipper arm),"5,192 mm	5,134 mm"
I,Range Max. ground coverage (long dipper arm),"5,431 mm	5,348 mm"
J	Rear swivel radius	870 mm	870 mm
K	Arm displacement Max. boom offset to center of bucket	right side"	740 mm	740 mm
K	Arm displacement Max. boom offset to center of bucket	left side"	589 mm	589 mm
L	Lift height Max. of dozer blade above subgrade	387 mm	377 mm
M	Scraping depth Max. of the dozer blade below subgrade	450 mm	460 mm
N,Length,"2,056 mm	2,056 mm"
O	Turning angle Max. of the arm system to the right	54.7 °	54.7 °
P	Turning angle Max. of the arm system to the left	70 °	70 °
--	Distance of bucket dozer blade (short dipper arm)	261 mm	238 mm
--	Distance of bucket dozer blade (long dipper arm)	123 mm	101 mm
R,Boom slewing radius center,"2,377 mm	2,377 mm"
--,Boom slewing radius right,"2,219 mm	2,219 mm"
--,Boom slewing radius left,"1,983 mm	1,983 mm"
--,Length Total traveling gear,"2,056 mm	2,056 mm"
--,Width Dozer blade,"1,740 mm	1,740 mm"

Tables

Stroke max.	below ground"	450 mm
Sound level
Sound level (LwA) acc. to 2000/14/EC	95 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394	77 dB(A)
