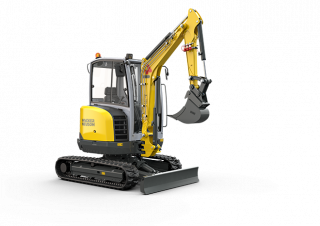

EZ26-2 Wacker Neuson excavator specs & dimensions (2023 - 2026)

Weight: 2.22t – Transport length: 4.199m – Transport width: 1.55m – Transport height: 2.412m – Track width: 300mm – Driver protect…

Weight: 2.22t – Transport length: 4.199m – Transport width: 1.55m – Transport height: 2.412m – Track width: 300mm – Driver protection: Kb

Check out detailed specifications, information and technical data for Wacker Neuson EZ26-2 excavator manufactured between 2023 - 2026. Get more in-depth insight with Wacker Neuson EZ26-2 digger specifications. See information, like: Weight: 2.22t – Transport length: 4.199m – Transport width: 1.55m – Transport height: 2.412m – Track width: 300mm – Driver protection: Kb and more.

Mini Excavators Wacker Neuson EZ26-2

Visit Wacker Neuson live at

Technical specs - EZ26-2 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.22 t
Transport length
4.199 m
Transport width
1.55 m
Transport height
2.412 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.806 m
Dredging depth
2.744 m
Tear-out force
15.3 kN
Model series
EZ
Engine manuf.
Yanmar
Engine type
3TNV80F
Engine power
14.6 kW
Displacement
1.266 l
Revolutions at max torque
2400 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Wacker Neuson EZ26-2 FAQ

When was the Wacker Neuson EZ26-2 manufactured?

The Wacker Neuson EZ26-2 was first produced in 2023.

How much does the Wacker Neuson EZ26-2 weigh?

The Wacker Neuson EZ26-2 weighs 2.22 tons.

What are the transport dimensions of the Wacker Neuson EZ26-2 mini excavator?

The Wacker Neuson EZ26-2 has a transport length of 4.2 meters, a transport width of 1.55 meters, and a transport height of 2.41 meters.

What is the track width of the Wacker Neuson EZ26-2 mini excavator?

The Wacker Neuson EZ26-2 mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Wacker Neuson EZ26-2 mini excavator?

The Wacker Neuson EZ26-2 has a dredging depth of 2.744 meters and a maximum horizontal reach of 4.806 meters.

What is the tear-out force of the Wacker Neuson EZ26-2 mini excavator?

The Wacker Neuson EZ26-2 mini excavator has a tear-out force of 15.3 kN.

What operator safety features does the Wacker Neuson EZ26-2 have?

The Wacker Neuson EZ26-2 has a cabin for driver protection.

How much is a Wacker Neuson EZ26-2 Mini excavator (2023u20132025) worth?

The residual value of the Wacker Neuson EZ26-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
