EZ26 Wacker Neuson excavator specs & dimensions (2020 - 2023)

Wacker Neuson EZ26 is a mini excavator manufactured since 2020, with a weight of 2.22 tons. It features a track width of 300 mm, a…

Wacker Neuson EZ26 is a mini excavator manufactured since 2020, with a weight of 2.22 tons. It features a track width of 300 mm, a transport length of 4.266 meters, a transport width of 1.57 meters, and a transport height of 2.14 meters. The machine has a tear-out force of 15.3 kN, a dredging depth of 2.744 meters, and a maximum horizontal reach of 4.806 meters. It comes equipped with a blade and rubber tracks.

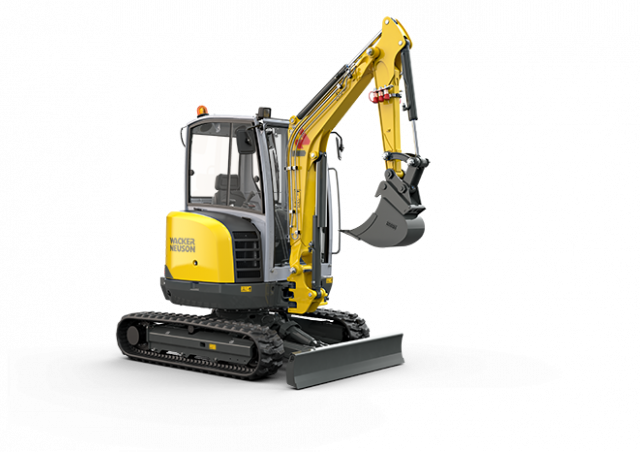

Mini Excavators Wacker Neuson EZ26

Visit Wacker Neuson live at

Technical specs - EZ26 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.22 t
Transport length
4.266 m
Transport width
1.57 m
Transport height
2.14 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.806 m
Dredging depth
2.744 m
Tear-out force
15.3 kN
Model series
EZ
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
15.8 kW
Displacement
1.116 l
Revolutions at max torque
2500 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson EZ26 FAQ

When was the Wacker Neuson EZ26 manufactured?

The Wacker Neuson EZ26 was manufactured from 2020 to 2023.

How much does the Wacker Neuson EZ26 weigh?

The Wacker Neuson EZ26 weighs 2.22 tons.

What are the transport dimensions of the Wacker Neuson EZ26 mini excavator?

The Wacker Neuson EZ26 has a transport length of 4.27 meters, a transport width of 1.57 meters, and a transport height of 2.14 meters.

What is the track width of the Wacker Neuson EZ26 mini excavator?

The Wacker Neuson EZ26 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Wacker Neuson EZ26?

The Wacker Neuson EZ26 has a dredging depth of 2.744 meters and a maximum horizontal reach of 4.806 meters.

What is the tear-out force of the Wacker Neuson EZ26 mini excavator?

The Wacker Neuson EZ26 mini excavator has a tear-out force of 15.3 kN.

What operator safety and support features does the Wacker Neuson EZ26 have?

The Wacker Neuson EZ26 provides operator safety through a protective cabin.

How much is a Wacker Neuson EZ26 Mini excavator (2020u20132023) worth?

The residual value of the Wacker Neuson EZ26 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson EZ26 overview

Dimensions and weight

mit VDS
AHöhe2.414 mm2.524 mm
BBreite Fahrerkabine970 mm970 mm
BBreite Oberwagen1.340 mm1.340 mm
BBreite Fahrwerk1.570 mm1.570 mm
CTransportlänge (kurzer LS )4.266 mm4.199 mm
CTransportlänge (langer LS )4.272 mm4.241 mm
DGrabtiefe max. max. (kurzer LS )2.544 mm2.418 mm
DGrabtiefe max. max. (langer LS )2.744 mm2.617 mm
EEinstechtiefe max. senkrecht (kurzer LS )1.962 mm1.845 mm
EEinstechtiefe max. senkrecht (langer LS )2.152 mm2.035 mm
FEinstechhöhe max. (kurzer LS )4.169 mm4.300 mm
FEinstechhöhe max. (langer LS )4.299 mm4.430 mm
GAusschütthöhe max. (kurzer LS )2.840 mm2.960 mm
GAusschütthöhe max. (langer LS )2.970 mm3.087 mm
HGrabradius max. (kurzer LS )4.613 mm4.614 mm
HGrabradius max. (langer LS )4.805 mm4.806 mm
IReichweite max. am Boden (kurzer LS )4.481 mm4.443 mm
IReichweite max. am Boden (langer LS )4.681 mm4.644 mm
JHeckschwenkradius759 mm759 mm
KAuslegerversetzung max. auf Mitte Löffel rechte Seite764 mm765 mm
KAuslegerversetzung max. auf Mitte Löffel linke Seite533 mm534 mm
LStapelhöhe max. Planierschild über Planum380 mm388 mm
MSchürftiefe max. Planierschild unter Planum419 mm411 mm
NLänge2.006 mm2.006 mm
OSchwenkwinkel max. Armsystem nach rechts50 °50 °
PSchwenkwinkel max. Armsystem nach links75 °75 °
QKettenbreite300 mm300 mm
--Abstand Löffel Planierschild (kurzer LS )354 mm326 mm
--Abstand Löffel Planierschild (langer LS )259 mm218 mm
RAuslegerschwenkradius mitte2.080 mm2.054 mm
--Auslegerschwenkradius rechts1.960 mm1.943 mm
--Auslegerschwenkradius links1.641 mm1.640 mm
--Länge Laufwerk2.006 mm2.021 mm
--Breite Planierschild1.570 mm1.570 mm
--Höhe Planierschild300 mm300 mm
LS = Löffelstiel

Tables

ArbeitspumpeDoppelverstell- & Doppelzahnradpumpe
Max. Förderleistung305 + 305 l/min"
Max. Förderleistung202 + 72 l/min"
Betriebsdruck für Arbeits- und Fahrhydraulik225 bar
Betriebsdruck Drehwerk206 bar
Hydrauliktank265 l"
Fahrwerk
Fahrgeschwindigkeit max.38 km/h"
Kettenbreite300 mm
Bodenfreiheit277 mm
Planierschild
Breite1.570 mm
Höhe290 mm
Hub max. über Planum"380 mm
Hub max. unter Planum"419 mm
Schallpegel
Schallpegel (LwA) nach 2000/14/EG93 dB(A)
Kabine - Schalldruckpegel LpA nach ISO 639479 dB(A)
