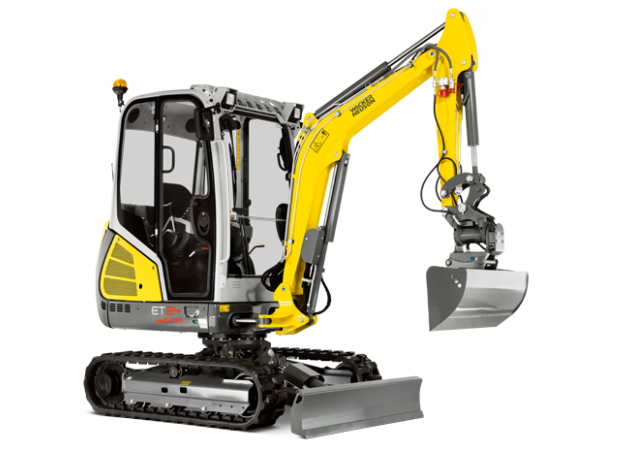

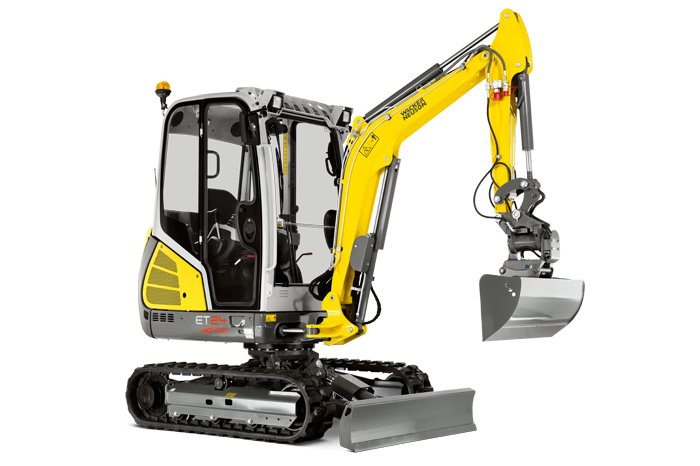

ET24 Wacker Neuson excavator specs & dimensions (2020 - 2026)

Wacker Neuson ET24 is a mini excavator manufactured since 2020, with a weight of 2.31 tons. It features a track width of 250 mm an…

Wacker Neuson ET24 is a mini excavator manufactured since 2020, with a weight of 2.31 tons. It features a track width of 250 mm and has transport dimensions of 4.03 meters in length, 1.44 meters in width, and 2.39 meters in height. The bucket width is 0.6 meters, and it comes equipped with a blade and rubber tracks.

Mini Excavators Wacker Neuson ET24

Visit Wacker Neuson live at

Technical specs - ET24 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.31 t
Transport length
4.03 m
Transport width
1.44 m
Transport height
2.39 m
Bucket width
0.6 m
Track width
250 mm
Driver protection
KbR
Max. Reach horizontal
4.22 m
Dredging depth
2.6 m
Tear-out force
18.8 kN
Model series
ET
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.8 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson ET24 FAQ

When was the Wacker Neuson ET24 manufactured?

The Wacker Neuson ET24 was first produced in 2020.

How much does the Wacker Neuson ET24 weigh?

The Wacker Neuson ET24 weighs 2.31 tons.

What are the transport dimensions of the Wacker Neuson ET24 mini excavator?

The Wacker Neuson ET24 has a transport length of 4.03 meters, a transport width of 1.44 meters, and a transport height of 2.39 meters.

What is the track width of the Wacker Neuson ET24's undercarriage?

The Wacker Neuson ET24 has a track width of 250 mm.

What are the dredging depth and maximum horizontal reach of the Wacker Neuson ET24?

The Wacker Neuson ET24 has a dredging depth of 2.6 meters and a maximum horizontal reach of 4.22 meters.

What is the tear-out force of the Wacker Neuson ET24, given that no power rating data is available?

The Wacker Neuson ET24 has a tear-out force of 18.8 kN.

What is the bucket width of the Wacker Neuson ET24 mini excavator?

The bucket width of the Wacker Neuson ET24 mini excavator is 0.6 meters.

What operator safety and support features does the Wacker Neuson ET24 have?

The Wacker Neuson ET24 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Wacker Neuson ET24 Mini excavator (2020u20132025) worth?

The residual value of the Wacker Neuson ET24 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson ET24 overview

Dimensions and weight

Duty pumpDouble variable pump with 2 gear pumps
Max. flow rate26.1 + 26.1 l/min
Max. flow rate19.4 + 6.4 l/min
Operating pressure for working and traction hydraulics240 bar
Operating pressure slewing gear150 bar
RPM / speed superstructure10 rpm
Hydraulic oil tank content19 l
Undercarriage
Travel speed max.4 km/h
Chain width250 mm
Ground clearance295 mm
Dozer Blade
Width1400 mm"
Height300 mm
Stroke standard dozer blade above ground300 mm
Stroke standard dozer blade below ground340 mm
Sound level
Sound level (LwA) acc. to 2000/14/EC93 dB(A)
VDS
A,Height,"2,392 mm2,472 mm"
BWidth superstructure990 mm990 mm
B,Width,"1,400 mm1,400 mm"
B,Width dozer blade,"1,400 mm1,400 mm"
C,Transport length,"4,022 mm3,980 mm"
D,Digging depth max. max. (short dipper stick),"2,402 mm2,323 mm"
D,Digging depth max. max. (long dipper stick),"2,602 mm2,523 mm"
E,"Insertion depth max. , vertikal (short dipper stick)1,562 mm1,482 mm"
E,"Insertion depth max., vertikal (long dipper stick)1,746 mm1,667 mm"
F,Insertion height max. (short dipper stick),"3,949 mm4,028 mm"
F,Insertion height max. (long dipper stick),"4,071 mm4,151 mm"
G,Dump height max. max. (short dipper stick),"2,748 mm2,827 mm"
G,Dump height max. max. (long dipper stick),"2,870 mm2,950 mm"
H,Digging radius max. max. (short dipper stick),"4,146 mm4,146 mm"
H,Digging radius max. max. (long dipper stick),"4,334 mm4,334 mm"
I,"Range max. ,on the ground (short dipper stick)4,020 mm3,995 mm"
I,"Range max.,on the ground (long dipper stick)4,216 mm4,204 mm"
J,Rear swivel radius min.,"1,169 mm1,169 mm"
KArm displacement max. to centre of bucket right side"516 mm516 mm
KArm displacement max. to centre of bucket left side"359 mm359 mm
LLift height max. of dozer blade above ground (short)"294 mm348 mm
MScraping depth max. of dozer blade below ground (short)"334 mm316 mm
N,Length Total crawler length (standard undercarriage),"1,838 mm1,838 mm"
--,Length Crawler length Sprocket wheel (standard undercarriage),"1,383 mm1,383 mm"
OTurning angle max. of boom system to the right48 °48 °
PTurning angle max. of boom system to the left77 °77 °
QChain width250 mm250 mm
R,Boom slewing radius centre,"1,666 mm1,666 mm"
--,Boom slewing radius right,"1,582 mm1,582 mm"
--,Boom slewing radius left max.,"1,356 mm1,356 mm"
--,Boom slewing radius left lock,"1,450 mm1,450 mm"
ZHeight dozer blade300 mm300 mm

Tables

Engine / MotorWater-cooled 3-cylinder diesel engine
Emission standards stage5
Displacement1116 cm³"
RPM / speed2200 rpm"
Engine performance acc. to ISO13.8 kW
Battery voltage44 Ah
Tank capacity24 l
