ET18 Wacker Neuson excavator specs & dimensions (2020 - 2026)

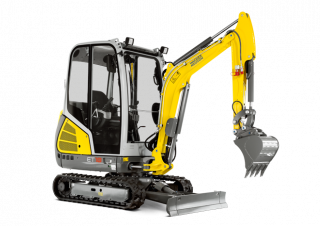

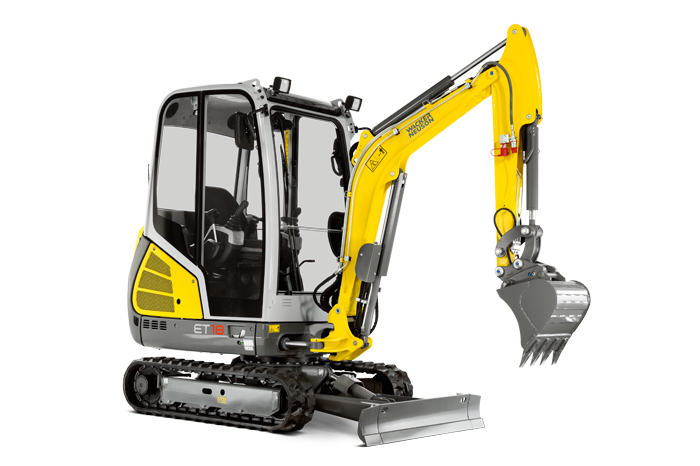

Wacker Neuson ET18 is a mini excavator manufactured since 2020, with a weight of 1.95 t. It features a track width of 230 mm, a tr…

Wacker Neuson ET18 is a mini excavator manufactured since 2020, with a weight of 1.95 t. It features a track width of 230 mm, a transport length of 3.85 m, a transport width of 0.99 m, and a transport height of 2.29 m. The dredging depth is 2.4 m, and it comes equipped with a blade.

Mini Excavators Wacker Neuson ET18

Visit Wacker Neuson live at

Technical specs - ET18 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.95 t
Transport length
3.85 m
Transport width
0.99 m
Transport height
2.29 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.89 m
Dredging depth
2.4 m
Tear-out force
11.2 kN
Model series
ET
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.8 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson ET18 FAQ

When was the Wacker Neuson ET18 manufactured?

The Wacker Neuson ET18 was first produced in 2020.

How much does the Wacker Neuson ET18 weigh?

The Wacker Neuson ET18 weighs 1.95 tons.

What are the transport dimensions of the Wacker Neuson ET18 mini excavator?

The Wacker Neuson ET18 has transport dimensions of 3.85 meters in length, 0.99 meters in width, and 2.29 meters in height.

What is the track width of the Wacker Neuson ET18's undercarriage?

The Wacker Neuson ET18 has a track width of 230 mm in its undercarriage.

What are the excavation performance specifications of the Wacker Neuson ET18?

The Wacker Neuson ET18 has a dredging depth of 2.4 meters and a maximum horizontal reach of 3.89 meters.

What is the tear-out force of the Wacker Neuson ET18?

The Wacker Neuson ET18 has a tear-out force of 11.2 kN.

What driver protection feature does the Wacker Neuson ET18 have?

The Wacker Neuson ET18 has a cabin for driver protection.

How much is a Wacker Neuson ET18 Mini excavator (2020u20132025) worth?

The residual value of the Wacker Neuson ET18 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
